Series BK

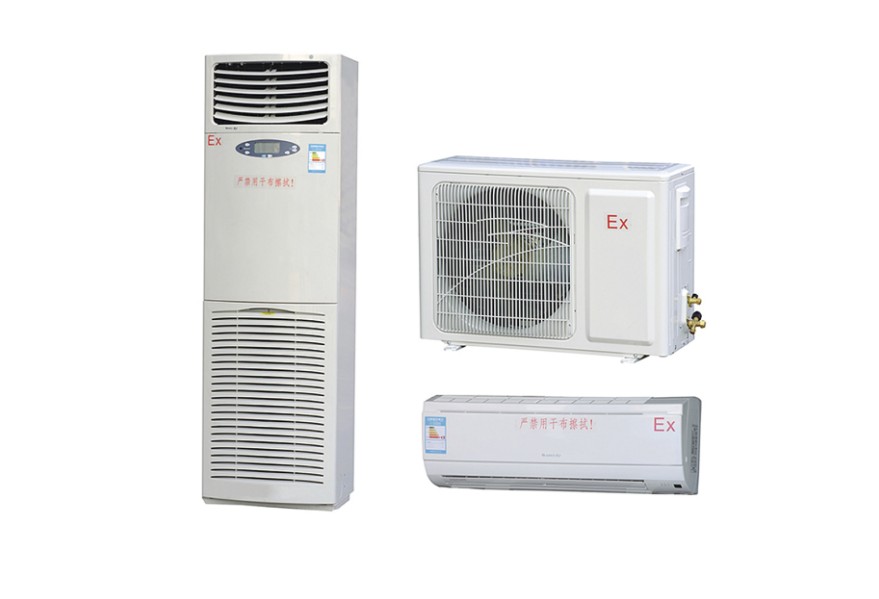

BK Series Explosion-proof Air Conditioner
Premium brand air conditioners rebuilt for classified areas: the unit is designed and manufactured to the GB3836 series, with power led into an explosion-proof control box first and then to the indoor and outdoor units. Cooling-only and cooling & heating types are available in window, split wall-mounted and split floor-standing structures, in two gas groups.
- Ex db eb ib mb IIB T4 Gb
- Ex db eb ib mb IIC T4 Gb
- Cooling-only or cooling & heating
- Window / wall / floor-standing
- AC 220 / 380 V
- Input power 1–10 P

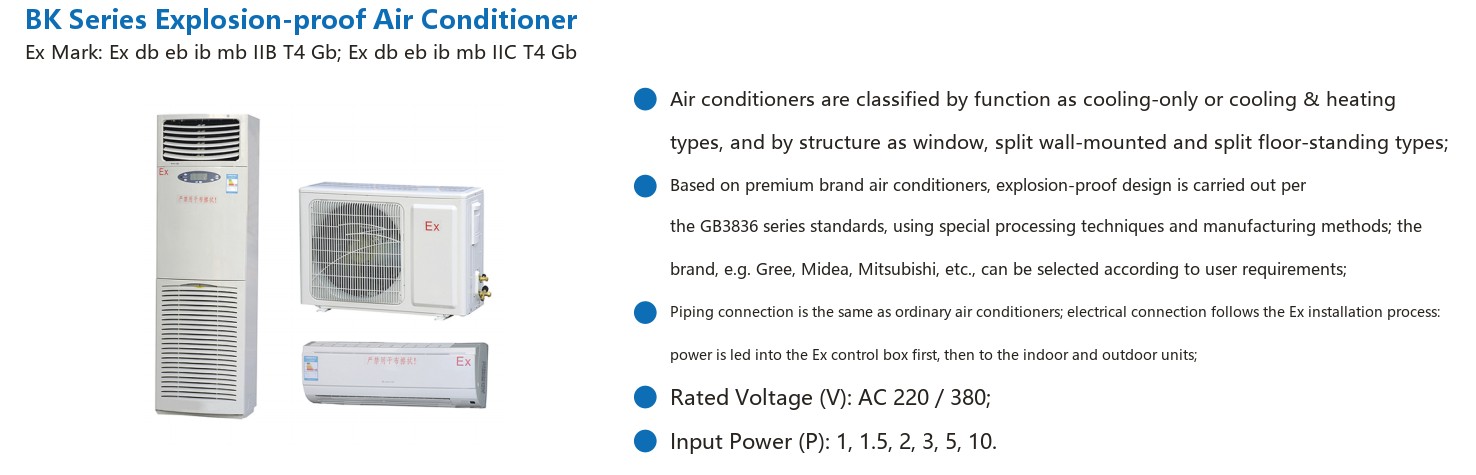

Technical data
| Parameter | Value |
|---|---|
| Series | BK |
| Ex marking | Ex db eb ib mb IIB T4 Gb; Ex db eb ib mb IIC T4 Gb |
| Function | Cooling-only, or cooling & heating |
| Structure | Window type, split wall-mounted, split floor-standing |
| Base unit | Premium brand air conditioner (Gree, Midea, Mitsubishi and others), selected to requirement |
| Design standard | Explosion-proof design carried out to the GB3836 series |
| Refrigerant piping | Same as ordinary air conditioners |
| Electrical connection | Power is led into the Ex control box first, then to the indoor and outdoor units |
| Rated voltage | AC 220 / 380 V |
| Input power (P) | 1 / 1.5 / 2 / 3 / 5 / 10 |
Features
- Built on premium brand units — the base air conditioner is a recognised brand such as Gree, Midea or Mitsubishi, selected according to your requirement.
- Explosion-proof design to GB3836 — the conversion is carried out with special processing techniques and manufacturing methods rather than by re-badging a standard unit.
- Cooling-only or cooling & heating — choose the function the room actually needs.
- Three structures — window type, split wall-mounted and split floor-standing, so the unit can follow the room rather than the other way round.
- Two gas groups — IIB T4 Gb and IIC T4 Gb markings are available, to match the area classification.
- Ex control box wiring — power is led into the explosion-proof control box first, and from there to the indoor and outdoor units.
- Standard refrigerant piping — piping connections are the same as for an ordinary air conditioner, so installation follows normal practice.
- Range of duties — rated voltages AC 220 V and 380 V, with input power from 1 P to 10 P.
Where the BK series is used
- Control rooms, switch rooms and instrument rooms inside a classified area
- Analyser and sample houses, where the room itself has to be kept within a temperature band
- Workshops, laboratories and operator shelters within the plant battery limit
- Rooms that need heating as well as cooling over the year, using the cooling & heating type
- Buildings where routing ductwork or relocating the equipment outside the hazardous area is not practical
Not sure which structure or duty fits the room?Send the room size and the required duty, the construction you prefer (window, split wall-mounted or split floor-standing), the supply voltage and the zone and gas group. We will confirm the closest configuration and the explosion-proof arrangement around it.
The explosion-proof control box that feeds the unit is part of the electrical apparatus range. Cooling and heating equipment for classified spaces also appears in the air conditioner range, alongside explosion-proof fans for ventilation.
