Model ZBD190
ZBD190 Explosion-proof High-efficiency Energy-saving LED Light

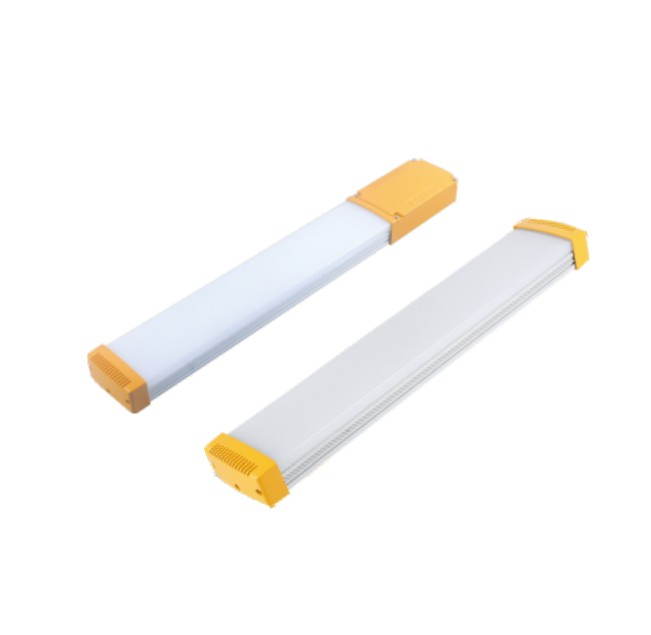

A slim linear LED luminaire in three lengths, from 577 mm to 1018 mm, for the places where a floodlight is the wrong shape: corridors, cable tunnels, workshops and the underside of structures. The body is a narrow aluminium extrusion with a diffuser and yellow end caps, and the entry is a single M20 gland.
- 20 W – 70 W
- Three housing types
- Ex db IIC T6 Gb
- Ex tb IIIC T80°C Db
- AC 220 V / 50 Hz
- M20 cable entry
Technical data
| Parameter | Value |
|---|---|
| Model | ZBD190 |
| Rated voltage | AC 220 V / 50 Hz |
| Rated power | 20 W – 70 W |
| Ex marking | Ex db IIC T6 Gb; Ex tb IIIC T80°C Db |
| Cable entry thread | M20 |

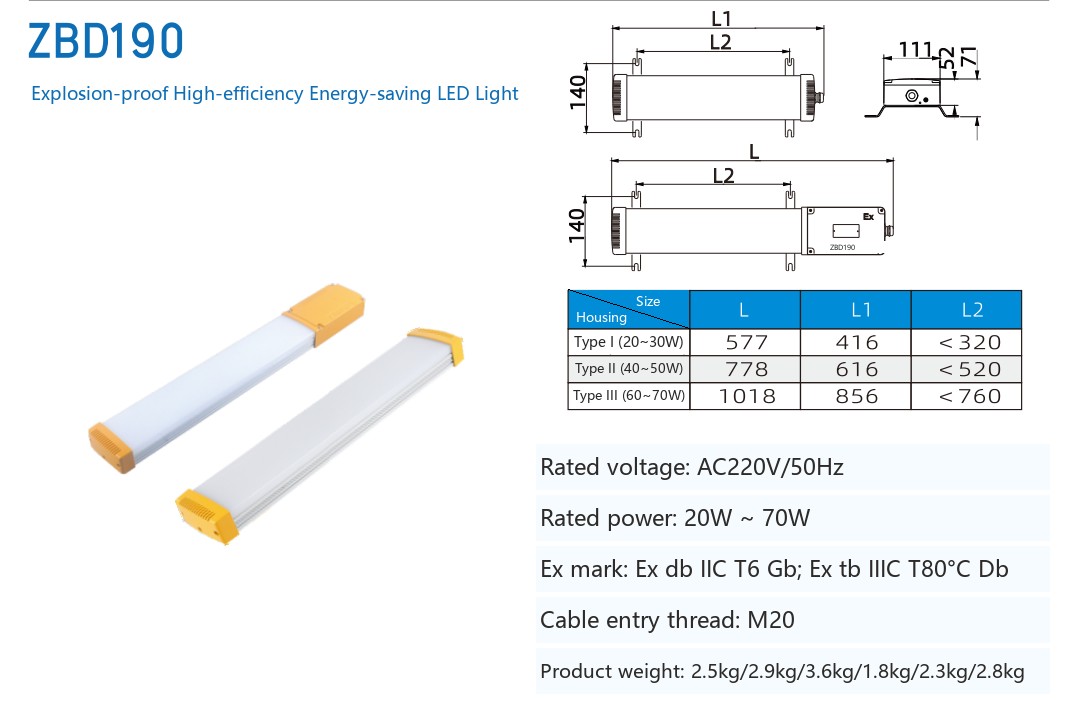

| Section | 140 mm body width; 111 / 52 / 17 mm details as drawn |
| Housing Type I (20–30 W) | L 577 mm · L1 416 mm · L2 < 320 mm |
| Housing Type II (40–50 W) | L 778 mm · L1 616 mm · L2 < 520 mm |
| Housing Type III (60–70 W) | L 1018 mm · L1 856 mm · L2 < 760 mm |
| Weight | 2.5 / 2.9 / 3.6 / 1.8 / 2.3 / 2.8 kg (as listed on the sheet) |
Features
- Linear, not flood — a long, narrow body spreads light along a corridor or tunnel instead of concentrating it on one spot.
- Three lengths — 577 mm, 778 mm and 1018 mm, covering 20–30 W, 40–50 W and 60–70 W duties.
- Slim extrusion — the 140 mm body keeps the luminaire close to the surface it is mounted on, which matters in tunnels and low service voids.
- Diffuser cover — the LED strip sits behind a diffuser, giving even light without the glare of an exposed emitter.
- Gas and dust marking — Ex db IIC T6 Gb and Ex tb IIIC T80°C Db on the same luminaire.
- M20 cable entry — closed with the matching certified gland.
- AC 220 V / 50 Hz — standard single-phase supply, with mounting brackets at both ends as shown in the drawing.
Where the ZBD190 is used
- Corridors, walkways and cable tunnels, where the light has to follow the route rather than flood it
- Workshops and maintenance bays that need even light across a bench or a work area
- Under-deck and under-structure positions with limited headroom
- Stairwells, shafts and service voids between units
- Dust-rated areas, using the Ex tb IIIC T80°C Db marking
Which length fits the run?Tell us the length of the space, the mounting height and whether the mounting is to be surface, ceiling or suspended, plus the zone and gas or dust group. We will confirm the housing type and the exact marking.
Part of the explosion-proof lighting range, alongside the ZBD154 floodlight and the ZBD124 maintenance-free light. For road lighting rather than linear lighting, see the ZBD111L road light.
