ZJW7106 Multifunctional Explosion-Proof Portable Work Light
A cylindrical portable work light with both a spotlight and a reflector: 2 × 12 W spot and 2 × 6 W flood at 22.2 V on a 2 500 mAh battery, more than ten hours on spot working light, φ70 × 190 mm and 1.2 ± 0.1 kg.
- spot 2×12 W
- flood 2×6 W
- 2 500 mAh
- spot >10 h
- 1.2±0.1 kg
- Rated voltage — 22.2V
- Rated power — Spotlight 2×12W / Flood 2×6W
- Rated capacity — 2500mAh
- Discharge time — Spotlight Working Light >10h
- Dimensions — φ70×190mm
- Weight — 1.2±0.1kg

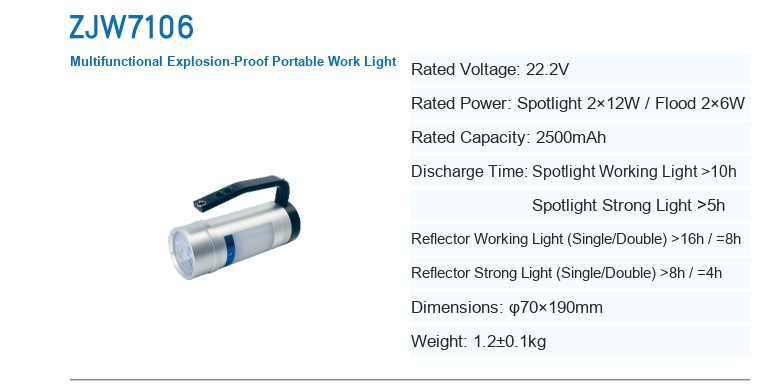

Technical data
| Parameter | Value |
|---|---|
| Rated voltage | 22.2V |
| Rated power | Spotlight 2×12W / Flood 2×6W |
| Rated capacity | 2500mAh |
| Discharge time | Spotlight Working Light >10h |
| Spotlight Strong Light >5h | |
| Reflector Working Light (Single/Double) >16h / =8h | |
| Reflector Strong Light (Single/Double) >8h / =4h | |
| Dimensions | φ70×190mm |
| Weight | 1.2±0.1kg |
Features
- Rated power Spotlight 2×12W / Flood 2×6W.
- Rechargeable: a 2500mAh battery, a 22.2V supply, Spotlight Working Light >10h per charge.
- Dimensions φ70×190mm, 1.2±0.1kg.
- Spotlight and reflector can be used one at a time or together.
Where it is used
Temporary and portable lighting tasks in industrial plants: inspection rounds, shutdown and turnaround work, tank and vessel cleaning, cable and pipe routing, spill response, and any position where a fixed luminaire is not practical.
Need a quotation for the ZJW7106?
Tell us the area classification, how long the light has to run on one charge and how it will be mounted, and our engineers will confirm the configuration and prepare the quotation for you.
The manufacturer’s sheet for this model does not state an Ex marking. Portable work lights for hazardous areas are specified against the area classification on site — send us the zone, the gas or dust group and the temperature class you need, and our engineers will confirm the marking and the correct model before you order. The sheet for this model does not state a protection (IP) grade or a charging time — please confirm both with our engineers. Technical data is reproduced from the manufacturer’s sheet for model ZJW7106. Dimensions are given in millimetres unless stated otherwise.
