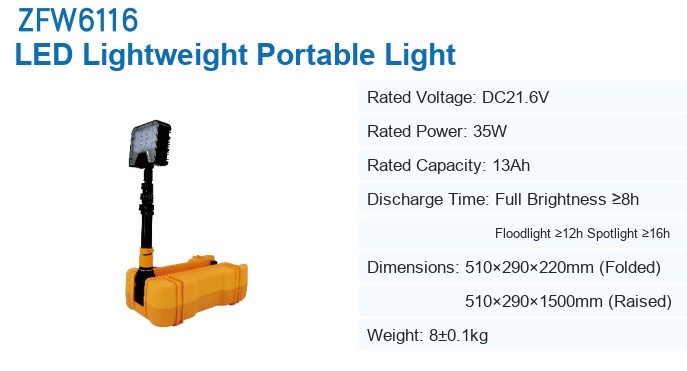

ZFW6116 LED Lightweight Portable Light
A compact rechargeable light with a folding mast — 510 × 290 × 220 mm folded and 510 × 290 × 1500 mm raised. 35 W at DC 21.6 V on a 13 Ah battery: at least 8 h at full brightness, 12 h on flood and 16 h on spot — 8 kg.
- 35 W
- DC 21.6 V
- 13 Ah
- ≥8 h full brightness
- 8±0.1 kg
- Rated voltage — DC21.6V
- Rated power — 35W
- Rated capacity — 13Ah
- Discharge time — Full Brightness ≥8h
- Dimensions — 510×290×220mm (Folded)
- Weight — 8±0.1kg
Technical data
| Parameter | Value |
|---|---|
| Rated voltage | DC21.6V |
| Rated power | 35W |
| Rated capacity | 13Ah |
| Discharge time | Full Brightness ≥8h |
| Floodlight ≥12h Spotlight ≥16h | |
| Dimensions | 510×290×220mm (Folded) |
| 510×290×1500mm (Raised) | |
| Weight | 8±0.1kg |
Features
- Rated power 35W.
- Rechargeable: 13Ah battery on a DC21.6V supply — Full Brightness at least 8h per charge.
- Dimensions 510×290×220mm (Folded), 8±0.1kg.
- Folding mast: 220 mm high when folded, 1 500 mm when raised, on a flat base.
Where it is used
Temporary and portable lighting tasks in industrial plants: inspection rounds, shutdown and turnaround work, tank and vessel cleaning, cable and pipe routing, spill response, and any position where a fixed luminaire is not practical.
Need a quotation for the ZFW6116?
Tell us the area classification, how long the light has to run on one charge and how it will be mounted, and our engineers will confirm the configuration and prepare the quotation for you.
More in this series
Other models in the same range, so you can compare running times, mounting and protection grades side by side.
The manufacturer’s sheet for this model does not state an Ex marking. Portable work lights for hazardous areas are specified against the area classification on site — send us the zone, the gas or dust group and the temperature class you need, and our engineers will confirm the marking and the correct model before you order. The sheet for this model does not state a protection (IP) grade or a charging time — please confirm both with our engineers. Technical data is reproduced from the manufacturer’s sheet for model ZFW6116. Dimensions are given in millimetres unless stated otherwise.
