Model ZBD127
ZBD127 Explosion-Proof LED Light
A round explosion-proof LED light for Zone 1 and Zone 2 gas atmospheres and Zone 21 / Zone 22 combustible dust areas. The housing carries a white globe and a bolted top bracket. Rated 30 W – 50 W at AC 220 V / 50 Hz with a G3/4" cable inlet.
- Ex db IIC T6 Gb
- Ex tb IIIC T80°C Db
- 30–50 W
- AC 220 V / 50 Hz
- G3/4" cable inlet
- Ex markingEx db IIC T6 Gb; Ex tb IIIC T80°C Db
- Rated power30 W – 50 W
- Rated voltageAC 220 V / 50 Hz
- Cable inlet threadG3/4"
- Globe diameterØ170 mm
- Net weight3 kg
Technical data
| Parameter | Value |
|---|---|
| Model | ZBD127 |
| Rated voltage | AC 220 V / 50 Hz |
| Rated power | 30 W – 50 W |
| Ex marking | Ex db IIC T6 Gb; Ex tb IIIC T80°C Db |
| Cable inlet thread | G3/4" |
| Globe diameter | Ø170 mm |
| Overall height | 273 mm (222 mm without the top bracket) |
| Net weight | 3 kg |
| Type of protection | Flameproof (Ex db); dust ignition protection (Ex tb) |
| Gas group / temperature class | IIC / T6 |
| Light source | LED |
| Globe | White globe, bolted retaining frame |
| Mounting | Bolted top bracket |

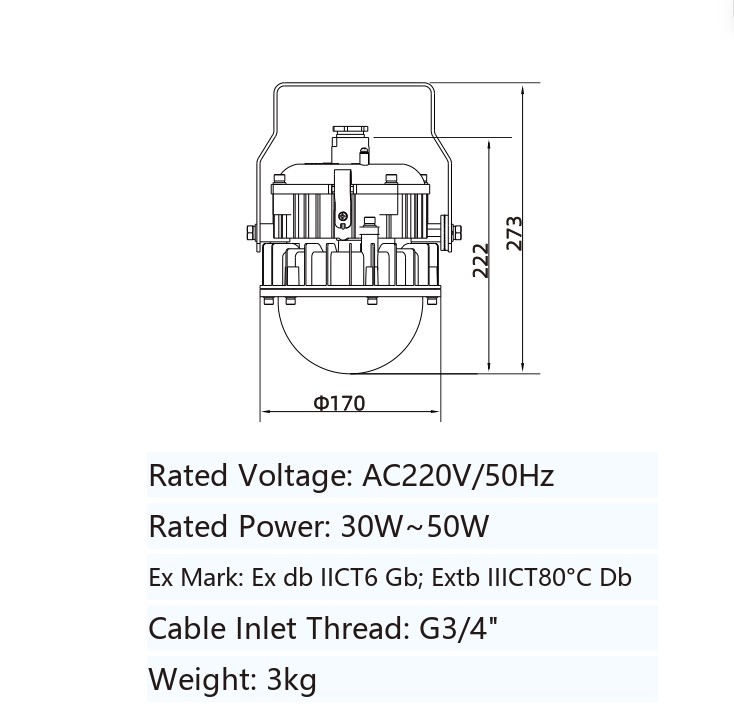

Dimensions
| Globe diameter | Overall height | Height without top bracket | Net weight | |
|---|---|---|---|---|
| ZBD127 | Ø170 | 273 | 222 | 3 kg |
Features
- Ex db flameproof protection marked for gas group IIC at temperature class T6 — suitable for Zone 1 and Zone 2 gas atmospheres.
- Ex tb IIIC T80°C Db dust ignition protection for Zone 21 and Zone 22 combustible dust areas.
- Round housing with a white globe and a bolted retaining frame.
- Bolted top bracket for hanging or fixture mounting.
- Compact 30 W – 50 W LED rating.
- Rated for AC 220 V / 50 Hz supplies.
- G3/4" cable inlet thread.
- Yellow high-visibility finish for easy identification in plant areas.
Applications
Because the ZBD127 carries both gas (Ex db IIC T6 Gb) and dust (Ex tb IIIC T80°C Db) protection, it is used in hazardous areas such as:
- Petrochemical plants and refineries
- Oil and gas processing, pumping and metering stations
- Chemical, pharmaceutical and coating works
- Paint, solvent and flammable-liquid stores
- Loading bays, tank farms and utility areas inside classified zones
- Dust-handling plants such as grain, wood, coal and metal powder processing
Need a quotation for the ZBD127? Tell us your area classification, the wattage you need and how the light will be mounted, and our engineers will confirm the configuration and prepare the quotation for you.
Technical data is reproduced from the manufacturer’s product sheet for model ZBD127. Dimensions are given in millimetres. Please confirm the final configuration with our engineers before ordering.
