Home › Products › Mobile & Portable Lighting › ZIW5130
Product video — ZIW5130 mini explosion-proof headlamp35 seconds

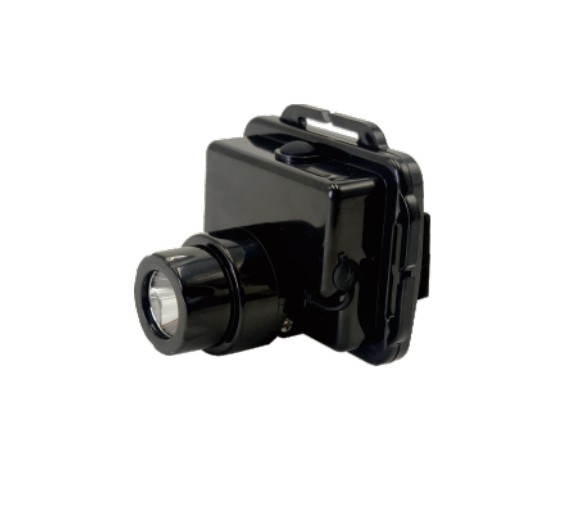

ZIW5130 Mini Explosion-Proof Headlamp
A 3 W mini headlamp for helmet mounting, running on a 2000 mAh battery that gives 6 hours on strong light and 12 hours on working light from one charge. Rated IP65 and weighing 95 g, it is built for inspection, maintenance and emergency work in flammable and explosive sites, and recharges in 8 hours or less from a DC 3.7 V supply.
- 3 W LED
- DC 3.7 V / 2000 mAh
- 6 h strong / 12 h working
- IP65
- 95 ± 5 g
- 65 × 80 × 65 mm
- Rated voltage — DC 3.7 V
- Rated power — 3 W
- Rated capacity — 2000 mAh
- Discharge time — 6 h (strong light) / 12 h (working light)
- Charging time — ≤ 8 h
- Protection grade — IP65
- Dimensions — 65 × 80 × 65 mm
- Weight — 95 ± 5 g

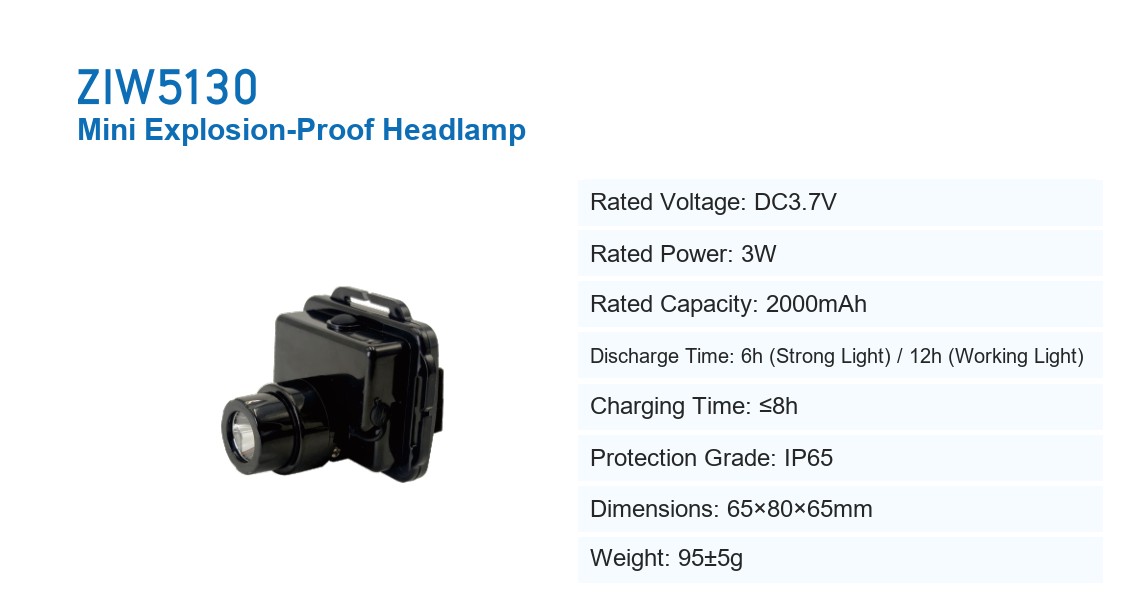

Technical data
| Parameter | Value |
|---|---|
| Model | ZIW5130 |
| Product type | Battery-powered LED headlamp for helmet mounting |
| Rated voltage | DC 3.7 V |
| Rated power | 3 W |
| Rated capacity | 2000 mAh |
| Discharge time | 6 h (strong light) / 12 h (working light) |
| Charging time | ≤ 8 h |
| Protection grade | IP65 |
| Dimensions | 65 × 80 × 65 mm |
| Weight | 95 ± 5 g |
Features
- 3 W LED on a 2000 mAh battery — 6 hours on strong light or 12 hours on working light from a single charge.
- Charges in 8 hours or less on a DC 3.7 V supply, so one shift of use fits inside one overnight charge.
- IP65 — dust-tight and protected against water jets.
- 95 g, and only 65 × 80 × 65 mm — small enough to wear through a full shift without noticing it.
- Three light modes — strong, working and warning light.
- Adjustable beam angle — aim the beam where the work is rather than where the helmet points.
- Low-battery auto reminder, so the lamp is not discovered flat at the wrong moment.
- Ergonomic head strap for helmet mounting, leaving both hands free.
Applications
The headlamp is worn on a safety helmet, so both hands stay free — it is used for:
- Inspection rounds and maintenance work in flammable and explosive sites
- Helmet-mounted lighting where both hands must stay free
- Emergency and escape lighting on foot
- Confined spaces, tanks and vessels
- Shutdown and utility work where a trailing cable is not practical
Need a quotation for the ZIW5130?
Tell us how many units you need, whether the lamps are for your own teams or for resale, and the charging configuration you want, and we will prepare the quotation for you.
More in this series
Other models in the same range, so you can compare running times, mounting and protection grades side by side.
Technical data is reproduced from the manufacturer’s product sheet for model ZIW5130. The product sheet does not state an Ex marking for this model, so none is quoted here; please ask our engineers if you need the certification for a specific area classification.
