Series NGD
NGD Series Explosion-Proof Flexible Conduit

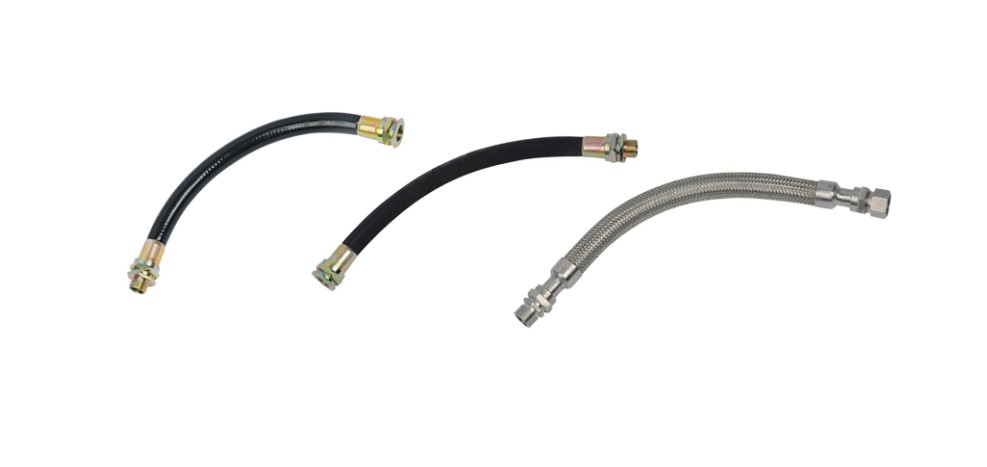

Explosion-proof flexible conduit is available with a rubber sheath, a steel-wire braided sheath and a 304 stainless steel sheath. Lengths and thread specifications can be customised. The conduit is used for motor connections, vibrating equipment and panel-to-field wiring in Zone 1 and Zone 2 installations.
- Rubber sheath
- Steel-wire braided sheath
- 304 stainless steel sheath
- M20 – M115 threads
- Lengths & threads customisable
- Sheath optionsRubber / steel-wire braided / 304 stainless steel
- Joint threadM20×1.5 – M115×2 · NPT 1/2" – 4" · G 1/2" – 4"
- Pipe diameter13 mm – 85 mm
- Standard lengths500 mm / 700 mm / 1000 mm
- Min. bending radius80 mm – 500 mm
- CustomisationLengths and thread specifications available on request
Sheath options
Explosion-proof flexible conduit is available with a rubber sheath, a steel-wire braided sheath and a 304 stainless steel sheath. Lengths and thread specifications can be customised to suit the installation.
- Rubber sheath — a rubber outer jacket over the conduit core.
- Steel-wire braided sheath — a steel-wire braid over the conduit for extra mechanical protection.
- 304 stainless steel sheath — a 304 stainless steel outer sheath, which is the grade normally selected where corrosion resistance is required.
- Custom lengths and threads — lengths and thread specifications can be manufactured to order.
Technical data
| Parameter | Value |
|---|---|
| Series | NGD |
| Sheath options | Rubber sheath; steel-wire braided sheath; 304 stainless steel sheath |
| Joint thread — metric | M20×1.5 to M115×2 |
| Joint thread — NPT | 1/2" to 4" |
| Joint thread — G (BSPP) | 1/2" to 4" |
| Pipe diameter | 13 mm to 85 mm |
| Standard lengths | 500 mm / 700 mm / 1000 mm |
| Minimum bending radius | 80 mm to 500 mm (depends on thread size) |
| Customisation | Lengths and thread specifications can be customised |

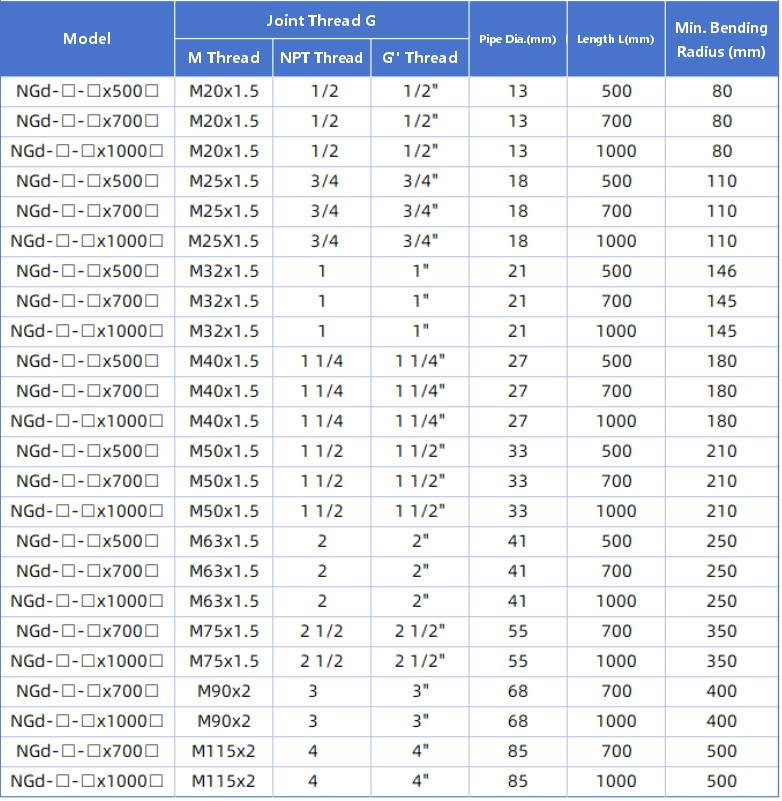

Model range and dimensions
| Model | M thread | NPT thread | G" thread | Pipe dia. (mm) | Length (mm) | Min. bending radius (mm) |
|---|---|---|---|---|---|---|
| NGD-□□-□□×500□ | M20x1.5 | 1/2 | 1/2" | 13 | 500 | 80 |
| NGD-□□-□□×700□ | M20x1.5 | 1/2 | 1/2" | 13 | 700 | 80 |
| NGD-□□-□□×1000□ | M20x1.5 | 1/2 | 1/2" | 13 | 1000 | 80 |
| NGD-□□-□□×500□ | M25x1.5 | 3/4 | 3/4" | 18 | 500 | 110 |
| NGD-□□-□□×700□ | M25x1.5 | 3/4 | 3/4" | 18 | 700 | 110 |
| NGD-□□-□□×1000□ | M25x1.5 | 3/4 | 3/4" | 18 | 1000 | 110 |
| NGD-□□-□□×500□ | M32x1.5 | 1 | 1" | 21 | 500 | 146 |
| NGD-□□-□□×700□ | M32x1.5 | 1 | 1" | 21 | 700 | 145 |
| NGD-□□-□□×1000□ | M32x1.5 | 1 | 1" | 21 | 1000 | 145 |
| NGD-□□-□□×500□ | M40x1.5 | 1 1/4 | 1 1/4" | 27 | 500 | 180 |
| NGD-□□-□□×700□ | M40x1.5 | 1 1/4 | 1 1/4" | 27 | 700 | 180 |
| NGD-□□-□□×1000□ | M40x1.5 | 1 1/4 | 1 1/4" | 27 | 1000 | 180 |
| NGD-□□-□□×500□ | M50x1.5 | 1 1/2 | 1 1/2" | 33 | 500 | 210 |
| NGD-□□-□□×700□ | M50x1.5 | 1 1/2 | 1 1/2" | 33 | 700 | 210 |
| NGD-□□-□□×1000□ | M50x1.5 | 1 1/2 | 1 1/2" | 33 | 1000 | 210 |
| NGD-□□-□□×500□ | M63x1.5 | 2 | 2" | 41 | 500 | 250 |
| NGD-□□-□□×700□ | M63x1.5 | 2 | 2" | 41 | 700 | 250 |
| NGD-□□-□□×1000□ | M63x1.5 | 2 | 2" | 41 | 1000 | 250 |
| NGD-□□-□□×700□ | M75x1.5 | 2 1/2 | 2 1/2" | 55 | 700 | 350 |
| NGD-□□-□□×1000□ | M75x1.5 | 2 1/2 | 2 1/2" | 55 | 1000 | 350 |
| NGD-□□-□□×700□ | M90x2 | 3 | 3" | 68 | 700 | 400 |
| NGD-□□-□□×1000□ | M90x2 | 3 | 3" | 68 | 1000 | 400 |
| NGD-□□-□□×700□ | M115x2 | 4 | 4" | 85 | 700 | 500 |
| NGD-□□-□□×1000□ | M115x2 | 4 | 4" | 85 | 1000 | 500 |
Features
- Three sheath options — rubber, steel-wire braided and 304 stainless steel.
- Joint threads from M20×1.5 to M115×2, with NPT and G (BSPP) equivalents from 1/2" to 4".
- Standard lengths of 500 mm, 700 mm and 1000 mm.
- Lengths and thread specifications can be customised.
- Minimum bending radius from 80 mm to 500 mm depending on thread size.
- For motor connections, vibrating equipment and panel-to-field wiring.
- Threaded end fittings available to match the conduit size.
Applications
- Motor and pump connections in classified areas
- Vibrating and moving equipment
- Panel-to-field and junction box wiring
- Petrochemical plants and refineries
- Chemical, pharmaceutical and coating works
- Dust-handling plants such as grain, wood, coal and metal powder processing
Need the NGD conduit in a specific length or thread? Tell us the sheath type, the joint thread and the length you need, and our engineers will confirm the model code and prepare the quotation for you.
Technical data is reproduced from the manufacturer’s product sheet for the NGD series. Dimensions are given in millimetres. Please confirm the final configuration with our engineers before ordering.
