Model ZBD140
ZBD140 Explosion-Proof LED Light
A round explosion-proof LED light for Zone 1 and Zone 2 gas atmospheres and Zone 21 / Zone 22 combustible dust areas. The finned housing carries a flat round face and a bolted mounting bracket. Three housing sizes cover 100 W, 150 W and 240 W within an 80 W – 240 W rated power range.
- Ex db eb mb IIC T6 Gb
- Ex tb IIIC T80°C Db
- 80–240 W
- AC 220 V / 50 Hz
- G3/4" cable inlet
- Ex markingEx db eb mb IIC T6 Gb; Ex tb IIIC T80°C Db
- Rated power80 W – 240 W
- Rated voltageAC 220 V / 50 Hz
- Cable inlet threadG3/4"
- Housing typesI / II / III — 100 W, 150 W, 240 W
- Net weight5 kg / 7.8 kg / 9.5 kg
Technical data
| Parameter | Value |
|---|---|
| Model | ZBD140 |
| Rated voltage | AC 220 V / 50 Hz |
| Rated power | 80 W – 240 W |
| Ex marking | Ex db eb mb IIC T6 Gb; Ex tb IIIC T80°C Db |
| Cable inlet thread | G3/4" |
| Housing types | I (100 W), II (150 W), III (240 W) |
| Net weight | 5 kg / 7.8 kg / 9.5 kg |
| Type of protection | Flameproof (Ex db) combined with increased safety (Ex eb) and encapsulation (Ex mb); dust ignition protection (Ex tb) |
| Gas group / temperature class | IIC / T6 |
| Light source | LED |
| Face | Flat round face, bolted retaining frame |
| Mounting | Bolted mounting bracket |

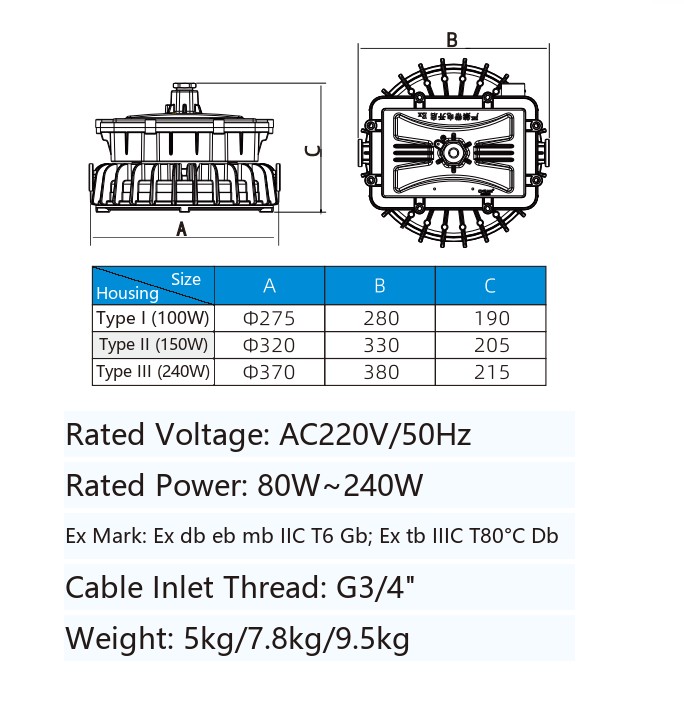

Housing types and dimensions
| Housing type | Power | A (diameter) | B | C | Net weight |
|---|---|---|---|---|---|
| Type I | 100 W | Ø275 | 280 | 190 | 5 kg |
| Type II | 150 W | Ø320 | 330 | 205 | 7.8 kg |
| Type III | 240 W | Ø370 | 380 | 215 | 9.5 kg |
Features
- Ex db flameproof protection combined with Ex eb increased safety and Ex mb encapsulation, marked for gas group IIC at temperature class T6 — suitable for Zone 1 and Zone 2 gas atmospheres.
- Ex tb IIIC T80°C Db dust ignition protection for Zone 21 and Zone 22 combustible dust areas.
- Finned round housing with a flat round face held by a bolted retaining frame.
- Bolted mounting bracket, so the unit can be aimed after installation.
- Three housing sizes covering 100 W, 150 W and 240 W within an 80 W – 240 W rated power range.
- Rated for AC 220 V / 50 Hz supplies.
- G3/4" cable inlet thread.
- Yellow high-visibility finish for easy identification in plant areas.
Applications
Because the ZBD140 carries both gas (Ex db eb mb IIC T6 Gb) and dust (Ex tb IIIC T80°C Db) protection, it is used in hazardous areas such as:
- Petrochemical plants and refineries
- Oil and gas processing, pumping and metering stations
- Chemical, pharmaceutical and coating works
- Paint, solvent and flammable-liquid stores
- Loading bays, tank farms and utility areas inside classified zones
- Dust-handling plants such as grain, wood, coal and metal powder processing
Need a quotation for the ZBD140? Tell us your area classification, the wattage you need and how the fixture will be mounted, and our engineers will confirm the right housing type and prepare the quotation for you.
Technical data is reproduced from the manufacturer’s product sheet for model ZBD140. Dimensions are given in millimetres. Please confirm the final configuration with our engineers before ordering.
