ZFW6117 LED Explosion-Proof Portable Work Light
A portable 50 W work light with a folding mast and a built-in red/blue warning light. DC 22.2 V, 10 Ah, 10 h on strong and 16 h on working light — 500 × 150 × 1280 mm raised, 6 kg.
- 50 W
- DC 22.2 V
- 10 Ah
- 10 h / 16 h
- red/blue warning
- 6±0.1 kg
- Rated voltage — DC22.2V
- Rated power — 50W
- Rated capacity — 10Ah
- Discharge time — 10h (Strong) / 16h (Working)
- Dimensions — 500×150×180mm (Folded)
- Weight — 6±0.1kg
Technical data
| Parameter | Value |
|---|---|
| Rated voltage | DC22.2V |
| Rated power | 50W |
| Rated capacity | 10Ah |
| Discharge time | 10h (Strong) / 16h (Working) |
| Warning light colour | Red/Blue |
| Dimensions | 500×150×180mm (Folded) |
| 500×150×1280mm (Raised) | |
| Weight | 6±0.1kg |
Features
- Rated power 50W.
- Rechargeable: 10Ah battery on a DC22.2V supply — 10h (Strong) / 16h (Working) per charge.
- Built-in red/blue warning light.
- Dimensions 500×150×180mm (Folded), 6±0.1kg.
- Built-in red/blue warning light for marking the work position.
- Flat folding mast: 180 mm thick folded, 1 280 mm raised.
Where it is used
Temporary and portable lighting tasks in industrial plants: inspection rounds, shutdown and turnaround work, tank and vessel cleaning, cable and pipe routing, spill response, and any position where a fixed luminaire is not practical.
Need a quotation for the ZFW6117?
Tell us the area classification, how long the light has to run on one charge and how it will be mounted, and our engineers will confirm the configuration and prepare the quotation for you.
More in this series
Other models in the same range, so you can compare running times, mounting and protection grades side by side.

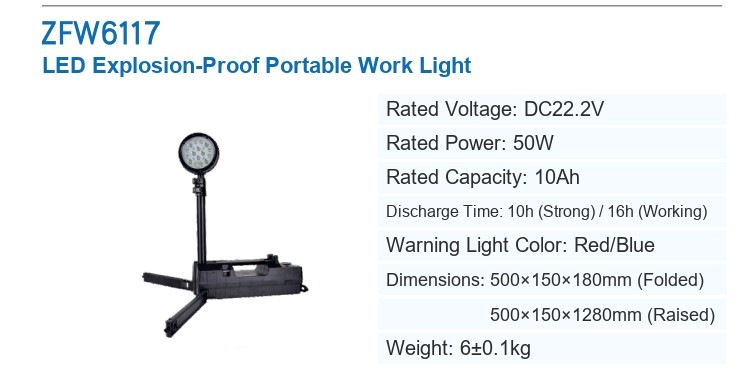

The manufacturer’s sheet for this model does not state an Ex marking. Portable work lights for hazardous areas are specified against the area classification on site — send us the zone, the gas or dust group and the temperature class you need, and our engineers will confirm the marking and the correct model before you order. The sheet for this model does not state a protection (IP) grade or a charging time — please confirm both with our engineers. Technical data is reproduced from the manufacturer’s sheet for model ZFW6117. Dimensions are given in millimetres unless stated otherwise.
