Model ZBD111L
ZBD111L LED Explosion-proof Road Light

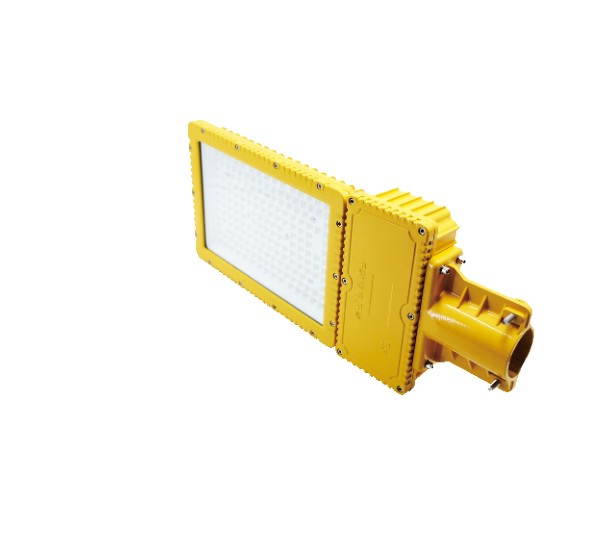

An LED road luminaire for classified areas, built in four housing types from 60 W to 240 W. The housing is a finned die-cast body with a framed LED panel and an adjustable spigot mount, so the fitting can be aimed along the roadway after it is bolted down. Gas and dust markings are both carried, on a G3/4" entry.
- 30 W – 240 W
- Four housing types
- Ex db IIC T6 Gb
- Ex tb IIIC T80°C Db
- AC 220 V / 50 Hz
- 4 kg – 9.2 kg

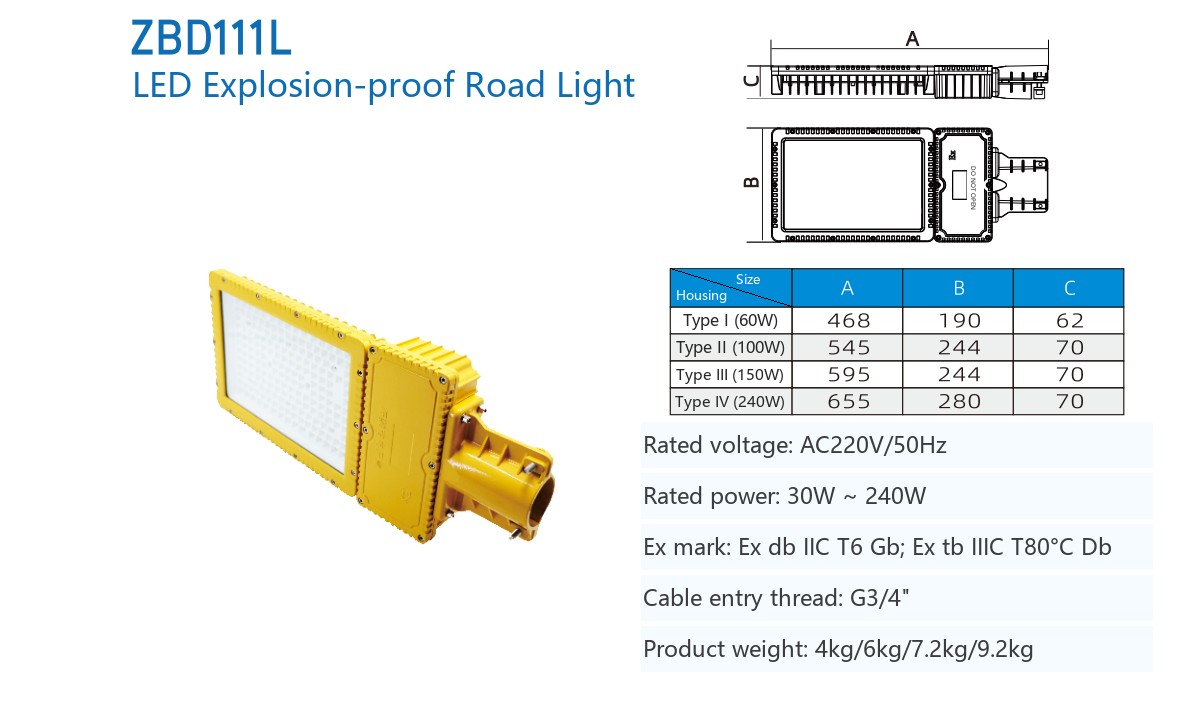

Technical data
| Parameter | Value |
|---|---|
| Model | ZBD111L |
| Rated voltage | AC 220 V / 50 Hz |
| Rated power | 30 W – 240 W |
| Ex marking | Ex db IIC T6 Gb; Ex tb IIIC T80°C Db |
| Cable entry thread | G3/4" |
| Housing Type I (60 W) | 468 × 190 × 62 mm (A × B × C); 4 kg |
| Housing Type II (100 W) | 545 × 244 × 70 mm (A × B × C); 6 kg |
| Housing Type III (150 W) | 595 × 244 × 70 mm (A × B × C); 7.2 kg |
| Housing Type IV (240 W) | 655 × 280 × 70 mm (A × B × C); 9.2 kg |
Features
- Four housing types — Type I to Type IV cover the range from a 60 W to a 240 W version, each with its own body size, so the luminaire can be matched to the road width and the pole spacing.
- Road-lighting body — a finned die-cast housing with a framed LED panel, shaped to throw light along a roadway rather than flood it in every direction.
- Adjustable spigot mount — the fitting is aimed after installation, as shown in the product photograph.
- Gas and dust marking — Ex db IIC T6 Gb and Ex tb IIIC T80°C Db on the same luminaire.
- G3/4" cable entry — closed with the matching certified gland.
- AC 220 V / 50 Hz — standard single-phase supply.
- Weight from 4 kg to 9.2 kg — the weight of each type is listed with its dimensions, which matters when the pole or the bracket is being selected.
Where the ZBD111L is used
- Site roads, internal roadways and plant perimeter roads inside a classified area
- Parking areas, loading bays and vehicle circulation routes between units
- Tank farm roads and pipe rack corridors lit from poles rather than from structures
- Gate houses, weighbridges and checkpoints that need road-level lighting
- Dust-rated areas, using the Ex tb IIIC T80°C Db marking
Which housing type fits your road?Tell us the road width, the pole height and spacing and the required light level, plus the zone and gas or dust group. We will confirm the housing type, the exact marking and the entry and gland that complete the installation.
Part of the explosion-proof lighting range, alongside the ZBD111 LED light and the ZBD154 floodlight.
