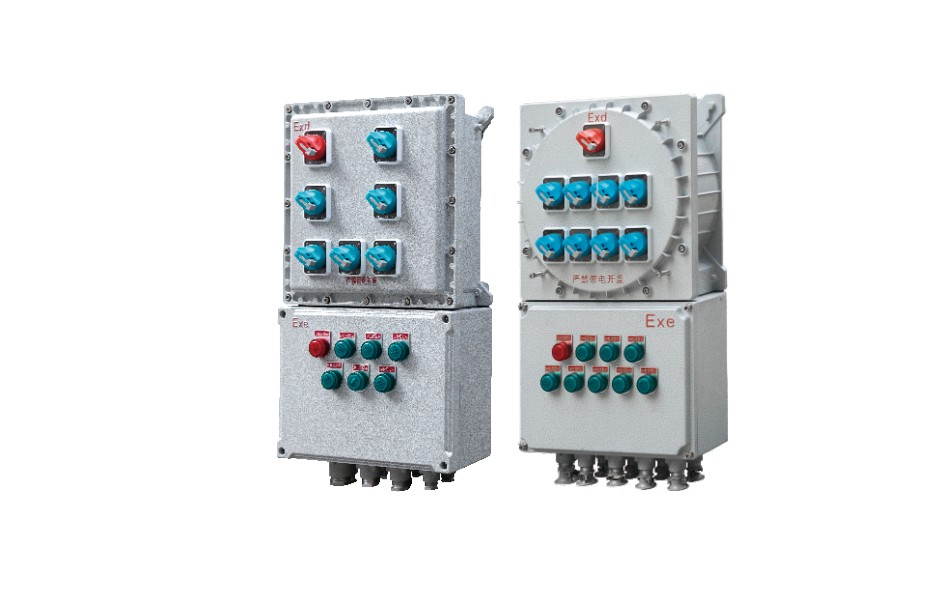

BXM(D) Series Explosion-Proof Distribution Box
Explosion-proof lighting (power) distribution box with a composite structure: the main chamber is flameproof (Ex d) and the terminal chamber is increased safety (Ex e). The modular design lets all circuits be freely combined, and the built-in high-breaking MCB or moulded case circuit breaker is operated by the handle on the cover.
- Ex db eb IIB / IIC T4 Gb
- Ex tb IIIC T135°C Db
- Ex d / Ex e composite
- AC 220 / 380 V
- Main switch ≤250 A
- Branch ≤63 A
- Ex marking Ex db eb IIB T4 Gb · Ex db eb IIC T4 Gb · Ex tb IIIC T135°C Db
- Housing Die-cast aluminium alloy or welded steel plate with high-pressure electrostatic plastic spray; or welded stainless steel
- Structure Main chamber flameproof (Ex d); terminal chamber increased safety (Ex e)
- Circuit breaker Built-in high-breaking MCB or moulded case circuit breaker, cover-handle operation
- Inlet thread G1/2 – G4 · M20 – M115×1.5
- Ratings AC 220 / 380 V · main switch ≤250 A · branch ≤63 A

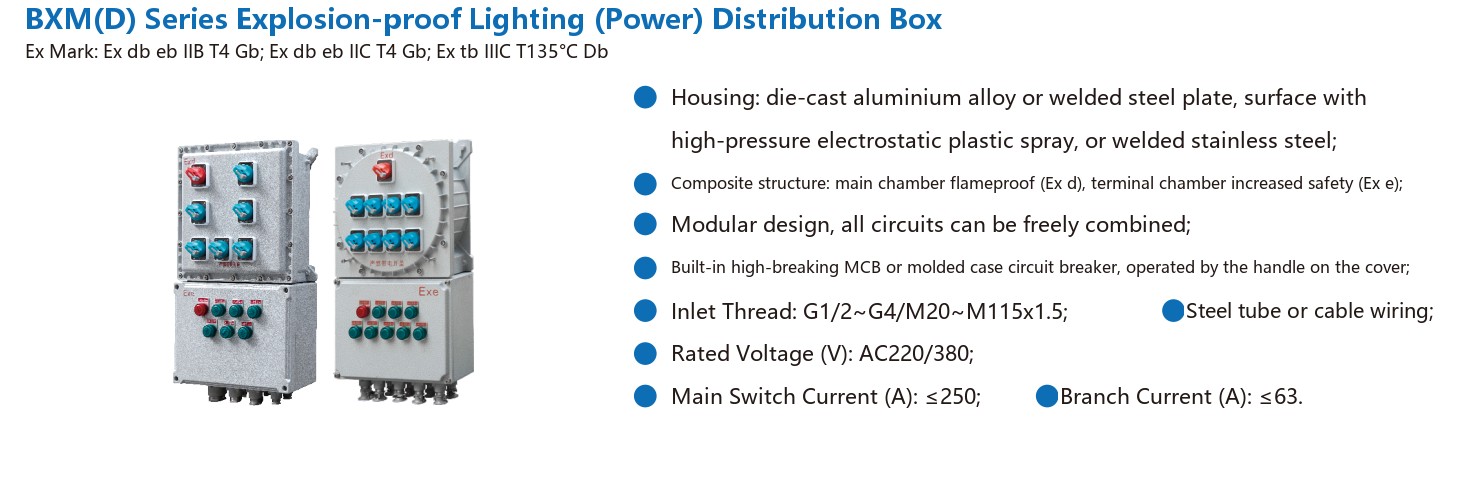

Technical data
| Parameter | Value |
|---|---|
| Series | BXM(D) |
| Ex marking | Ex db eb IIB T4 Gb; Ex db eb IIC T4 Gb; Ex tb IIIC T135°C Db |
| Housing material | Die-cast aluminium alloy or welded steel plate, surface with high-pressure electrostatic plastic spray; or welded stainless steel |
| Structure | Composite — main chamber flameproof (Ex d), terminal chamber increased safety (Ex e) |
| Circuit arrangement | Modular design; all circuits can be freely combined |
| Circuit breaker | Built-in high-breaking MCB or moulded case circuit breaker, operated by the handle on the cover |
| Inlet thread | G1/2 to G4 / M20 to M115×1.5 |
| Wiring | Steel tube or cable |
| Rated voltage | AC 220 / 380 V |
| Main switch current | ≤250 A |
| Branch current | ≤63 A |
Features
- Composite structure — flameproof (Ex d) main chamber with an increased-safety (Ex e) terminal chamber.
- Modular design — all circuits can be freely combined to suit the installation.
- Built-in breaking device — high-breaking MCB or moulded case circuit breaker, operated by the handle on the cover.
- Housing options — die-cast aluminium alloy or welded steel plate with high-pressure electrostatic plastic spray finish, or welded stainless steel.
- Inlet threads — G1/2 to G4, or M20 to M115×1.5.
- Wiring — steel tube or cable entry.
- Electrical ratings — AC 220 / 380 V; main switch current up to 250 A and branch current up to 63 A.
Applications
- Lighting and power distribution circuits in Zone 1 / Zone 2 gas hazardous areas
- Dust hazardous areas (Zone 21 / Zone 22) where Ex tb protection is required
- Field distribution fed by steel-tube or cable wiring
- Modular combinations of lighting, control and small power circuits
Technical data is reproduced from the manufacturer’s product sheet for the BXM(D) series. Please confirm the final configuration with our engineers before ordering.
