ZFW6102C Explosion-Proof Flood Work Light
The 30 W flood work light on a tripod telescopic mast that reaches from 1.5 m to 3.5 m — the tallest of the three ZFW6102 versions. DC 24 V, 20 Ah, 10 h per charge, IP65 — 19 kg.
- 30 W
- DC 24 V
- 20 Ah
- 10 h discharge
- IP65
- 1.5–3.5 m tripod
- 19±0.1 kg
- Rated voltage — DC24V
- Rated power — 30W
- Rated capacity — 20Ah
- Discharge time — 10h
- Charging time — ≤16h
- Protection grade — IP65
Technical data
| Parameter | Value |
|---|---|
| Rated voltage | DC24V |
| Rated power | 30W |
| Rated capacity | 20Ah |
| Discharge time | 10h |
| Charging time | ≤16h |
| Protection grade | IP65 |
| Tripod telescopic mast | 1.5~3.5m |
| Dimensions | 250×220×650mm |
| Weight | 19±0.1kg |
Features
- Rated power 30W.
- Rechargeable: 20Ah battery on a DC24V supply — 10h per charge, ≤16h to recharge.
- Ingress protection IP65.
- Dimensions 250×220×650mm, 19±0.1kg.
- Tripod telescopic mast reaching up to 3.5 m, with the battery box standing on the ground.
Where it is used
Temporary and portable lighting tasks in industrial plants: inspection rounds, shutdown and turnaround work, tank and vessel cleaning, cable and pipe routing, spill response, and any position where a fixed luminaire is not practical.
Need a quotation for the ZFW6102C?
Tell us the area classification, how long the light has to run on one charge and how it will be mounted, and our engineers will confirm the configuration and prepare the quotation for you.
More in this series
Other models in the same range, so you can compare running times, mounting and protection grades side by side.

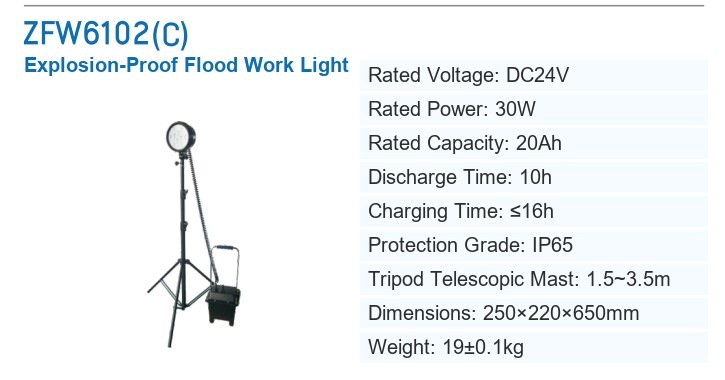

The manufacturer’s sheet for this model does not state an Ex marking. Portable work lights for hazardous areas are specified against the area classification on site — send us the zone, the gas or dust group and the temperature class you need, and our engineers will confirm the marking and the correct model before you order. Technical data is reproduced from the manufacturer’s sheet for model ZFW6102C. Dimensions are given in millimetres unless stated otherwise.
