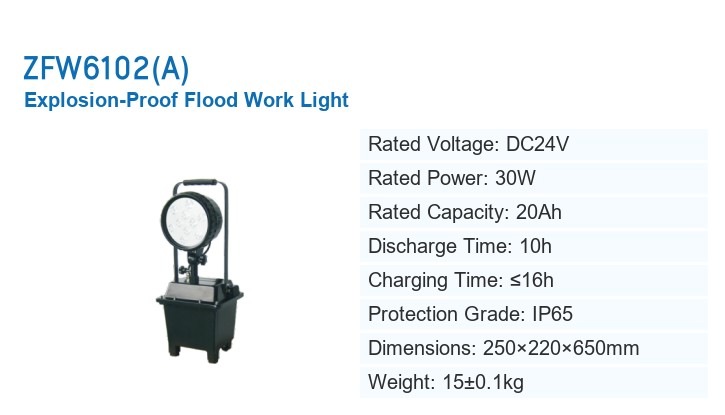

ZFW6102A Explosion-Proof Flood Work Light
A rechargeable flood work light on a wheeled base, with a single 30 W LED head. DC 24 V, 20 Ah battery, 10 h per charge and IP65 — 15 kg with the standard mast.
- 30 W
- DC 24 V
- 20 Ah
- 10 h discharge
- IP65
- 15±0.1 kg
- Rated voltage — DC24V
- Rated power — 30W
- Rated capacity — 20Ah
- Discharge time — 10h
- Charging time — ≤16h
- Protection grade — IP65
Technical data
| Parameter | Value |
|---|---|
| Rated voltage | DC24V |
| Rated power | 30W |
| Rated capacity | 20Ah |
| Discharge time | 10h |
| Charging time | ≤16h |
| Protection grade | IP65 |
| Dimensions | 250×220×650mm |
| Weight | 15±0.1kg |
Features
- Rated power 30W.
- Rechargeable: 20Ah battery on a DC24V supply — 10h per charge, ≤16h to recharge.
- Ingress protection IP65.
- Dimensions 250×220×650mm, 15±0.1kg.
- Single 30 W LED head on a wheeled base with a mast, so one person can move and position it.
Where it is used
Temporary and portable lighting tasks in industrial plants: inspection rounds, shutdown and turnaround work, tank and vessel cleaning, cable and pipe routing, spill response, and any position where a fixed luminaire is not practical.
Need a quotation for the ZFW6102A?
Tell us the area classification, how long the light has to run on one charge and how it will be mounted, and our engineers will confirm the configuration and prepare the quotation for you.
More in this series
Other models in the same range, so you can compare running times, mounting and protection grades side by side.
The manufacturer’s sheet for this model does not state an Ex marking. Portable work lights for hazardous areas are specified against the area classification on site — send us the zone, the gas or dust group and the temperature class you need, and our engineers will confirm the marking and the correct model before you order. Technical data is reproduced from the manufacturer’s sheet for model ZFW6102A. Dimensions are given in millimetres unless stated otherwise.
