Model ZBD119
ZBD119 LED Explosion-proof Platform Light
A 30–50 W platform luminaire in a finned die-cast body with a glass dome, for the places where light is needed in every direction at a modest mounting height: walkways, platforms and tank tops inside a classified area. It carries both the gas marking and the dust marking.
- 30 – 50 W
- Ex db IIC T6 Gb
- Ex tb IIIC T80°C Db
- AC 220 V / 50 Hz
- G3/4" cable entry
- Ø200 × 279 mm

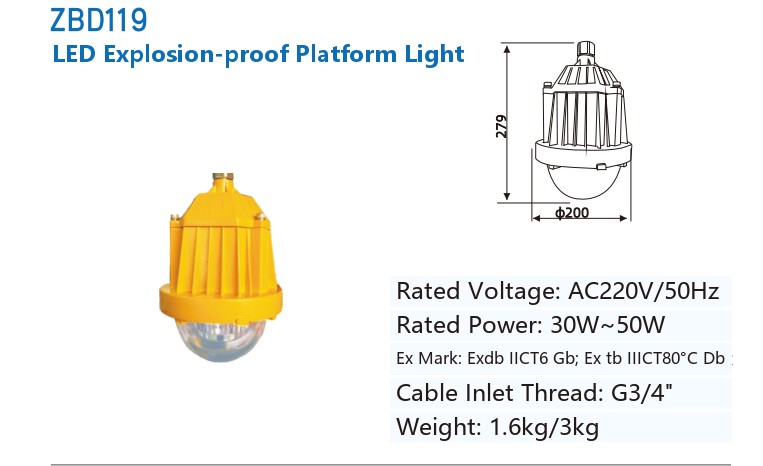

Technical data
| Parameter | Value |
|---|---|
| Model | ZBD119 |
| Rated voltage | AC 220 V / 50 Hz |
| Rated power | 30 – 50 W |
| Ex marking | Ex db IIC T6 Gb; Ex tb IIIC T80°C Db |
| Cable inlet thread | G3/4" |
| Dimensions | Ø200 mm × 279 mm (height) |
| Weight | 1.6 kg / 3 kg |
Features
- Gas and dust marking — Ex db IIC T6 Gb for Zone 1 / Zone 2 and Ex tb IIIC T80°C Db for combustible dust areas, in one luminaire.
- Glass dome optic — the light engine sits behind a dome that also closes the enclosure at the bottom.
- Finned die-cast body — the fins give the LED module a larger surface for heat dissipation in still air.
- 30–50 W — a low-to-mid power unit, matched to mounting heights where a large floodlight would over-light the area.
- G3/4" cable entry — a single entry at the top of the body, closed with the matching certified gland.
- Compact and light — Ø200 mm × 279 mm, 1.6 kg / 3 kg, so a walkway bracket carries it without additional steelwork.
- AC 220 V / 50 Hz — standard single-phase supply.
Where the ZBD119 is used
- Walkways, stairways and platforms inside a classified area
- Tank tops and vessel areas, where light is wanted downwards and outwards rather than in one beam
- Pipe racks at low and medium mounting heights
- Loading areas and local working positions that need even, low-level lighting
- Dust-rated areas, using the Ex tb IIIC T80°C Db marking
Choosing between the ZBD models?Tell us the mounting height, the area to be lit, the zone and gas or dust group, and whether the position needs a wider spread or a longer throw. We will confirm the model and the exact marking, together with the bracket and gland that complete the installation.
