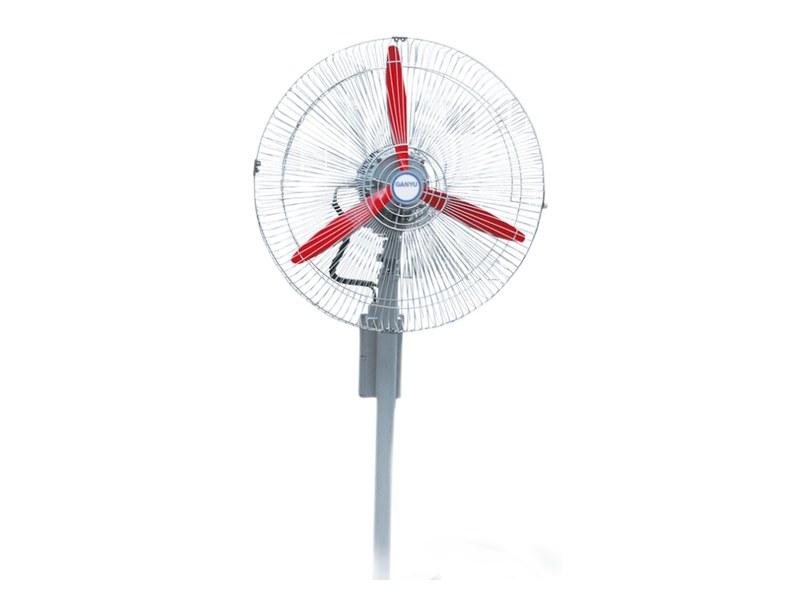

FB Series Explosion-Proof Oscillating Fan
A flameproof oscillating fan for cooling people and workstations in classified areas: flameproof motor, high-strength aluminium-alloy impeller, smooth oscillating head, 400 mm to 700 mm impeller diameter and 85 to 300 m³/min of air flow at 220/380 V AC.
- Ex d IIB T4
- Zone 1 & Zone 2
- 220 / 380 V AC
- 4 sizes
- Aluminium impeller
- Ex marking — d IIB T4
- Impeller diameter — 400 / 500 / 600 / 700 mm
- Air flow — 85 / 110 / 160 / 300 m³/min
- Input power — 250 / 370 / 450 / 450 W
- Supply voltage — 220 / 380 V
Technical data
| Model | Impeller dia. (mm) | Air flow (m³/min) | Input power (W) | Voltage (V) | Ex marking |
|---|---|---|---|---|---|
| FB-400 | 400 | 85 | 250 | 220/380 | d IIB T4 |
| FB-500 | 500 | 110 | 370 | 220/380 | |
| FB-600 | 600 | 160 | 450 | 220/380 | |
| FB-750 | 700 | 300 | 450 | 220/380 |
Features
- Good explosion-proof performance with a flameproof (Ex d) motor enclosure.
- Rational structure, stable operation and easy to use.
- Oscillating head moves the air stream across the working area.
- Impeller made of high-strength aluminium alloy.
- Attractive appearance; pedestal and wall-mounted installations available.
- Model designation: F — oscillating fan, B — flameproof type, number — impeller diameter in mm.
Where it is used
Cooling (heat relief) in premises containing explosive gas mixtures of Class A or B combustible gases with air, temperature classes T1–T4, in Zone 1 or Zone 2 areas — such as workshops, warehouses, offices and filling stations in the petroleum, military-industry, chemical, machinery, pharmaceutical and metallurgical sectors.
Need a quotation for the FB series?
Tell us the zone, the gas group and the impeller diameter you need, and our engineers will confirm the model (FB-400 to FB-750) and prepare the quotation.

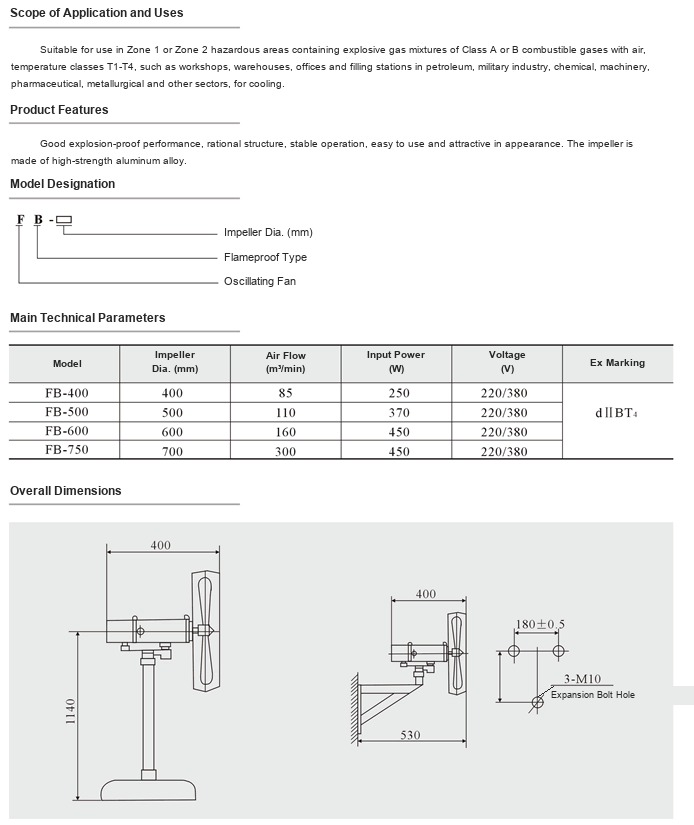

Technical data is reproduced from the manufacturer’s sheet for the FB series. The sheet does not state the gas group beyond the d IIB T4 marking shown; for Group IIC atmospheres or dust hazards, send us the area classification and our engineers will confirm suitability before you order. Dimensions are in millimetres unless stated otherwise.
