ZFW6108 Mobile Lighting System
A two-head mobile lighting system on a trolley base: 45 W flood plus 25 W spot on a 24 Ah battery at DC 12 V. All lamps on for at least 3.5 h, spot alone at least 10.5 h and flood alone at least 7.5 h — 25 kg.
- 45 W flood / 25 W spot
- DC 12 V
- 24 Ah
- ≥3.5 h all on
- 25±0.1 kg
- Rated voltage — DC12V
- Rated power — 45W (Flood) / 25W (Spot)
- Rated capacity — 24Ah
- Discharge time — All Lamps On ≥3.5h
- Dimensions — 465×292×575mm
- Weight — 25±0.1kg
Technical data
| Parameter | Value |
|---|---|
| Rated voltage | DC12V |
| Rated capacity | 24Ah |
| Rated power | 45W (Flood) / 25W (Spot) |
| Discharge time | All Lamps On ≥3.5h |
| Spotlight ≥10.5h Floodlight ≥7.5h | |
| Dimensions | 465×292×575mm |
| Weight | 25±0.1kg |
Features
- Rated power 45W (Flood) / 25W (Spot).
- Rechargeable: 24Ah battery on a DC12V supply — All Lamps On at least 3.5h per charge.
- Dimensions 465×292×575mm, 25±0.1kg.
- Twin head — 45 W flood plus 25 W spot — on a trolley base with the battery box below.
Where it is used
Temporary and portable lighting tasks in industrial plants: inspection rounds, shutdown and turnaround work, tank and vessel cleaning, cable and pipe routing, spill response, and any position where a fixed luminaire is not practical.
Need a quotation for the ZFW6108?
Tell us the area classification, how long the light has to run on one charge and how it will be mounted, and our engineers will confirm the configuration and prepare the quotation for you.
More in this series
Other models in the same range, so you can compare running times, mounting and protection grades side by side.

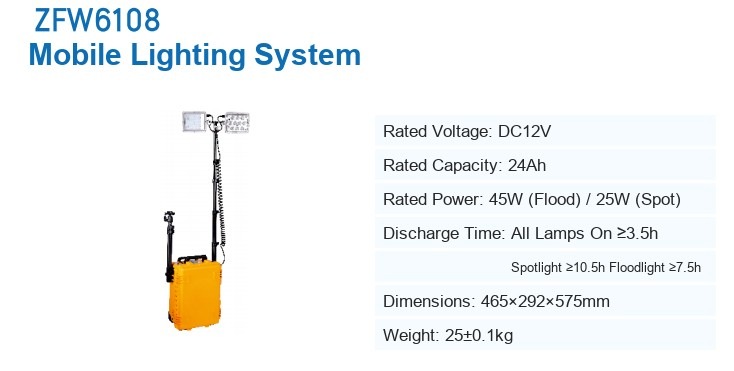

The manufacturer’s sheet for this model does not state an Ex marking. Portable work lights for hazardous areas are specified against the area classification on site — send us the zone, the gas or dust group and the temperature class you need, and our engineers will confirm the marking and the correct model before you order. The sheet for this model does not state a protection (IP) grade or a charging time — please confirm both with our engineers. Technical data is reproduced from the manufacturer’s sheet for model ZFW6108. Dimensions are given in millimetres unless stated otherwise.
