ZJW5100 Portable Strong-Light Work Light
A compact hand-held work light with a carrying handle: 3 W at DC 3.7 V, 4 400 mAh, eight hours on strong light and sixteen on working light. IP65, 175 × 150 × 55 mm and 1.2 ± 0.1 kg.
- 3 W
- DC 3.7 V
- 4 400 mAh
- 8 h / 16 h
- IP65
- 1.2±0.1 kg
- Rated voltage — DC3.7V
- Rated power — 3W
- Rated capacity — 4400mAh
- Discharge time — 8h (Strong Light) / 16h (Working Light)
- Charging time — ≤8h
- Protection grade — IP65
Technical data
| Parameter | Value |
|---|---|
| Rated voltage | DC3.7V |
| Rated power | 3W |
| Rated capacity | 4400mAh |
| Discharge time | 8h (Strong Light) / 16h (Working Light) |
| Charging time | ≤8h |
| Protection grade | IP65 |
| Dimensions | 175×150×55mm |
| Weight | 1.2±0.1kg |
Features
- Rated power 3W.
- Rechargeable: a 4400mAh battery, a DC3.7V supply, 8h (Strong Light) / 16h (Working Light) per charge and a recharge time of ≤8h.
- Ingress protection IP65.
- Dimensions 175×150×55mm, 1.2±0.1kg.
Where it is used
Temporary and portable lighting tasks in industrial plants: inspection rounds, shutdown and turnaround work, tank and vessel cleaning, cable and pipe routing, spill response, and any position where a fixed luminaire is not practical.
Need a quotation for the ZJW5100?
Tell us the area classification, how long the light has to run on one charge and how it will be mounted, and our engineers will confirm the configuration and prepare the quotation for you.

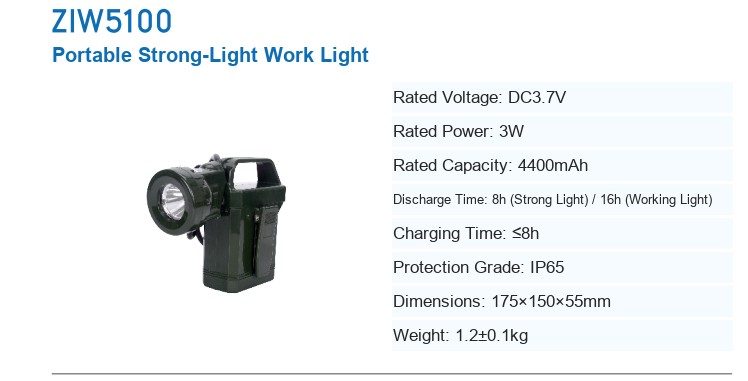

The manufacturer’s sheet for this model does not state an Ex marking. Portable work lights for hazardous areas are specified against the area classification on site — send us the zone, the gas or dust group and the temperature class you need, and our engineers will confirm the marking and the correct model before you order. Technical data is reproduced from the manufacturer’s sheet for model ZJW5100. Dimensions are given in millimetres unless stated otherwise.
