ZSFW6110Q Auto Lifting Spherical Moon Light
A trailer-mounted spherical moon light on a pneumatic mast reaching 4.5 m or 6 m, with a 2 kW to 5 kW gasoline or diesel generator and a wireless remote. One lamp head, 200 W to 300 W, IP65 — 85 kg.
- 200–300 W spherical
- AC 220 V
- IP65
- pneumatic mast 4.5–6 m
- 2–5 kW
- 85 kg
- Lighting system — Rated power — 200W / 300W / 2×200W / 2×300W
- Lighting system — Protection grade — IP65
- Dimensions — 2300×620×830mm
Technical data
| Parameter | Value |
|---|---|
| Lighting system — Light sources | Gas Discharge, LED |
| Lighting system — Rated power | 200W / 300W / 2×200W / 2×300W |
| Lighting system — Input voltage | AC220V |
| Lighting system — Protection grade | IP65 |
| Lighting system — No. of lamps | 1 |
| Lifting system — Mast | Pneumatic |
| Lifting system — Lifting height | 4.5m / 6m |
| Lifting system — Mast material | Aluminum Alloy |
| Lifting system — Mast surface colour | Natural Metal |
| Power system — Generator type | Gasoline / Diesel |
| Power system — Starting mode | Manual / Electric |
| Power system — Cooling mode | Air-Cooled |
| Power system — Generator power | 2000W / 3000W / 5000W |
| Power system — Output voltage | AC220V / AC380V |
| Control system — Control panel | Rotary Handle Switch |
| Control system — Remote control | Wireless Remote |
| Chassis system — Base plate material | Carbon Steel |
| Chassis system — Wheels | 2″ Fixed Caster, 2″ Swivel Caster |
| Chassis system — Mobility | Wheels |
| Dimensions | 2300×620×830mm |
| Total weight | 85kg |
Features
- Rated power 200W / 300W / 2×200W / 2×300W.
- Ingress protection IP65.
- Dimensions 2300×620×830mm.
- Spherical diffuser for shadow-free light over a wide area.
- Pneumatic mast to 4.5 m or 6 m, wireless remote control.
Where it is used
Temporary and portable lighting tasks in industrial plants: inspection rounds, shutdown and turnaround work, tank and vessel cleaning, cable and pipe routing, spill response, and any position where a fixed luminaire is not practical.
Need a quotation for the ZSFW6110Q?
Tell us the area classification, how long the light has to run on one charge and how it will be mounted, and our engineers will confirm the configuration and prepare the quotation for you.

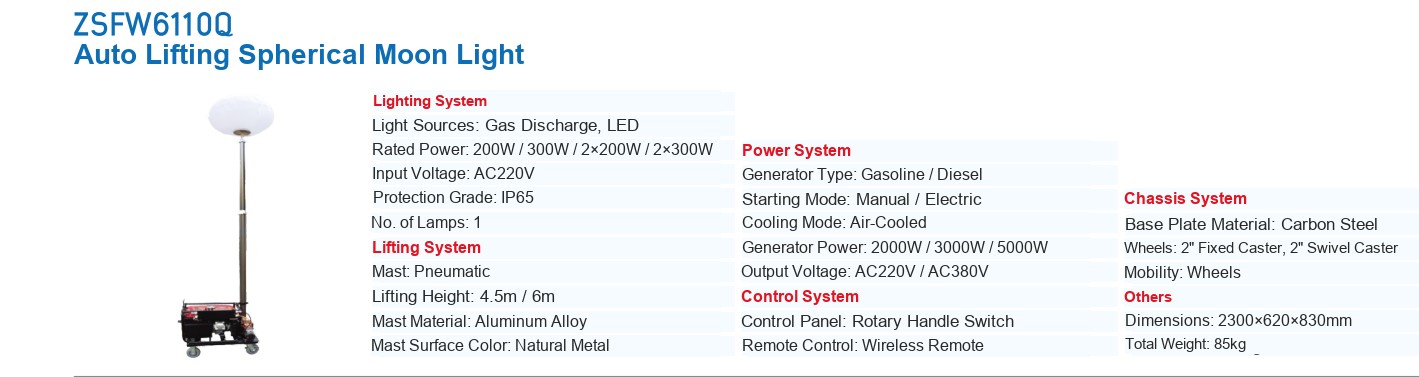

The manufacturer’s sheet for this model does not state an Ex marking. Portable work lights for hazardous areas are specified against the area classification on site — send us the zone, the gas or dust group and the temperature class you need, and our engineers will confirm the marking and the correct model before you order. Technical data is reproduced from the manufacturer’s sheet for model ZSFW6110Q. Dimensions are given in millimetres unless stated otherwise.
