ZSW2600 High-Intensity Explosion-Proof Work Light
A wheeled high-intensity work light with an extending mast up to 1.2 m. DC 14.8 V, 30 W, 12 Ah / 180 Wh: 10 h on strong and 20 h on working light, recharged in 8 to 10 h — 6.7 kg.
- 30 W
- DC 14.8 V
- 12 Ah / 180 Wh
- 10 h / 20 h
- 6.7±0.1 kg
- Rated voltage — DC14.8V
- Rated power — 30W
- Rated capacity — 12Ah
- Discharge time — 10h (Strong) / 20h (Working)
- Charging time — 8-10h
- Battery energy — 180Wh

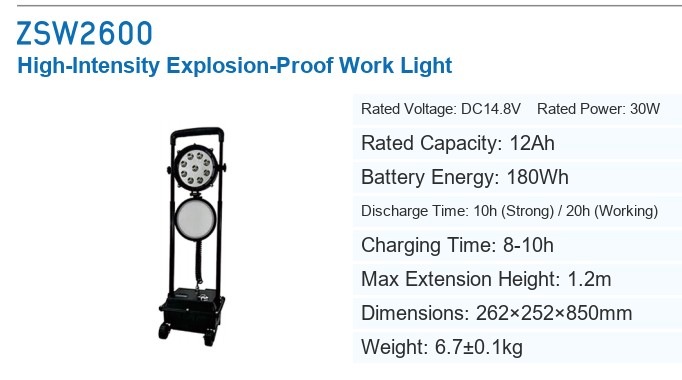

Technical data
| Parameter | Value |
|---|---|
| Rated voltage | DC14.8V |
| Rated power | 30W |
| Rated capacity | 12Ah |
| Battery energy | 180Wh |
| Discharge time | 10h (Strong) / 20h (Working) |
| Charging time | 8-10h |
| Max extension height | 1.2m |
| Dimensions | 262×252×850mm |
| Weight | 6.7±0.1kg |
Features
- Rated power 30W.
- Rechargeable: 12Ah battery on a DC14.8V supply — 10h (Strong) / 20h (Working) per charge, 8-10h to recharge.
- Dimensions 262×252×850mm, 6.7±0.1kg.
- Twin-lamp head on a mast that extends to 1.2 m, on a wheeled base.
Where it is used
Temporary and portable lighting tasks in industrial plants: inspection rounds, shutdown and turnaround work, tank and vessel cleaning, cable and pipe routing, spill response, and any position where a fixed luminaire is not practical.
Need a quotation for the ZSW2600?
Tell us the area classification, how long the light has to run on one charge and how it will be mounted, and our engineers will confirm the configuration and prepare the quotation for you.
More in this series
Other models in the same range, so you can compare running times, mounting and protection grades side by side.
The manufacturer’s sheet for this model does not state an Ex marking. Portable work lights for hazardous areas are specified against the area classification on site — send us the zone, the gas or dust group and the temperature class you need, and our engineers will confirm the marking and the correct model before you order. The sheet for this model does not state a protection (IP) grade — please confirm the IP rating you need with our engineers. Technical data is reproduced from the manufacturer’s sheet for model ZSW2600. Dimensions are given in millimetres unless stated otherwise.
