ZFW6105A Lightweight Portable Work Light
A compact rechargeable work light with a 27 W strong / 9 W working LED head on a low base. DC 14.8 V, 10 Ah, 8 h on strong and 16 h on working light, IP65 — 6.1 kg.
- 27/9 W
- DC 14.8 V
- 10 Ah
- 8 h / 16 h
- IP65
- 6.1±0.1 kg
- Rated voltage — DC14.8V
- Rated power — 27/9W
- Rated capacity — 10Ah
- Discharge time — 8h (Strong) / 16h (Working)
- Charging time — ≤12h
- Protection grade — IP65
Technical data
| Parameter | Value |
|---|---|
| Rated voltage | DC14.8V |
| Rated power | 27/9W |
| Rated capacity | 10Ah |
| Discharge time | 8h (Strong) / 16h (Working) |
| Charging time | ≤12h |
| Protection grade | IP65 |
| Dimensions | 250×200×577mm |
| Weight | 6.1±0.1kg |
Features
- Rated power 27/9W.
- Rechargeable: 10Ah battery on a DC14.8V supply — 8h (Strong) / 16h (Working) per charge, ≤12h to recharge.
- Ingress protection IP65.
- Dimensions 250×200×577mm, 6.1±0.1kg.
- Low flat base — 577 mm overall height — so it stores in a locker or the back of a van.
Where it is used
Temporary and portable lighting tasks in industrial plants: inspection rounds, shutdown and turnaround work, tank and vessel cleaning, cable and pipe routing, spill response, and any position where a fixed luminaire is not practical.
Need a quotation for the ZFW6105A?
Tell us the area classification, how long the light has to run on one charge and how it will be mounted, and our engineers will confirm the configuration and prepare the quotation for you.
More in this series
Other models in the same range, so you can compare running times, mounting and protection grades side by side.

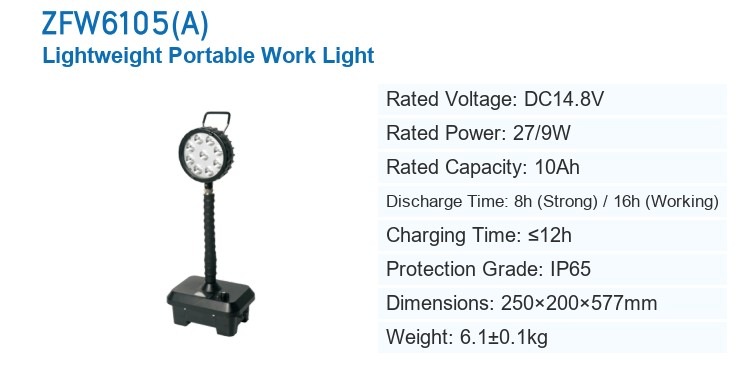

The manufacturer’s sheet for this model does not state an Ex marking. Portable work lights for hazardous areas are specified against the area classification on site — send us the zone, the gas or dust group and the temperature class you need, and our engineers will confirm the marking and the correct model before you order. Technical data is reproduced from the manufacturer’s sheet for model ZFW6105A. Dimensions are given in millimetres unless stated otherwise.
