ZBD152 LED Maintenance-Free Explosion-Proof Light
A high-output LED floodlight for hazardous areas, offered in two power bands — 180 W to 240 W and 300 W to 500 W — on an AC 220 V / 50 Hz supply. Ex db IIC T6 Gb for gas and Ex tb IIIC T80°C Db for dust.
- 180–500 W
- AC 220 V / 50 Hz
- Ex db IIC T6 Gb
- Ex tb IIIC T80°C Db
- G3/4″
- 10 / 22 kg
- Rated voltage — AC220V/50Hz
- Rated power — 180W~240W, 300W~500W
- Product weight — 10kg/22kg
- Cable entry thread — G3/4″
- Explosion-proof mark — Ex db IIC T6 Gb; Ex tb IIIC T80°C Db
Technical data
| Parameter | Value |
|---|---|
| Rated voltage | AC220V/50Hz |
| Rated power | 180W~240W, 300W~500W |
| Explosion-proof mark | Ex db IIC T6 Gb; Ex tb IIIC T80°C Db |
| Cable entry thread | G3/4″ |
| Product weight | 10kg/22kg |
Features
- LED source rated 180W~240W, 300W~500W.
- Rechargeable: a AC220V/50Hz supply.
Where it is used
Temporary and portable lighting tasks in industrial plants: inspection rounds, shutdown and turnaround work, tank and vessel cleaning, cable and pipe routing, spill response, and any position where a fixed luminaire is not practical.
Need a quotation for the ZBD152?
Tell us the area classification, how long the light has to run on one charge and how it will be mounted, and our engineers will confirm the configuration and prepare the quotation for you.
More in this series
Other models in the same range, so you can compare running times, mounting and protection grades side by side.

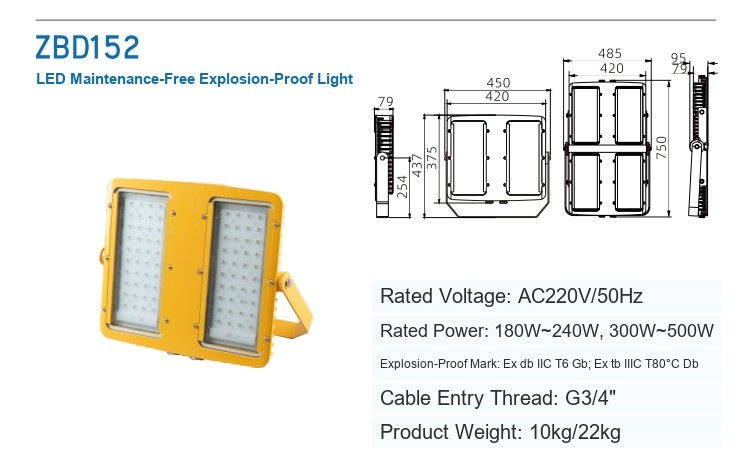

The Ex marking on this model is Ex db IIC T6 Gb for gas and Ex tb IIIC T80°C Db for dust. Technical data is reproduced from the manufacturer’s sheet for model ZBD152. Dimensions are given in millimetres unless stated otherwise.
