Model ZBD124
ZBD124 LED Maintenance-free Explosion-proof Light

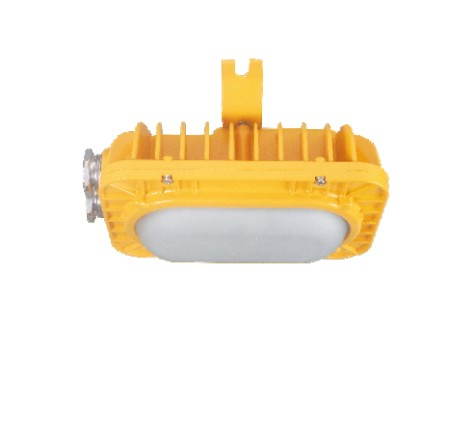

A 20–40 W LED luminaire in a sealed die-cast body with an oval lens, supplied with its mounting bracket. There is no lamp to replace — which is what maintenance-free means in practice on a plant where access to a light means scaffolding, a permit and a shutdown. Gas and dust markings are both carried.
- 20 – 40 W
- Ex db IIC T6 Gb
- Ex tb IIIC T80°C Db
- AC 220 V / 50 Hz
- G3/4" cable entry
- 215 × 140 mm

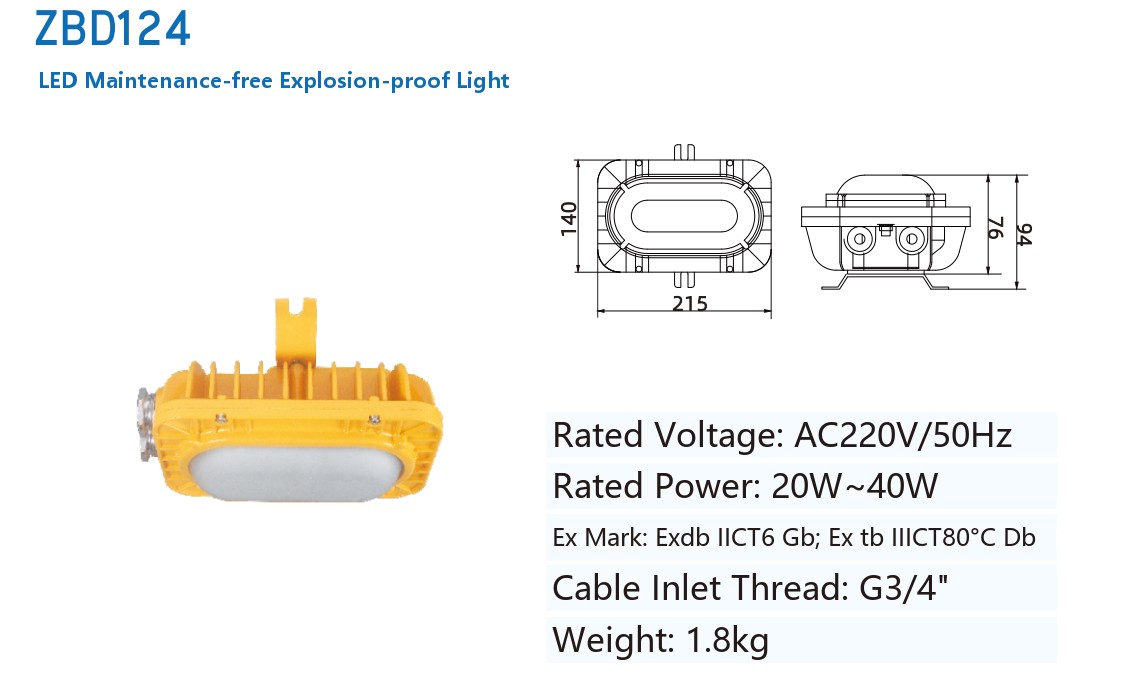

Technical data
| Parameter | Value |
|---|---|
| Model | ZBD124 |
| Rated voltage | AC 220 V / 50 Hz |
| Rated power | 20 – 40 W |
| Ex marking | Ex db IIC T6 Gb; Ex tb IIIC T80°C Db |
| Cable inlet thread | G3/4" |
| Dimensions | 215 × 140 mm; 76 / 94 mm height as drawn |
| Weight | 1.8 kg |
Features
- Maintenance-free LED source — no lamp or tube to replace over the life of the luminaire, which matters most where access is expensive.
- Sealed die-cast body with an oval lens — a low-profile shape that sits close to the surface it is mounted on.
- Supplied with its mounting bracket — the luminaire is positioned by the bracket shown, without a separate yoke.
- Gas and dust marking — Ex db IIC T6 Gb and Ex tb IIIC T80°C Db in the same unit.
- 20–40 W — the lower end of the range, for local lighting and confined positions.
- G3/4" cable entry — a single entry, closed with the matching certified gland.
- AC 220 V / 50 Hz — standard single-phase supply.
Where the ZBD124 is used
- Local lighting on machinery, skids and packages, where the fitting has to sit close to the equipment
- Walkways, stair treads and access routes needing low-level lighting
- Confined positions — pits, culverts, tunnels and under-deck areas — where the low profile and the bracket help
- Positions that are difficult to reach, where a maintenance-free luminaire avoids repeat access
- Dust-rated areas, using the Ex tb IIIC T80°C Db marking
Choosing between the ZBD models?Tell us the mounting height, the area to be lit, the zone and gas or dust group, and how difficult the position is to reach. We will confirm the model and the exact marking, together with the gland that completes the installation.
Part of the explosion-proof lighting range, alongside the ZBD119 platform light.
