Series BPY
BPY Flameproof Explosion-proof Fluorescent Light
A flameproof fluorescent luminaire for classified areas, built with one or two tubes at 9 W or 18 W in a body with clear tube guards and cast end caps. The entry is a single G1/2" gland, the gas group is IIB and an emergency version is available for escape routes.
- 1×9 W – 2×18 W
- Ex db IIB T6 Gb
- Ex tb IIIC T80°C Db
- AC 220 V / 50 Hz
- G1/2" cable entry
- Emergency optional
Technical data
| Parameter | Value |
|---|---|
| Series | BPY |
| Rated voltage | AC 220 V / 50 Hz |
| Rated power | 1×9 W / 2×9 W / 1×18 W / 2×18 W |
| Ex marking | Ex db IIB T6 Gb; Ex tb IIIC T80°C Db |
| Gas group | IIB — where the area classification calls for IIC, another luminaire in the range is required |
| Cable entry thread | G1/2" |

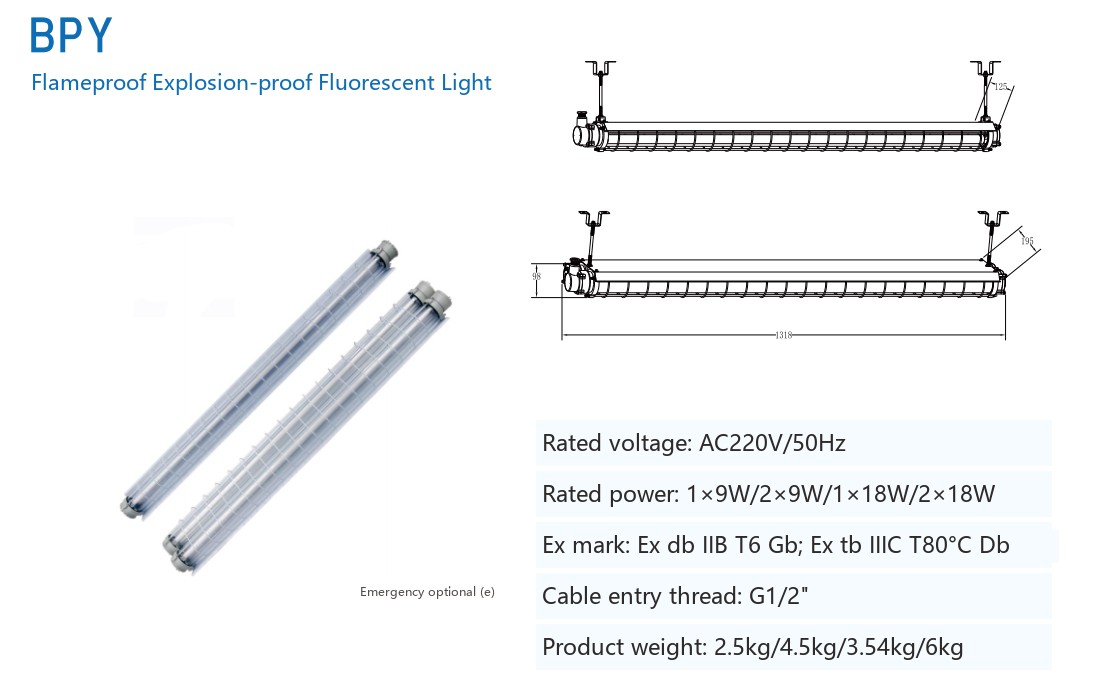

| Drawn dimensions | 1131 mm length · 185 / 25 mm bracket dimensions (as drawn) |
| Weight | 2.5 / 4.5 / 3.54 / 6 kg (listed in the same order as the power options) |
| Emergency version | Optional |
Features
- IIB gas group, T6 — read the group on the nameplate against the area classification: this series is marked IIB, so an area classified as IIC needs a different luminaire in the range.
- One or two tubes — 1×9 W, 2×9 W, 1×18 W or 2×18 W, so the output is matched to the space.
- Clear tube guards and cast end caps — the tubes sit behind guards with cast ends, as shown in the drawing.
- Gas and dust marking — Ex db IIB T6 Gb and Ex tb IIIC T80°C Db on the same luminaire.
- G1/2" cable entry — closed with the matching certified gland.
- Emergency version optional — for escape routes and areas where the general lighting may be switched off.
- Stainless mounting brackets — as shown in the specification sheet drawing.
- AC 220 V / 50 Hz — standard single-phase supply.
Where the BPY is used
- Corridors, stairwells and service passages that need linear lighting at a low mounting height
- Tunnels, culverts and cable routes where the luminaire has to follow the run
- Workshops and maintenance bays on projects whose spares list is built around fluorescent tubes
- Escape routes, using the optional emergency version
- Dust-rated areas, using the Ex tb IIIC T80°C Db marking
Need one tube or two, and which length?Tell us the length of the run, the mounting height and the required light level, plus the zone and gas or dust group. We will confirm the tube arrangement and the exact marking, and check the gas group against your area classification.
Part of the explosion-proof lighting range. For an all-plastic anti-corrosion fluorescent luminaire, see the BYS fluorescent lamp; for linear LED lighting, the ZBD190.
