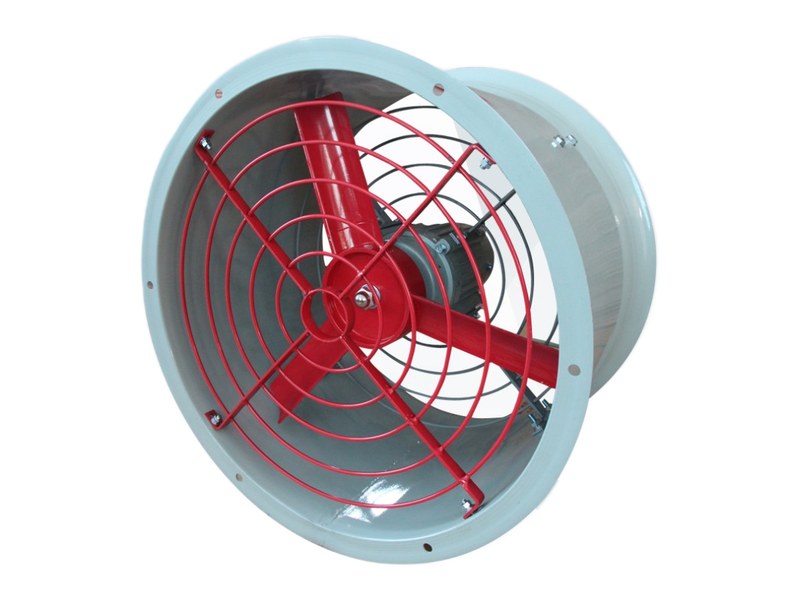

CBF Series Explosion-Proof Axial Fan
A wall-type flameproof axial fan for general ventilation in classified areas: flameproof motor, aluminium-blade impeller at a 20° blade angle, 300 to 750 mm blade diameter, 1450 rpm and 2280 to 10320 m³/h of air flow at 380/220 V AC — an improved version of the BAF fan with identical installation dimensions.
- Ex d IIB T4
- Zone 1 & Zone 2
- 380 / 220 V AC
- 6 sizes
- Aluminium blades
- Ex marking — d IIB T4
- Blade diameter — 300 to 750 mm
- Air flow — 2280 to 10320 m³/h
- Motor power — 0.18 to 1.1 kW
- Speed — 1450 rpm
- Supply voltage — 380 / 220 V

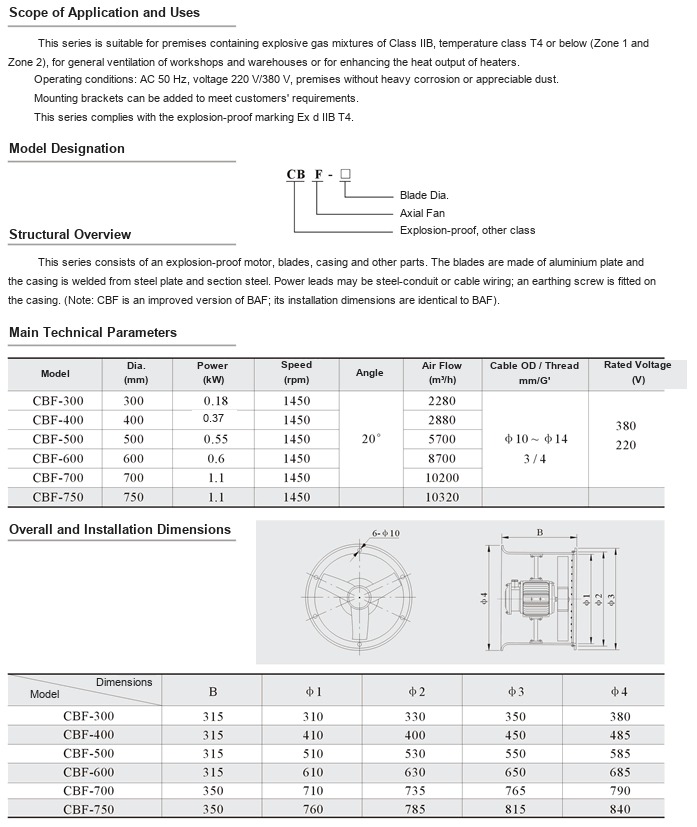

Technical data
| Model | Blade dia. (mm) | Power (kW) | Speed (rpm) | Air flow (m³/h) | Voltage (V) |
|---|---|---|---|---|---|
| CBF-300 | 300 | 0.18 | 1450 | 2280 | 380 / 220 |
| CBF-400 | 400 | 0.37 | 1450 | 2880 | |
| CBF-500 | 500 | 0.55 | 1450 | 5700 | |
| CBF-600 | 600 | 0.6 | 1450 | 8700 | |
| CBF-700 | 700 | 1.1 | 1450 | 10200 | |
| CBF-750 | 750 | 1.1 | 1450 | 10320 |
All models: blade angle 20°; cable entry for outer cable diameters Φ10–Φ14 mm, G 3/4 thread.
Overall and installation dimensions
| Model | B (mm) | Φ1 (mm) | Φ2 (mm) | Φ3 (mm) | Φ4 (mm) |
|---|---|---|---|---|---|
| CBF-300 | 315 | 310 | 330 | 350 | 380 |
| CBF-400 | 315 | 410 | 400 | 450 | 485 |
| CBF-500 | 315 | 510 | 530 | 550 | 585 |
| CBF-600 | 315 | 610 | 630 | 650 | 685 |
| CBF-700 | 350 | 710 | 735 | 765 | 790 |
| CBF-750 | 350 | 760 | 785 | 815 | 840 |
Features
- Good explosion-proof performance with a flameproof (Ex d) motor enclosure.
- Impeller blades made of aluminium plate, welded to the steel-plate hub.
- Casing welded from steel plate and section steel for a rigid, corrosion-resistant frame.
- Power leads enter through steel conduit or cable; an earthing screw is fitted on the casing.
- Mounting brackets can be added to meet customers’ requirements.
- CBF is an improved version of the BAF fan — its installation dimensions are identical to BAF, so it can replace BAF units directly.
- Model designation: C B — explosion-proof, other class; F — axial fan; number — blade diameter in mm.
Where it is used
General ventilation of workshops and enhancement of the heat output of heaters in premises containing explosive gas mixtures of Class IIB, temperature class T4 or below, in Zone 1 or Zone 2 areas. Operating conditions: AC 50 Hz, voltage 220/380 V; premises without heavy corrosion or appreciable dust. Typical sectors: petroleum, chemical, pharmaceutical, machinery and metallurgy plants.
Need a quotation for the CBF series?
Tell us the zone, the gas group and the blade diameter you need, and our engineers will confirm the model (CBF-300 to CBF-750) and prepare the quotation.
Technical data is reproduced from the manufacturer’s sheet for the CBF series. The sheet does not state the gas group beyond the d IIB T4 marking shown; for Group IIC atmospheres or dust hazards, send us the area classification and our engineers will confirm suitability before you order. Dimensions are in millimetres unless stated otherwise.
