Explosion-Proof Lighting
Explosion-proof LED luminaires — seventeen models from 9 W to 500 W, with Ex db (gas) and Ex tb (dust) protection, for Zone 1 / Zone 2 and Zone 21 / Zone 22 areas in oil and gas, chemical and process plants.
Explosion-Proof Lighting — seventeen luminaire models
Seventeen luminaire models for hazardous areas, plus the BBJ sound and light alarm. Every card opens the full specification page.
ZBD107 explosion-proof LED light30–150 W · Ex db IIC T6View product ›
ZBD111 explosion-proof LED light30–240 W · Ex db IIC T6View product ›
ZBD113 explosion-proof square floodlight30–300 W · Ex db eb mb IIB T6View product ›
ZBD127 explosion-proof LED light30–50 W · Ex db IIC T6View product ›
ZBD133 explosion-proof light50–100 W · Ex db IIC T6View product ›
ZBD140 explosion-proof LED light80–240 W · Ex db eb mb IIC T6View product ›
ZBD119 LED explosion-proof platform light30–50 W · Ex db IIC T6 · Ex tb IIIC T80°C DbView product ›
ZBD124 maintenance-free explosion-proof light20–40 W · Ex db IIC T6 · Ex tb IIIC T80°C DbView product ›
ZBD154 explosion-proof LED floodlight70–150 W · Ex db IIC T6 · Ex tb IIIC T80°C DbView product ›
BYS anti-corrosion all-plastic fluorescent lamp9–18 W · Ex db eb mb IIC T5 · Ex tb IIIC T95°C DbView product ›
ZBD111L LED explosion-proof road light30–240 W · Ex db IIC T6 · Ex tb IIIC T80°C DbView product ›
ZBD190 energy-saving LED light20–70 W · Ex db IIC T6 · Ex tb IIIC T80°C DbView product ›
BPY flameproof fluorescent light9–18 W · Ex db IIB T6 · Ex tb IIIC T80°C DbView product ›
BBJ sound and light alarmAC 220 V · Ex db IIC T6 · Ex tb IIIC T80°C DbView product ›
ZBD129 maintenance-free LED light20–40 W · Ex db IIC T6 Gb · Ex tb IIIC T80°C DbView product ›

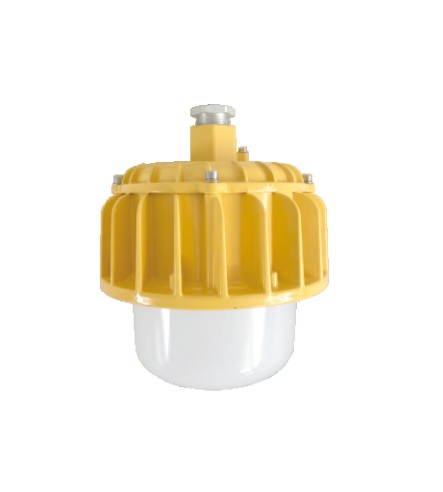

ZBD131 LED platform light30–100 W · Ex nR IIC T6 GcView product ›
ZBD150 LED maintenance-free floodlight50–400 W · Ex db IIC T6 GbView product ›
ZBD152 LED maintenance-free floodlight180–500 W · Ex db IIC T6 GbView product ›Tell us your zone, gas group, required wattage and mounting method and we will confirm the closest model, the exact Ex marking and lead time.
Request a quote
Send us the zone, gas group, required wattage and mounting method and we will return an indicative specification and lead time.
Choosing a luminaire: start with the fitting, not the wattage
Wattage is the last thing to fix, not the first. The order that avoids re-lighting a plant is: the zone and the group decide the marking, the mounting position decides the fitting type, and only then does the mounting height and the area to be lit decide how much light is needed. Seventeen luminaire models cover the range from 9 W to 500 W, in gas and dust versions.
| Model | Power | Marking | Size and beam logic |
|---|---|---|---|

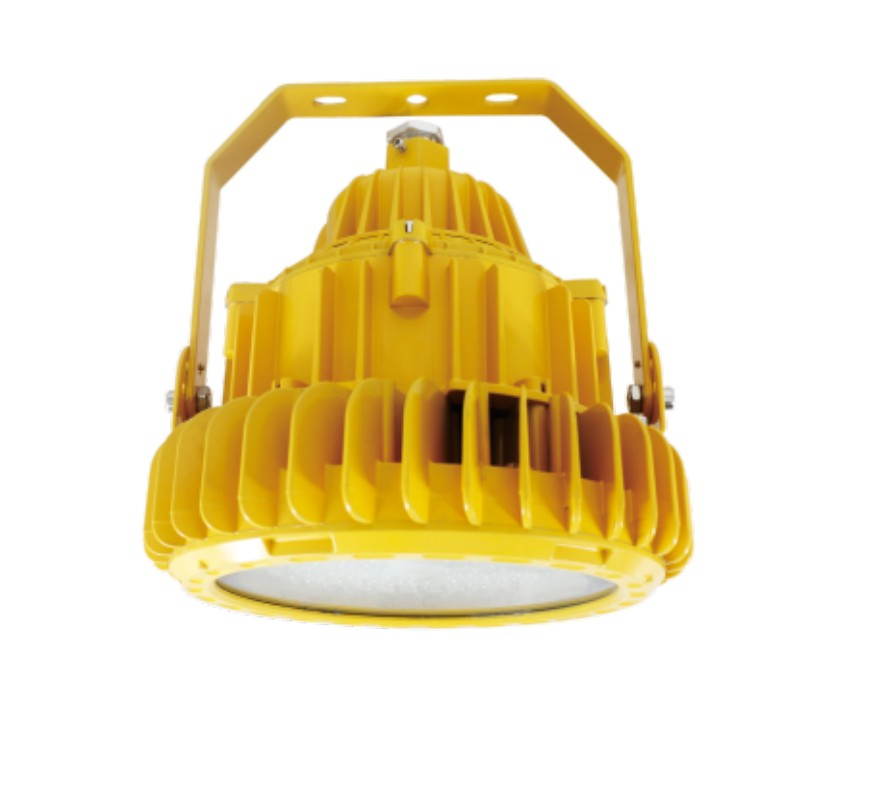

| ZBD107 | 30–150 W | Ex db IIC T6 | Compact body for general area lighting and low mounting heights |
| ZBD111 | 30–240 W | Ex db IIC T6 | Mid-size luminaire for pipe racks, walkways and platforms |

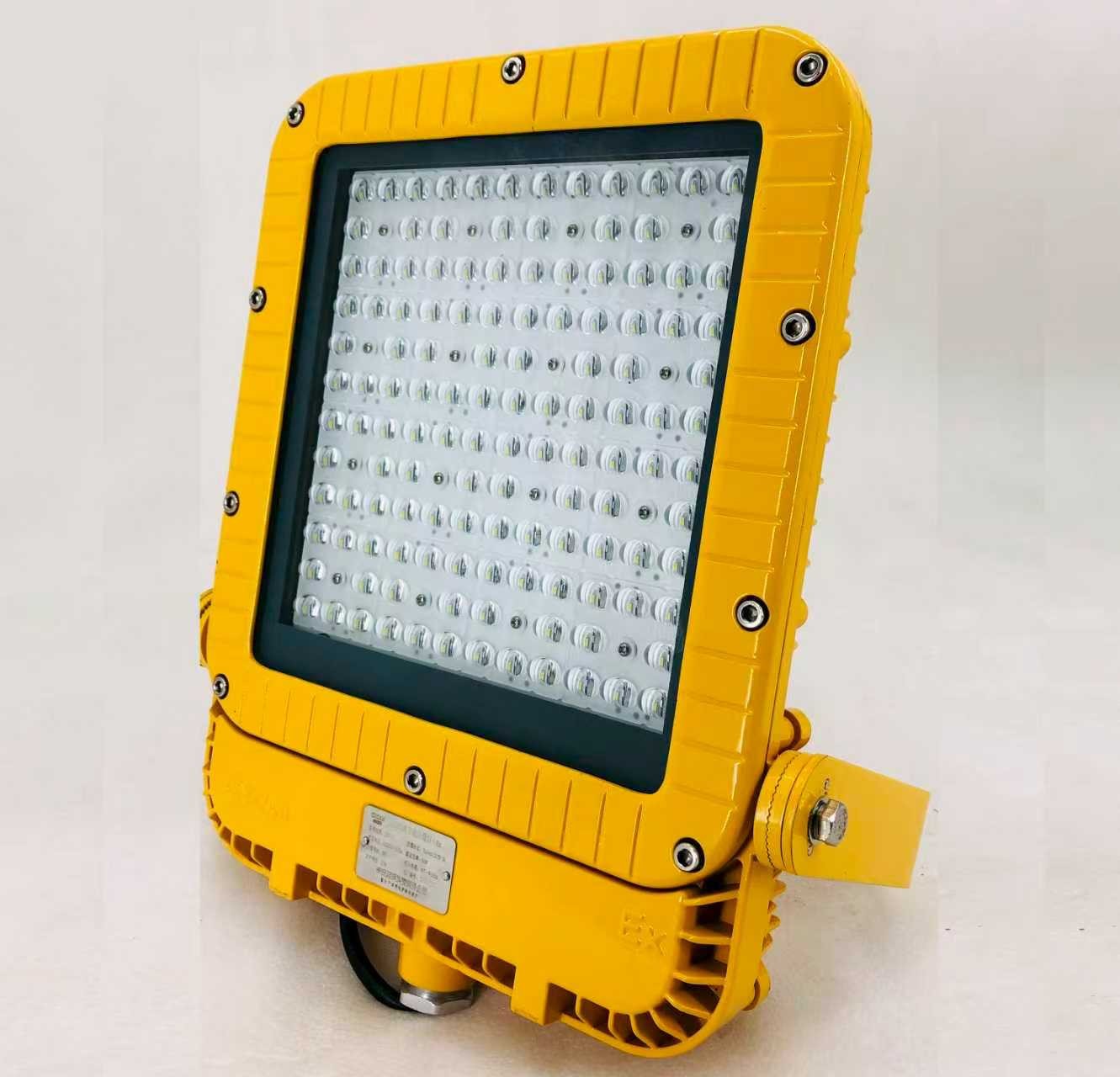

| ZBD113 | 30–300 W | Ex db eb mb IIB T6 | Square floodlight for wide, open areas and perimeter lighting |

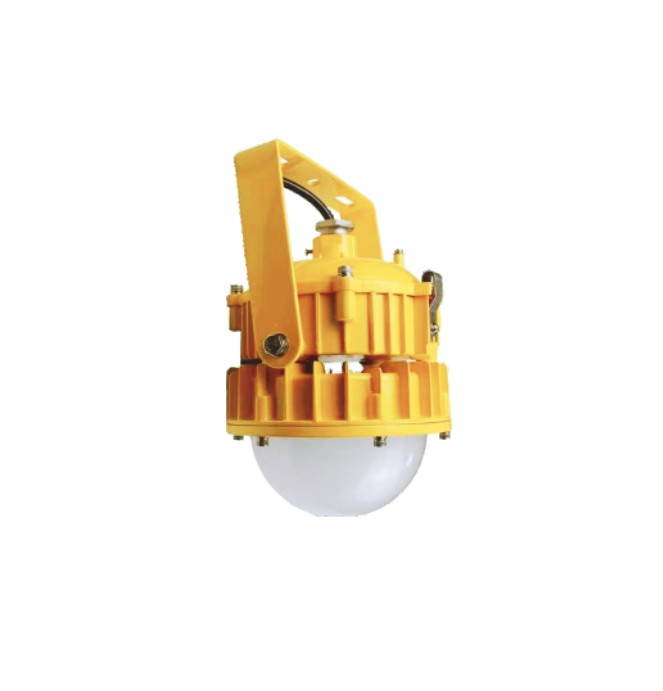

| ZBD127 | 30–50 W | Ex db IIC T6 | Small luminaire for tight spaces and local task lighting |

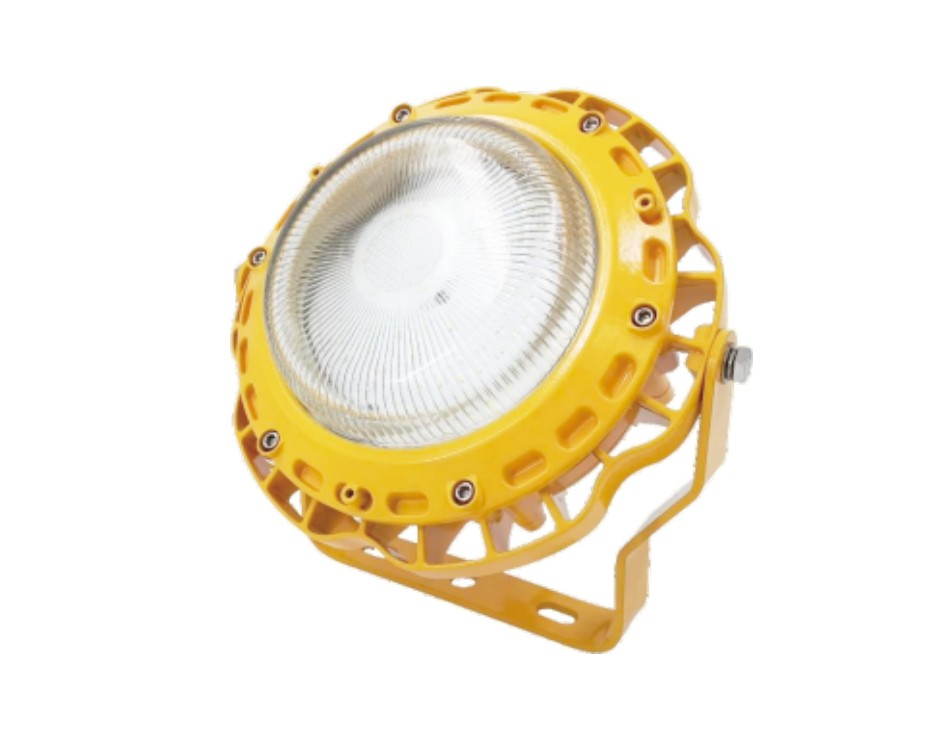

| ZBD133 | 50–100 W | Ex db IIC T6 | General-purpose unit for corridors, stairwells and annexes |

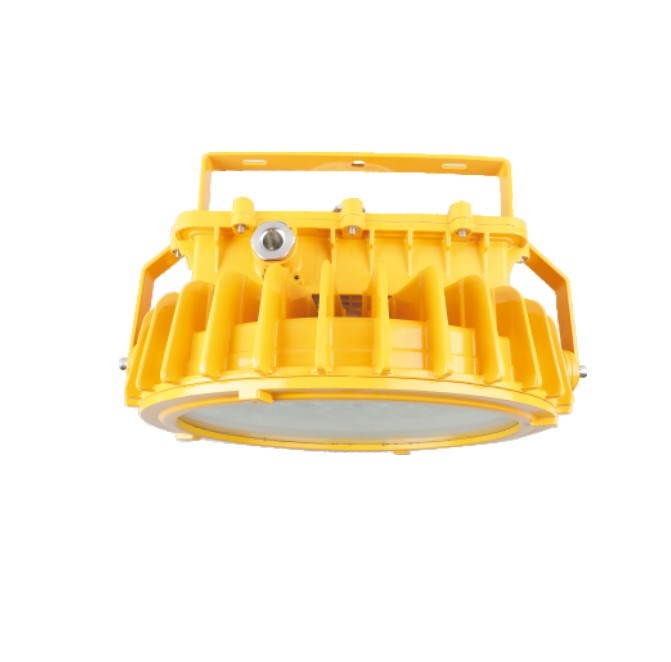

| ZBD140 | 80–240 W | Ex db eb mb IIC T6 | High-output unit for high mounting heights and large areas |

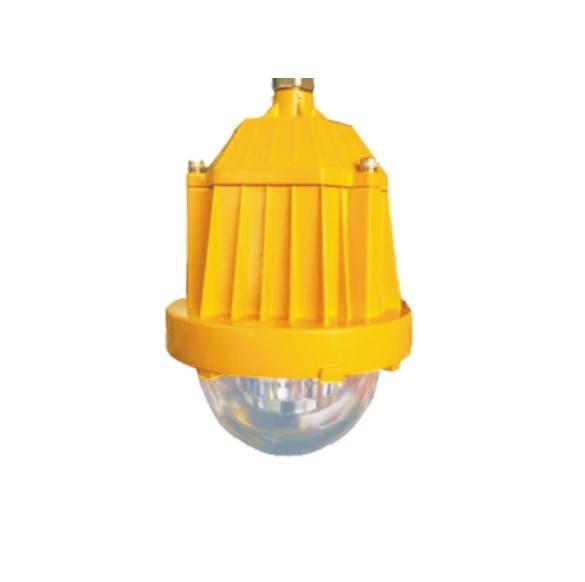

| ZBD119 | 30–50 W | Ex db IIC T6 Gb / Ex tb IIIC T80°C Db | Dome-lens platform light for walkways, platforms and tank tops |
| ZBD124 | 20–40 W | Ex db IIC T6 Gb / Ex tb IIIC T80°C Db | Maintenance-free oval-body light for local lighting and confined positions |

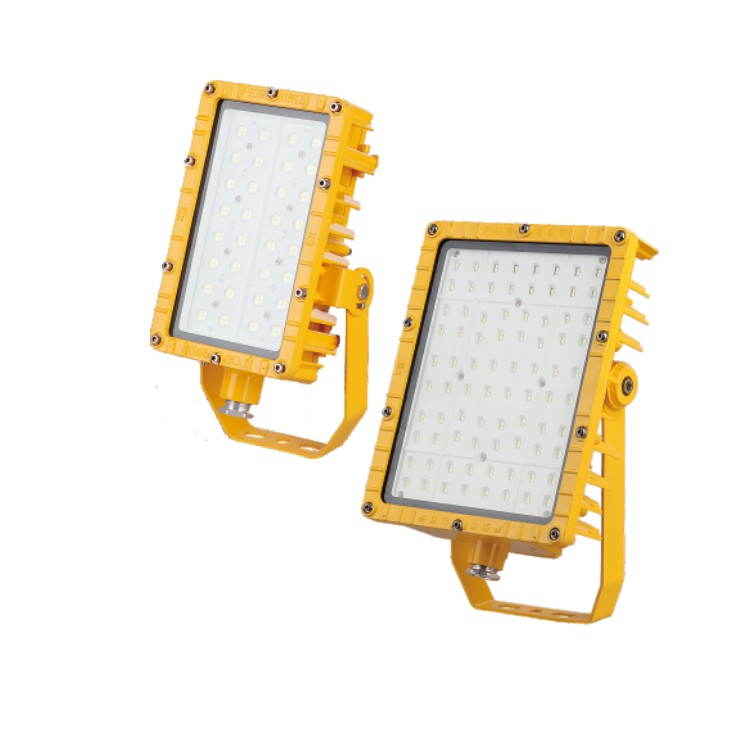

| ZBD154 | 70–150 W | Ex db IIC T6 Gb / Ex tb IIIC T80°C Db | Hinged-bracket floodlight in two sizes, for area and perimeter lighting |
| BYS | 9–18 W | Ex db eb mb IIC T5 Gb / Ex tb IIIC T95°C Db | All-plastic anti-corrosion body, one or two tubes, for corrosive and wash-down areas |
| ZBD111L | 30–240 W | Ex db IIC T6 Gb / Ex tb IIIC T80°C Db | Road light in four housing types, for roadways and perimeter lighting |
| ZBD190 | 20–70 W | Ex db IIC T6 Gb / Ex tb IIIC T80°C Db | Linear body in three lengths, for corridors, tunnels and workshops |

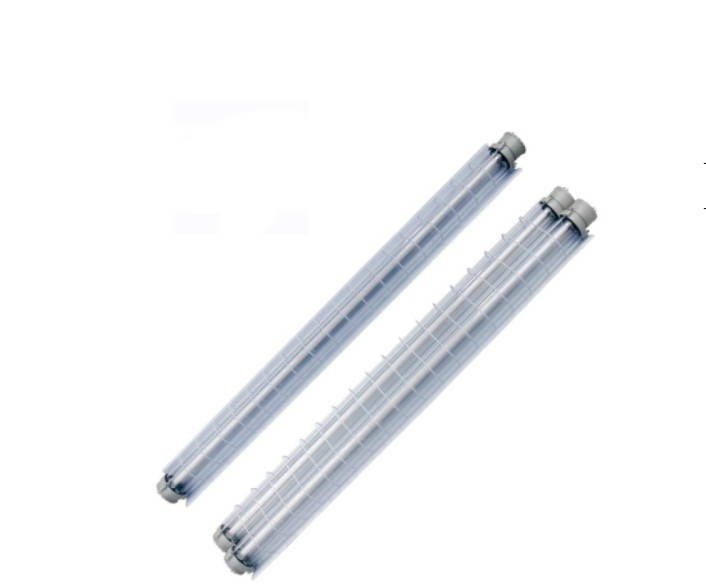

| BPY | 9–18 W | Ex db IIB T6 Gb / Ex tb IIIC T80°C Db | Flameproof twin-tube fluorescent luminaire with an optional emergency version |
| BBJ | AC 220 V | Ex db IIC T6 Gb / Ex tb IIIC T80°C Db | Flameproof sound and light alarm — audible and visual signalling in one certified body |
| ZBD129 | 20–40 W | Ex db IIC T6 Gb / Ex tb IIIC T80°C Db | Maintenance-free round LED light for platforms and walkways, with a U-bracket |
| ZBD131 | 30–100 W | Ex nR IIC T6 Gc / Ex tc IIIC T80°C Dc | Dome-lens platform light for Zone 2 gas and Zone 22 dust areas |
| ZBD150 | 50–400 W | Ex db IIC T6 Gb; Ex tb IIIC T80°C Db | Two-panel floodlight for high bays, perimeter and area lighting |
| ZBD152 | 180–500 W | Ex db IIC T6 Gb; Ex tb IIIC T80°C Db | High-output floodlight for large areas and high mounting heights |
Every model opens a full specification page with its own mounting and beam options. Tell us the mounting height, the area to be covered and the required illuminance and we will confirm which of the six fits, rather than starting from the wattage you had in mind.
Gas and dust: two markings, one installation
Refineries, chemical plants and process units usually contain both gas-hazardous and dust-hazardous areas, sometimes in the same building — a coal or grain handling section inside a plant, or a bagging area next to a process unit. Luminaries are rated for gas (Ex db) and dust (Ex tb) protection: Zone 1 and Zone 2 for gases and vapours, Zone 21 and Zone 22 for combustible dusts. A luminaire that carries only the gas marking is not the right choice for a dusty area, even if the enclosure is sealed, because the requirement is about surface temperature and dust layers, not only about ingress.
What actually decides the light level
Three things: the mounting height, the area and reflectivity of the surfaces, and whether the task needs general or local lighting. Higher mounting heights push the choice towards the larger models; walkways and pipe racks are usually lit from a low mounting height with a wider beam. Because our range includes both compact and high-output bodies, the same duty can often be met in more than one way — which is why the mounting height is one of the first questions we ask.
Installation and the parts around the luminaire
A luminaire keeps its rating only if its cable entry is closed correctly: an entry with a damaged seal, an unused way left open, or a gland that is not suitable for the cable type all compromise it. Brackets, poles, mounting arms and guards are part of the same argument, and they are usually ordered with the luminaires so that the installation drawing is complete. Where the luminaire is mounted on vibrating equipment, the supply is normally run in flexible conduit to keep the movement away from the entry.
Frequently asked questions
Can I use a higher wattage in the same body?
The body and the driver are rated as a set; the wattage range published for each model is the range it is certified and built for. Moving above it means moving to a larger model.
What is the difference between Ex d and Ex e for lighting?
Flameproof (Ex d) contains an internal ignition; increased safety (Ex e) prevents ignition by design and is used for the parts of the assembly where that applies, for example terminal compartments. Many luminaires use both, which is why markings such as Ex db eb appear on the label.
Do I need a different luminaire for Zone 21 or 22?
Dust areas are covered by the Ex tb marking. Confirm the dust group and the maximum surface temperature with the area classification for the zone before ordering.
Can the luminaires be supplied with brackets and poles?
Yes — tell us how the luminaire is to be mounted (ceiling, wall, pole, bracket, guard) and it will be supplied with the mounting arrangement rather than the head alone.
What about emergency lighting?
Handheld and emergency luminaires are part of the same lighting range, used for maintenance work and for escape routes in classified areas.
What to send us for a quote
- Zone and gas or dust group for each location
- Mounting height and the area to be lit, or the required illuminance
- Mounting method: ceiling, wall, pole, bracket or guard
- Local ambient temperature, inside or outside installation
- Quantity, and any requirement for emergency units
Request a quote with the zone, gas group, required wattage and mounting method and we will confirm the closest model and the exact Ex marking.
Prefer to see it running? Our factory and product videos show LED explosion-proof luminaires being cast, assembled and tested at the Wenzhou works.
Explosion-Proof Lighting: Frequently Asked Questions
Short, practical answers we give most often to engineers specifying hazardous-area lighting.
How do I read the Ex marking on an explosion-proof light?
Read it in four blocks: protection concept (Ex d flameproof, Ex e increased safety, Ex nA non-sparking, Ex t dust), gas or dust group (IIA/IIB/IIC, IIIA/IIIB/IIIC), temperature class (T1–T6, where T6 caps surface temperature at 85 °C), and equipment protection level (Gb for Zone 1, Gc for Zone 2, Db for Zone 21, Dc for Zone 22). A typical luminaire for a combined gas and dust area is marked Ex d IIB T6 Gb / Ex tb IIIC T80 °C Db.
Which luminaire suits Zone 1, Zone 2, Zone 21 and Zone 22?
Zone 1 (gas, occasional risk) needs flameproof Ex d or increased-safety Ex e construction with EPL Gb. Zone 2 (gas, abnormal only) may use Ex nA / Ex ec with EPL Gc. Dust Zones 21 and 22 need Ex tb enclosures with EPL Db or Dc and an IP6X ingress rating so dust cannot build up inside. Many of our fixtures carry a dual gas plus dust marking so one part number covers a mixed area.
How do I size wattage and beam angle?
Work backwards from the illuminance you must reach. Find the lux the task needs (roughly 30–50 lux for walkways and tank farms, 100–200 lux for general process areas, 300 lux and above for inspection benches), multiply by the area, then divide by the luminaire lumens and a maintenance factor of about 0.7 to allow for dirt and ageing. Our LED luminaires deliver roughly 120–150 lm/W. Use 60–90° optics for high bays and 120° for broad general lighting.
Can the same luminaire be used in hot, wet or corrosive areas?
Yes, provided the ambient and housing match the duty: enclosures are sealed to IP66 (IP67 for washdown and jet-spray areas) and T6 units keep surface temperature within limits across a wide ambient range. For coastal, offshore and chemical service we supply die-cast aluminium bodies with epoxy or polyester coating, or 316 stainless steel versions where chlorides and acids are present.
Question not answered here? Send it to our engineering team — we answer hazardous-area selection questions with the relevant standard referenced.
