ZSFW6110 Omni-Directional Automatic Flood Work Light
A trailer-mounted flood light on a manual or pneumatic mast reaching 4.5 m or 6 m, with a gasoline or diesel generator and a rotating lamp yoke. Lighting, mast, generator and chassis are all selected to order — 85 kg.
- 50–300 W
- AC 220 V
- IP65
- mast 4.5–6 m
- 2 / 4 lamps
- 85 kg
- Lighting system — Rated power — 50W / 100W / 150W / 200W / 300W
- Lighting system — Protection grade — IP65
- Dimensions — 2200×620×830mm
Technical data
| Parameter | Value |
|---|---|
| Lighting system — Light sources | Gas Discharge, LED, Halogen |
| Lighting system — Rated power | 50W / 100W / 150W / 200W / 300W |
| Lighting system — Input voltage | AC220V |
| Lighting system — Protection grade | IP65 |
| Lighting system — No. of lamps | 2 / 4 |
| Lifting system — Mast | Manual / Pneumatic |
| Lifting system — Lifting height | 4.5m / 6m |
| Lifting system — Mast material | Aluminum Alloy |
| Lifting system — Mast surface colour | Natural Metal |
| Power system — Generator type | Gasoline / Diesel |
| Power system — Starting mode | Manual / Electric |
| Power system — Cooling mode | Air-Cooled |
| Power system — Output voltage | AC220V / AC380V |
| Control system — Control panel | Rotary Handle Switch |
| Control system — Rotating lamp yoke | Yes/No |
| Control system — Remote control | Wireless Remote |
| Chassis system — Base plate material | Carbon Steel |
| Chassis system — Wheels | 2″ Fixed Caster, 2″ Swivel Caster |
| Chassis system — Mobility | Wheels |
| Dimensions | 2200×620×830mm |
| Total weight | 85kg |
Features
- Rated power 50W / 100W / 150W / 200W / 300W.
- Ingress protection IP65.
- Dimensions 2200×620×830mm.
- Rotating lamp yoke and wireless remote control.
- Generator, mast and lamp count are selected to order.
Where it is used
Temporary and portable lighting tasks in industrial plants: inspection rounds, shutdown and turnaround work, tank and vessel cleaning, cable and pipe routing, spill response, and any position where a fixed luminaire is not practical.
Need a quotation for the ZSFW6110?
Tell us the area classification, how long the light has to run on one charge and how it will be mounted, and our engineers will confirm the configuration and prepare the quotation for you.

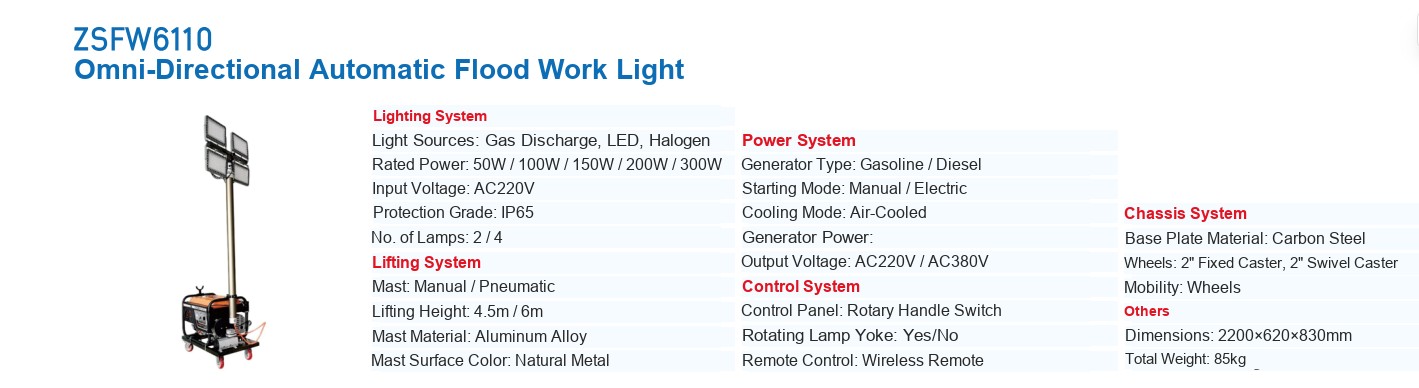

The manufacturer’s sheet for this model does not state an Ex marking. Portable work lights for hazardous areas are specified against the area classification on site — send us the zone, the gas or dust group and the temperature class you need, and our engineers will confirm the marking and the correct model before you order. The sheet lists the generator power row without a value — please confirm the generator size you need with our engineers. Technical data is reproduced from the manufacturer’s sheet for model ZSFW6110. Dimensions are given in millimetres unless stated otherwise.
