ZSFW6180 Solar Mobile Lighting Tower
A trailer-mounted solar lighting tower: 100 W to 600 W of folding solar panels charging a 5 kWh to 20 kWh battery, with a mast reaching 3 m to 10 m and two to eight LED lamps. Towed at up to 60 km/h — 360 kg.
- 50–1000 W LED
- solar 100–600 W
- 5–20 kWh
- mast 3–10 m
- IP65
- 360 kg
- Lighting system — Rated power — 50/100/150/200/300/400/500/1000W
- Lighting system — Light source — LED Lamps
- Lighting system — Protection grade — IP65
- Dimensions — 2800×3400×1600mm

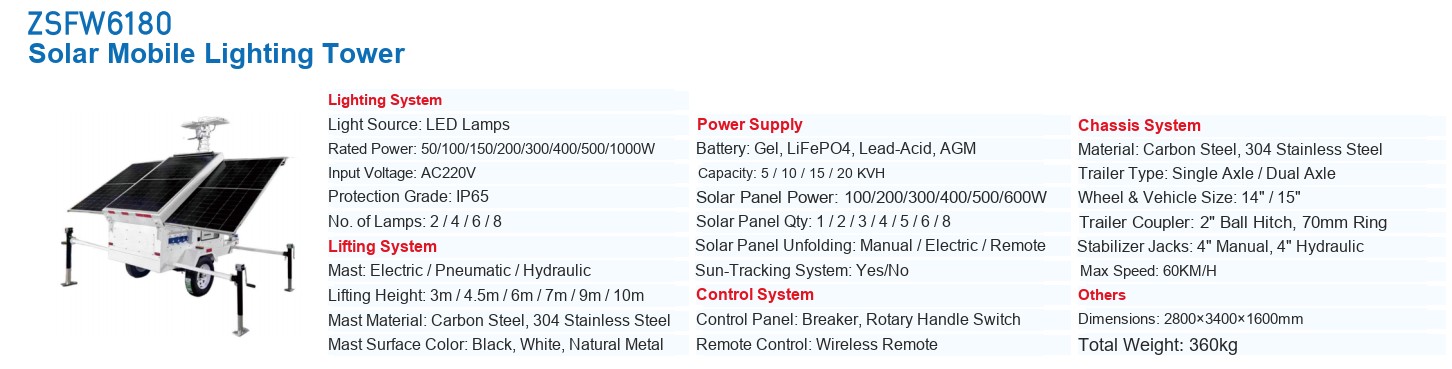

Technical data
| Parameter | Value |
|---|---|
| Lighting system — Light source | LED Lamps |
| Lighting system — Rated power | 50/100/150/200/300/400/500/1000W |
| Lighting system — Input voltage | AC220V |
| Lighting system — Protection grade | IP65 |
| Lighting system — No. of lamps | 2 / 4 / 6 / 8 |
| Lifting system — Mast | Electric / Pneumatic / Hydraulic |
| Lifting system — Lifting height | 3m / 4.5m / 6m / 7m / 9m / 10m |
| Lifting system — Mast material | Carbon Steel, 304 Stainless Steel |
| Lifting system — Mast surface colour | Black, White, Natural Metal |
| Power supply — Battery | Gel, LiFePO4, Lead-Acid, AGM |
| Power supply — Capacity | 5 / 10 / 15 / 20 KWH |
| Power supply — Solar panel power | 100/200/300/400/500/600W |
| Power supply — Solar panel qty | 1 / 2 / 3 / 4 / 5 / 6 / 8 |
| Power supply — Solar panel unfolding | Manual / Electric / Remote |
| Power supply — Sun-tracking system | Yes/No |
| Control system — Control panel | Breaker, Rotary Handle Switch |
| Control system — Remote control | Wireless Remote |
| Chassis system — Material | Carbon Steel, 304 Stainless Steel |
| Chassis system — Trailer type | Single Axle / Dual Axle |
| Chassis system — Wheel & vehicle size | 14″ / 15″ |
| Chassis system — Trailer coupler | 2″ Ball Hitch, 70mm Ring |
| Chassis system — Stabilizer jacks | 4″ Manual, 4″ Hydraulic |
| Max speed | 60KM/H |
| Dimensions | 2800×3400×1600mm |
| Total weight | 360kg |
Features
- Rated power 50/100/150/200/300/400/500/1000W.
- Ingress protection IP65.
- Dimensions 2800×3400×1600mm.
- Solar panels fold out for charging and stow for towing; sun-tracking optional.
- No generator needed — the tower runs from the battery bank.
Where it is used
Temporary and portable lighting tasks in industrial plants: inspection rounds, shutdown and turnaround work, tank and vessel cleaning, cable and pipe routing, spill response, and any position where a fixed luminaire is not practical.
Need a quotation for the ZSFW6180?
Tell us the area classification, how long the light has to run on one charge and how it will be mounted, and our engineers will confirm the configuration and prepare the quotation for you.
The manufacturer’s sheet for this model does not state an Ex marking. Portable work lights for hazardous areas are specified against the area classification on site — send us the zone, the gas or dust group and the temperature class you need, and our engineers will confirm the marking and the correct model before you order. Technical data is reproduced from the manufacturer’s sheet for model ZSFW6180. Dimensions are given in millimetres unless stated otherwise.
