ZFW6122 LED Mobile Work Light
A 40 W LED work light on a tripod mast reaching 2.2 m. DC 14.8 V, 10 Ah, IP66: at least 4 h at full brightness, 8 h spot strong, 16 h spot working, 6 h flood strong and 12 h flood working, recharged in 6 h or less — 4 kg or less.
- 40 W LED
- DC 14.8 V
- 10 Ah
- IP66
- max height 2.2 m
- ≤4 kg
- Rated voltage — DC14.8V
- Rated capacity — 10Ah
- Light source — 40W LED
- Charging time — ≤6h
- Protection grade — IP66
- Dimensions — 90×135×1125mm (Folded)
Technical data
| Parameter | Value |
|---|---|
| Light source | 40W LED |
| Rated voltage | DC14.8V |
| Rated capacity | 10Ah |
| Continuous working time (full brightness) | ≥4h |
| Spot strong light | ≥8h |
| Spot working light | ≥16h |
| Flood strong light | ≥6h |
| Flood working light | ≥12h |
| Charging time | ≤6h |
| Protection grade | IP66 |
| Max height | 2.2m |
| Dimensions | 90×135×1125mm (Folded) |
| Product weight | ≤4Kg |
Features
- Light source: 40W LED.
- Rechargeable: 10Ah battery on a DC14.8V supply — ≤6h to recharge.
- Ingress protection IP66.
- Dimensions 90×135×1125mm (Folded).
- Tripod mast with a maximum height of 2.2 m; folds to 1 125 mm.
Where it is used
Temporary and portable lighting tasks in industrial plants: inspection rounds, shutdown and turnaround work, tank and vessel cleaning, cable and pipe routing, spill response, and any position where a fixed luminaire is not practical.
Need a quotation for the ZFW6122?
Tell us the area classification, how long the light has to run on one charge and how it will be mounted, and our engineers will confirm the configuration and prepare the quotation for you.
More in this series
Other models in the same range, so you can compare running times, mounting and protection grades side by side.

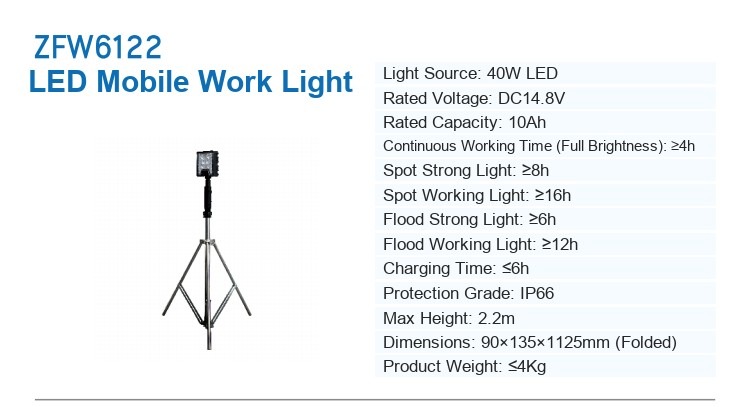

The manufacturer’s sheet for this model does not state an Ex marking. Portable work lights for hazardous areas are specified against the area classification on site — send us the zone, the gas or dust group and the temperature class you need, and our engineers will confirm the marking and the correct model before you order. Technical data is reproduced from the manufacturer’s sheet for model ZFW6122. Dimensions are given in millimetres unless stated otherwise.
