ZIW5500 Portable Strong-Light Inspection Work Light
A hand-held inspection light with a front lamp and a flat side reflector: 3 W at DC 3.7 V on a 4 400 mAh battery, ten hours on strong light and up to fifty hours in the ultra-long working mode. IP65, 500 ± 10 g.
- 3 W
- DC 3.7 V
- 4 400 mAh
- 10 h / 20 h / up to 50 h
- IP65
- 500±10 g
- Rated voltage — DC3.7V
- Rated power — 3W
- Rated capacity — 4400mAh
- Discharge time — 10h (Strong Light) / 20h (Working Light)
- Protection grade — IP65
- Dimensions — 194×74×115mm

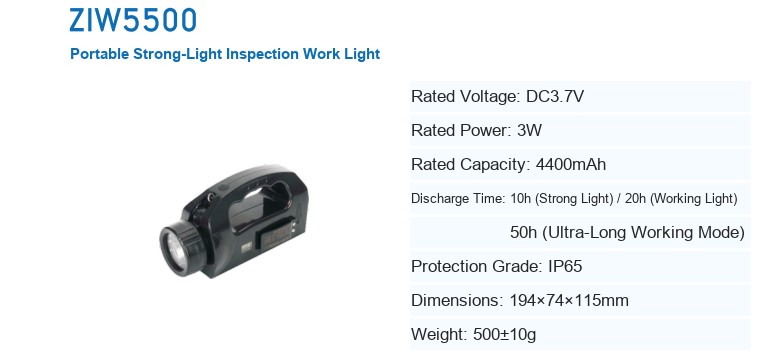

Technical data
| Parameter | Value |
|---|---|
| Rated voltage | DC3.7V |
| Rated power | 3W |
| Rated capacity | 4400mAh |
| Discharge time | 10h (Strong Light) / 20h (Working Light) |
| 50h (Ultra-Long Working Mode) | |
| Protection grade | IP65 |
| Dimensions | 194×74×115mm |
| Weight | 500±10g |
Features
- Rated power 3W.
- Rechargeable: a 4400mAh battery, a DC3.7V supply, 10h (Strong Light) / 20h (Working Light) per charge.
- Ingress protection IP65.
- Dimensions 194×74×115mm, 500±10g.
- Ultra-long working mode: up to 50 h from one charge.
Where it is used
Temporary and portable lighting tasks in industrial plants: inspection rounds, shutdown and turnaround work, tank and vessel cleaning, cable and pipe routing, spill response, and any position where a fixed luminaire is not practical.
Need a quotation for the ZIW5500?
Tell us the area classification, how long the light has to run on one charge and how it will be mounted, and our engineers will confirm the configuration and prepare the quotation for you.
The manufacturer’s sheet for this model does not state an Ex marking. Portable work lights for hazardous areas are specified against the area classification on site — send us the zone, the gas or dust group and the temperature class you need, and our engineers will confirm the marking and the correct model before you order. Technical data is reproduced from the manufacturer’s sheet for model ZIW5500. Dimensions are given in millimetres unless stated otherwise.
