ZSW2186 Multifunctional Work Light
A slim bar-shaped work light with a spotlight at one end, a flood panel along the body and a red/blue warning signal. 3 W spot and 5.6 W or 9.2 W flood, 2 500 mAh or 5 000 mAh, two lengths — 195 g or 270 g.
- spot 3 W
- flood 5.6/9.2 W
- 2 500 / 5 000 mAh
- red/blue warning
- 195 / 270 g
- Rated voltage — DC5V (Input/Output)
- Rated capacity — 2500mAh/5000mAh
- Dimensions — 195×41.2×43.5mm (A)
- Weight — 195g(A) / 270g(B)
Technical data
| Parameter | Value |
|---|---|
| Rated voltage | DC5V (Input/Output) |
| Rated capacity | 2500mAh/5000mAh |
| Spotlight power | 3W |
| Floodlight power | 5.6W/9.2W |
| Lighting time | Spot ≥10h/15h Flood ≥6h/12h |
| Warning signal | Red, Blue, Blue-Red Flashing |
| Dimensions | 195×41.2×43.5mm (A) |
| 260×41.2×43.5mm (B) | |
| Weight | 195g(A) / 270g(B) |
Features
- Rechargeable: a 2500mAh/5000mAh battery, a DC5V (Input/Output) supply.
- Dimensions 195×41.2×43.5mm (A), 195g(A) / 270g(B).
- Red, blue and blue-red flashing warning signal for marking the work position.
Where it is used
Temporary and portable lighting tasks in industrial plants: inspection rounds, shutdown and turnaround work, tank and vessel cleaning, cable and pipe routing, spill response, and any position where a fixed luminaire is not practical.
Need a quotation for the ZSW2186?
Tell us the area classification, how long the light has to run on one charge and how it will be mounted, and our engineers will confirm the configuration and prepare the quotation for you.

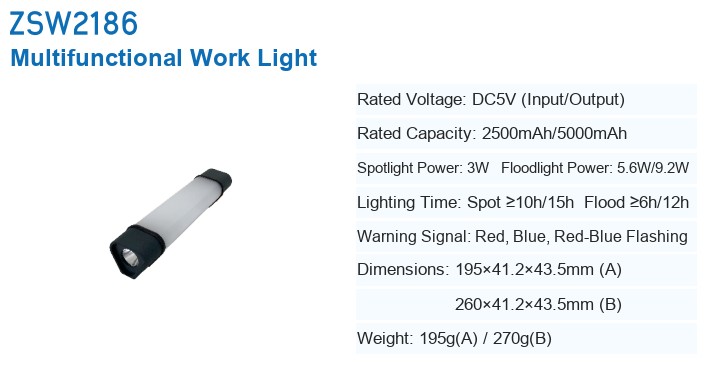

The manufacturer’s sheet for this model does not state an Ex marking. Portable work lights for hazardous areas are specified against the area classification on site — send us the zone, the gas or dust group and the temperature class you need, and our engineers will confirm the marking and the correct model before you order. The sheet gives two sizes (A: 195 mm, B: 260 mm) and two battery capacities; no protection (IP) grade or charging time is stated. Please confirm the configuration you need. Technical data is reproduced from the manufacturer’s sheet for model ZSW2186. Dimensions are given in millimetres unless stated otherwise.
