ZBD107 Explosion-Proof LED Light
A flameproof LED luminaire for Zone 1 and Zone 2 gas atmospheres and Zone 21 / Zone 22 combustible dust areas. The die-cast body carries deep radial cooling fins, the light source sits behind a bolted toughened-glass lens ring, and the fixture mounts on an adjustable U-shaped yoke that allows the beam to be aimed after installation. Three shell sizes cover 30 W to 150 W.
- Ex db IIC T6 Gb
- Ex tb IIIC T80°C Db
- 30–150 W
- AC 220 V / 50 Hz
- G3/4" cable entry
- Ex markingEx db IIC T6 Gb; Ex tb IIIC T80°C Db
- Rated power30 W – 150 W
- Rated voltageAC 220 V / 50 Hz
- Cable entryG3/4"
- Shell typesI / II / III — 50 W, 100 W, 150 W
- Weight5.2 kg / 6.5 kg / 8.2 kg
Technical data
| Parameter | Value |
|---|---|
| Model | ZBD107 |
| Rated voltage | AC 220 V / 50 Hz |
| Rated power | 30 W – 150 W |
| Ex marking | Ex db IIC T6 Gb; Ex tb IIIC T80°C Db |
| Cable entry thread | G3/4" |
| Shell types | I (50 W), II (100 W), III (150 W) |
| Net weight | 5.2 kg / 6.5 kg / 8.2 kg |
| Type of protection | Flameproof (Ex db) with dust ignition protection (Ex tb) |
| Lens | Toughened glass, bolted retaining ring |
| Mounting | Adjustable U-shaped yoke bracket with three fixing holes |
Shell types and dimensions

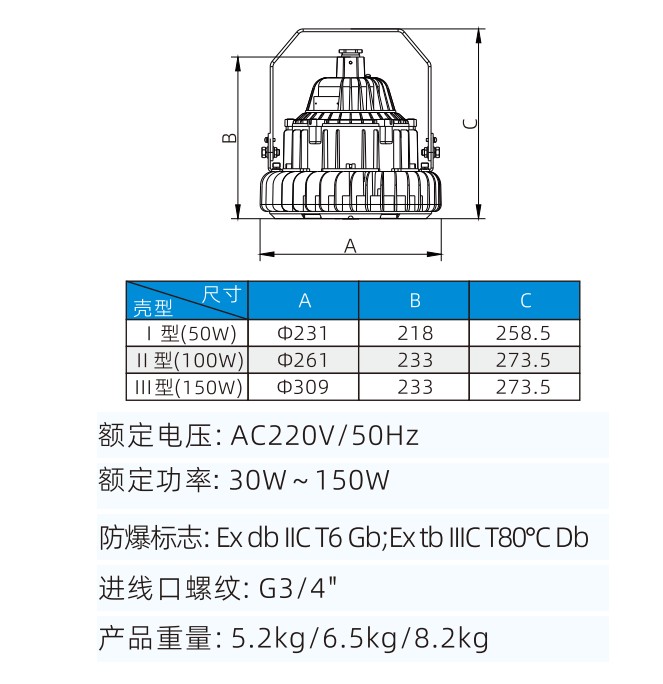

| Shell type | Power | A | B | C | Net weight |
|---|---|---|---|---|---|
| Type I | 50 W | Φ231 | 218 | 258.5 | 5.2 kg |
| Type II | 100 W | Φ261 | 233 | 273.5 | 6.5 kg |
| Type III | 150 W | Φ309 | 233 | 273.5 | 8.2 kg |
Features
- Flameproof Ex db IIC T6 Gb protection for Zone 1 and Zone 2 gas atmospheres, covering gas groups IIA, IIB and IIC at temperature class T6.
- Ex tb IIIC T80°C Db dust ignition protection for Zone 21 and Zone 22 combustible dust areas.
- Die-cast body with deep radial cooling fins that carry heat away from the LED engine.
- Toughened glass lens held by a bolted retaining ring.
- Adjustable U-shaped yoke bracket with three fixing holes, so the beam can be aimed after installation.
- Three shell sizes covering 50 W, 100 W and 150 W within a 30 W – 150 W power range.
- G3/4" cable entry thread.
- High-visibility yellow finish for easy identification in plant areas.
Applications
Because the ZBD107 carries both gas (Ex db IIC T6 Gb) and dust (Ex tb IIIC T80°C Db) protection, it is used in hazardous areas such as:
- Petrochemical plants and refineries
- Oil and gas processing, pumping and metering stations
- Chemical, pharmaceutical and coating works
- Paint, solvent and flammable-liquid stores
- Loading bays, tank farms and utility areas inside classified zones
- Dust-handling plants such as grain, wood, coal and metal powder processing
