Model ZBD113
ZBD113 Explosion-Proof Square Floodlight
A square-bodied flameproof LED floodlight for Zone 1 and Zone 2 gas atmospheres and Zone 21 / Zone 22 combustible dust areas. The die-cast housing carries a large LED array behind a bolted toughened-glass window, and the fixture mounts on an adjustable bracket so the beam can be aimed after installation. Four housing sizes cover 70 W to 300 W within a 30 W – 300 W rated power range.
- Ex db eb mb IIB T6 Gb
- Ex tb IIIC T80°C Db
- 30–300 W
- AC 220 V / 50 Hz
- G3/4" cable inlet
- Ex markingEx db eb mb IIB T6 Gb; Ex tb IIIC T80°C Db
- Rated power30 W – 300 W
- Rated voltageAC 220 V / 50 Hz
- Cable inlet threadG3/4"
- Housing typesI / II / III / IV — 70 W, 120 W, 200 W, 300 W
- Net weight6.2 kg / 8.1 kg / 11 kg / 17.5 kg
Technical data
| Parameter | Value |
|---|---|
| Model | ZBD113 |
| Rated voltage | AC 220 V / 50 Hz |
| Rated power | 30 W – 300 W |
| Ex marking | Ex db eb mb IIB T6 Gb; Ex tb IIIC T80°C Db |
| Cable inlet thread | G3/4" |

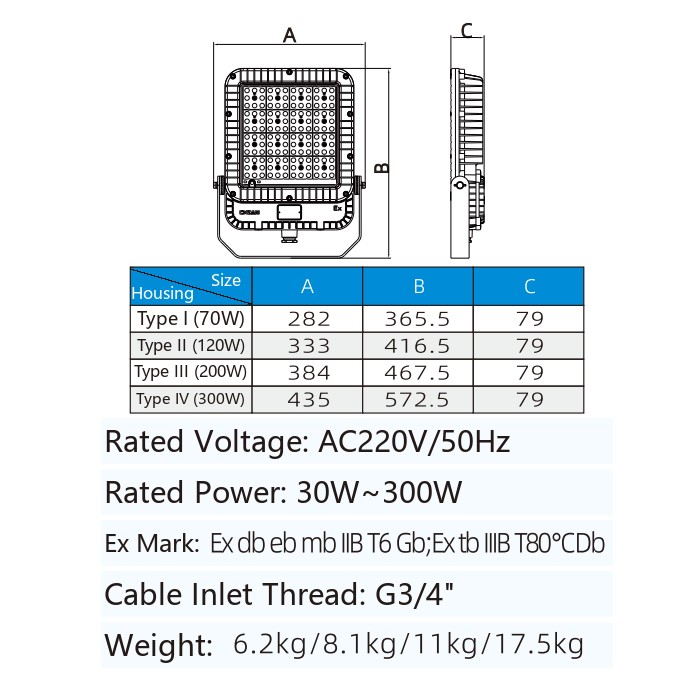

| Housing types | I (70 W), II (120 W), III (200 W), IV (300 W) |
| Net weight | 6.2 kg / 8.1 kg / 11 kg / 17.5 kg |
| Type of protection | Flameproof (Ex db) combined with increased safety (Ex eb) and encapsulation (Ex mb); dust ignition protection (Ex tb) |
| Gas group / temperature class | IIB / T6 |
| Window | High borosilicate tempered glass, bolted retaining frame |
| Luminous efficacy | Above 117 Lm/W (whole lamp); LED chips rated above 150 Lm/W |
| Beam angle | 60° / 90° / 120° — optical lens |
| Adjustable angle | Up to 216° — gear-type fixing ring |
| LED driver | Built-in constant current and constant voltage power supply with wide voltage input, constant power output and short-circuit protection |
| Fasteners | High corrosion-resistant stainless steel, inside and outside |
| Mounting | Adjustable bracket |

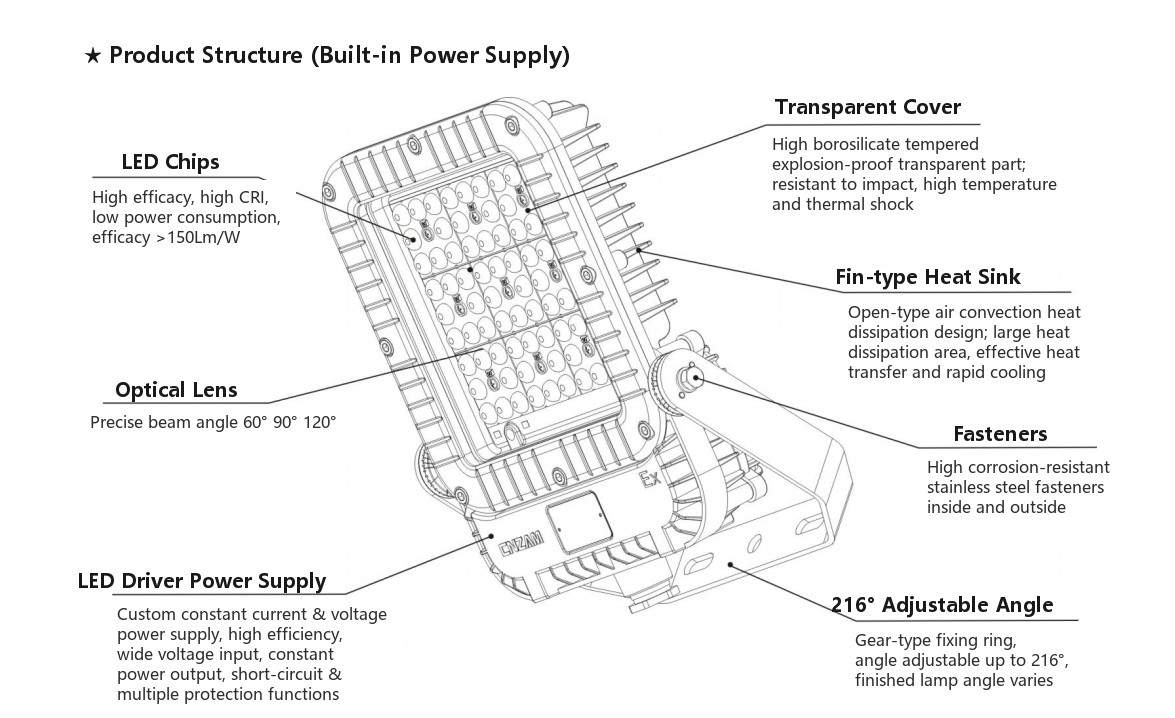

Construction and optics
- LED chips — high efficacy, high CRI and low power consumption, with luminous efficacy above 150 Lm/W.
- Optical lens — precise beam angles of 60°, 90° and 120°.
- Transparent cover — high borosilicate tempered explosion-proof transparent part, resistant to impact, high temperature and thermal shock.
- Fin-type heat sink — open-type air convection heat dissipation design with a large dissipation area for effective heat transfer and rapid cooling.
- Fasteners — high corrosion-resistant stainless steel fasteners inside and outside.
- LED driver power supply — built-in custom constant current and constant voltage supply with high efficiency, wide voltage input, constant power output and short-circuit plus multiple protection functions.
- 216° adjustable angle — gear-type fixing ring, the lamp angle can be adjusted up to 216°.
Features
- Ex db flameproof protection combined with Ex eb increased safety and Ex mb encapsulation, marked for gas group IIB at temperature class T6 — suitable for Zone 1 and Zone 2 gas atmospheres.
- Ex tb IIIC T80°C Db dust ignition protection for Zone 21 and Zone 22 combustible dust areas.
- Square die-cast housing with a large LED array behind a high borosilicate tempered glass window held by a bolted retaining frame.
- Yellow high-visibility finish for easy identification in plant areas.
- Adjustable mounting bracket, so the beam can be aimed after installation.
- Four housing sizes covering 70 W, 120 W, 200 W and 300 W within a 30 W – 300 W rated power range.
- Rated for AC 220 V / 50 Hz supplies.
- G3/4" cable inlet thread.
Applications
Because the ZBD113 carries both gas (Ex db eb mb IIB T6 Gb) and dust (Ex tb IIIC T80°C Db) protection, it is used in hazardous areas such as:
- Petrochemical plants and refineries
- Oil and gas processing, pumping and metering stations
- Chemical, pharmaceutical and coating works
- Paint, solvent and flammable-liquid stores
- Loading bays, tank farms and utility areas inside classified zones
- Dust-handling plants such as grain, wood, coal and metal powder processing
