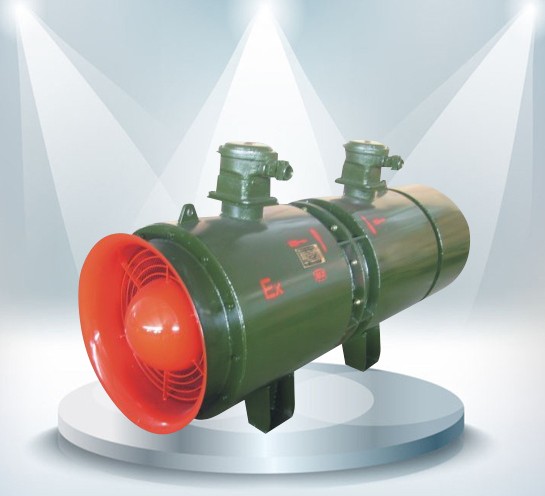

FBCD Mine Flameproof Extraction-Type Contra-Rotating Axial Fan
A new-generation energy-saving extraction-type local ventilation fan for underground coal mines: compact structure, low noise, high air pressure, large flow and high efficiency. With two-stage contra-rotating impellers it produces the same air volume and pressure as ordinary axial fans with fewer fans or a longer ventilation distance, and it can run as a complete unit or in stages to cut energy consumption.
- Mine flameproof
- Extraction type
- Contra-rotating
- Composite silencing
- No.5.0 to No.7.5
- 2×5.5 to 2×45 kW
- Sizes — No.5.0 to No.7.5 (9 duty points)
- Motor power — 2×5.5 to 2×45 kW
- Air volume — 140 to 900 m³/min
- Static pressure — 400 to 6800 Pa
- Efficiency — ≥60% / ≥65%
- Noise — ≤30 / ≤25 dB(A)
Product features
The FBCD mine flameproof extraction-type contra-rotating axial local ventilation fan (hereinafter referred to as the extraction-type fan) is the latest generation of energy-saving local ventilation fans developed and manufactured by our company. This series of extraction-type fans features a compact structure, low noise, high air pressure, large air volume and high efficiency. Compared with ordinary axial fans, to produce the same air volume and air pressure the extraction-type fan requires fewer fan units or allows a longer ventilation distance. Its compact structure makes it easy to transport and install during construction work. According to different ventilation requirements it can be used either as a complete unit or in stages, reducing energy consumption and saving energy. Its structural type is: mine flameproof, two-stage contra-rotating impellers, external composite silencing, axial flow.
Scope of application
The fan is suitable for extraction-type local ventilation in underground coal mine environments containing explosive substances (gas and coal dust). It can extract local gas accumulations underground, or work together with dust-removal equipment to remove dust at the working face. With high efficiency and low noise, high air pressure and large air volume, it is ideal equipment for extracting gas and dust in underground coal mines.
Model designation

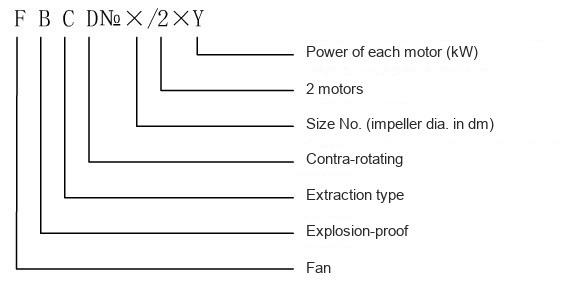

In the model code F B C D №x / 2×y: F = fan, B = explosion-proof, C = extraction type, D = contra-rotating, №x = size number (impeller diameter in dm), 2 = two motors and y = power of each motor in kW. For example, FBCD No.5.0/2×7.5 is a size No.5.0 fan (Φ500 mm impeller) driven by two 7.5 kW motors.
Structure

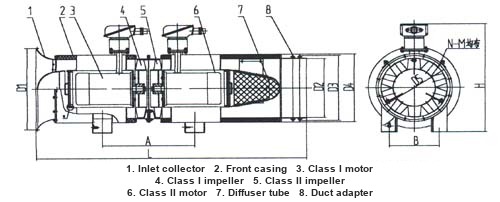

The fan consists of an inlet collector, front casing, two flameproof motors with first- and second-stage impellers, a diffuser tube and a duct adapter, as shown below. The two impellers rotate against each other (contra-rotating), so no guide vanes are needed and the airflow leaves the fan without swirl.
Main technical parameters
| Size No. | Speed (r/min) | Motor model | Motor power (kW) | Rated voltage (V) | Rated current (A) | Air volume (m³/min) | Static pressure (Pa) | Max. static pressure efficiency (%) | Specific A sound level [dB(A)] | Impeller dia. (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| No.5.0 | 2900 | YBF2-132S1-2 | 2×5.5 | 380/660, 660/1140 | 11.1/6.4, 6.4/3.7 | 200–140 | 400–2600 | ≥60 | ≤30 | Φ500 |
| YBF2-132S2-2 | 2×7.5 | 380/660, 660/1140 | 14.9/8.6, 8.6/4.96 | 220–160 | 500–2900 | |||||
| No.5.6 | 2900 | YBF2-160M1-2 | 2×11 | 380/660, 660/1140 | 21.6/12.4, 12.4/7.16 | 280–200 | 700–3200 | ≥65 | ≤25 | Φ560 |
| No.6.0 | 2900 | YBF2-160M2-2 | 2×15 | 380/660, 660/1140 | 28.8/16.6, 16.6/9.58 | 400–270 | 800–3600 | ≥65 | ≤25 | Φ600 |
| YBF2-160L-2 | 2×18.5 | 380/660, 660/1140 | 35.5/20.4, 20.4/11.7 | 420–270 | 850–3900 | |||||
| No.6.3 | 2900 | YBF2-180M-2 | 2×22 | 380/660, 660/1140 | 41.0/23.6, 23.6/13.6 | 450–280 | 900–4200 | ≥65 | ≤25 | Φ630 |
| YBF2-200L1-2 | 2×30 | 380/660, 660/1140 | 55.5/32.0, 32.0/18.4 | 600–400 | 900–4500 | |||||
| No.7.5 | 2900 | YBF2-200L2-2 | 2×37 | 380/660, 660/1140 | 67.9/39.2, 39.2/22.63 | 750–400 | 900–4600 | ≥65 | ≤25 | Φ750 |
| YBF2-225M-2 | 2×45 | 380/660, 660/1140 | 82.3/47.5, 47.5/27.4 | 900–450 | 900–6800 |
Rated voltage and rated current apply to all rows (380/660 V and 660/1140 V dual voltage). Air volume ranges are quoted as printed on the manufacturer’s data sheet (from the volume at maximum static pressure to the volume at free delivery). Please confirm the exact duty point with our engineers before ordering.
Need a quotation for the FBCD series?
Tell us the roadway length, the required air volume and the gas or dust conditions at the working face, and our engineers will confirm the size number, motor configuration and voltage option (380/660 V or 660/1140 V) and prepare the quotation.
Technical data is reproduced from the manufacturer’s data sheet for the FBCD series. The sheet does not state the gas group or temperature class of the Ex marking; send us your mine’s explosion-protection requirements and our engineers will confirm the certification and suitability before you order.
