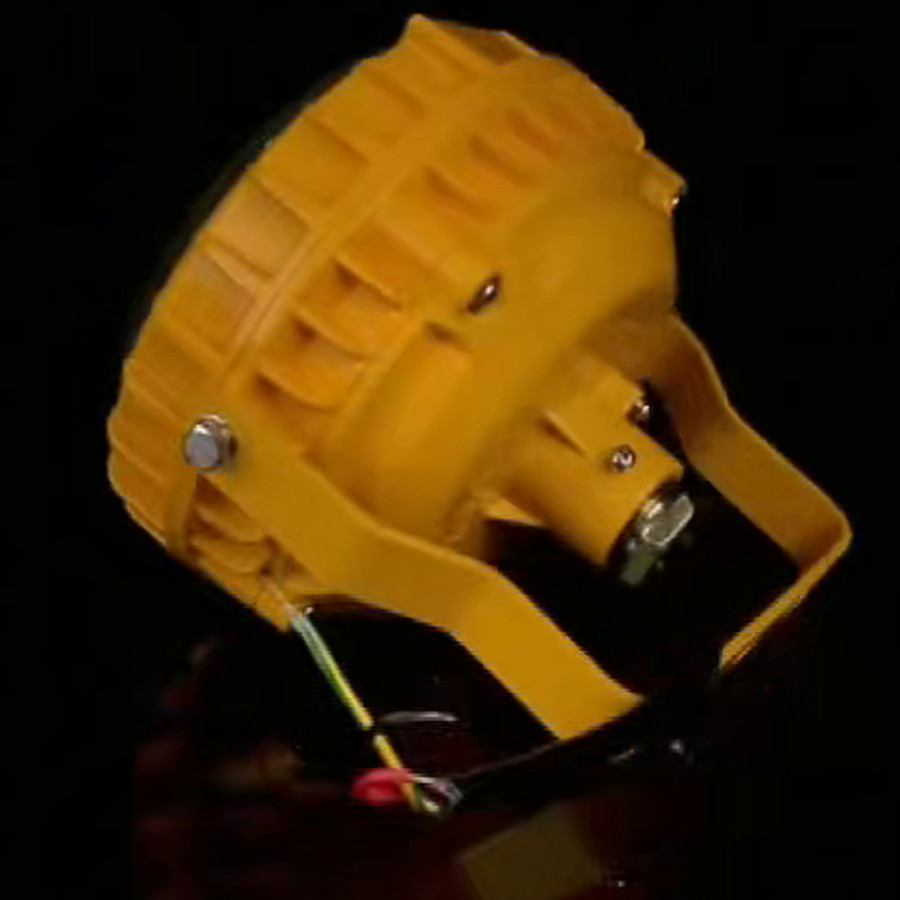

Rotation view
Drag to rotate

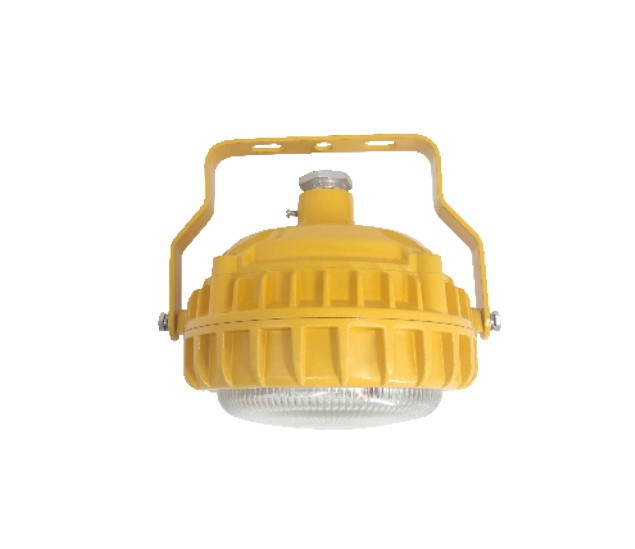

ZBD129 Explosion-Proof Maintenance-Free LED Light
A round maintenance-free explosion-proof LED light for Zone 1 / Zone 2 gas atmospheres and Zone 21 / Zone 22 combustible dust areas. The round ribbed body carries the LED array behind a clear dome, and a U-bracket with slotted holes lets the light be aimed after installation. Rated 20 W to 40 W on an AC 220 V / 50 Hz supply.
- Ex db IIC T6 Gb
- Ex tb IIIC T80°C Db
- 20–40 W
- AC 220 V / 50 Hz
- G3/4" cable inlet
- 1.924 kg / 2.32 kg
- Ex marking — Ex db IIC T6 Gb; Ex tb IIIC T80°C Db
- Rated power — 20 W – 40 W
- Rated voltage — AC 220 V / 50 Hz
- Cable inlet thread — G3/4"
- Body types — two body types drawn — 168 mm and 242 mm overall height
- Net weight — 1.924 kg / 2.32 kg
Technical data
| Parameter | Value |
|---|---|
| Model | ZBD129 |
| Rated voltage | AC 220 V / 50 Hz |
| Rated power | 20 W – 40 W |
| Ex marking | Ex db IIC T6 Gb; Ex tb IIIC T80°C Db |
| Cable inlet thread | G3/4" |
| Type of protection | Flameproof (Ex db); dust ignition protection (Ex tb) |
| Gas group / temperature class | IIC / T6 — dust: 80°C maximum surface temperature |
| Net weight | 1.924 kg / 2.32 kg |
| Mounting | U-bracket with slotted mounting holes |
| Body type | two body types are drawn on the sheet — see dimensions below |

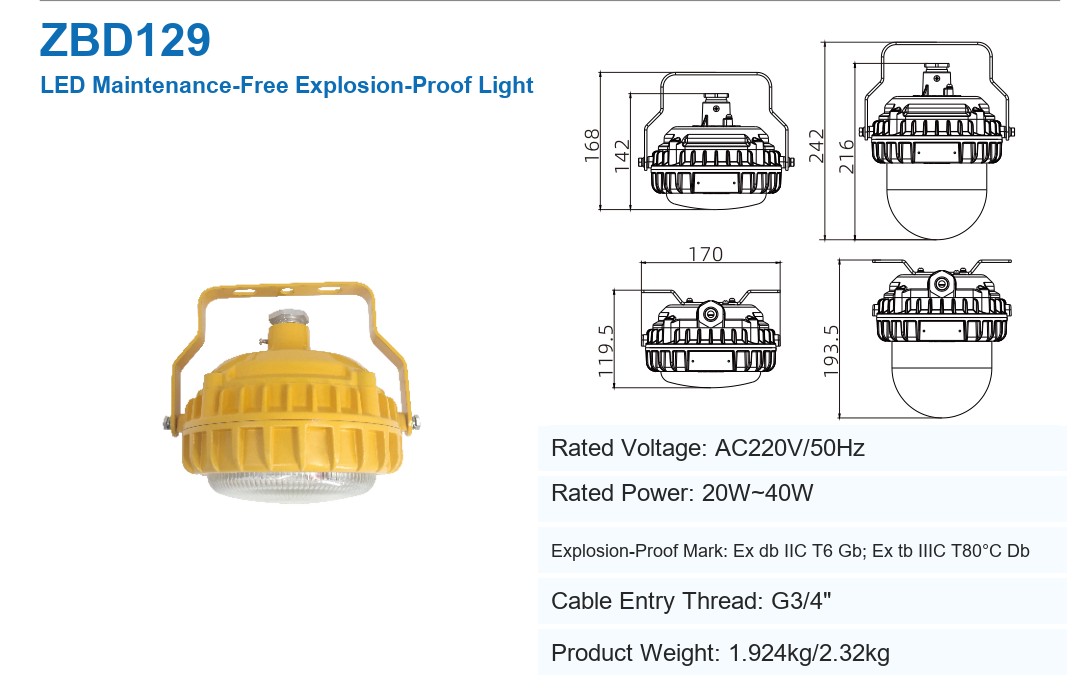

Body types and dimensions
Dimensions in millimetres. The sheet draws two body types. The 170 mm width is dimensioned on the first body only, and the two published weights (1.924 kg and 2.32 kg) are not assigned to a body type on the sheet — please confirm both points, and we will update this table.
| Reference (as drawn) | Body type 1 | Body type 2 |
|---|---|---|
| Body height | 119.5 mm | 193.5 mm |
| Height to top of cable entry | 142 mm | 216 mm |
| Overall height incl. bracket | 168 mm | 242 mm |
| Body width | 170 mm | not dimensioned on the sheet |
Features
- Ex db IIC T6 Gb — flameproof enclosure for Zone 1 and Zone 2 gas atmospheres, group IIC at temperature class T6 (85°C maximum surface temperature), the lowest and safest class.
- Ex tb IIIC T80°C Db — dust ignition protection by enclosure for Zone 21 and Zone 22, including conductive dust, with an 80°C maximum surface temperature.
- Maintenance-free LED light — the LED array is sealed inside the body, so there is no routine relamping.
- Round ribbed body with a clear dome below the fixture, for even downward light under platforms and walkways.
- U-bracket with slotted holes — the light can be aimed after installation.
- 20 W to 40 W in one body type, on an AC 220 V / 50 Hz single-phase supply.
- G3/4" cable inlet, matching the glands used on the rest of the range.
- Two body types drawn on the sheet — 168 mm and 242 mm overall height including the bracket.
Applications
Because the ZBD129 carries both gas (Ex db IIC T6 Gb) and dust (Ex tb IIIC T80°C Db) protection, it is used in hazardous areas such as:
- Walkways, platforms and catwalks in refineries and chemical plants
- Pump, compressor and metering skids
- Workshops, maintenance bays and stores inside classified zones
- Loading bays, tank farms and utility areas
- Dust-handling plants such as grain, wood, coal and metal powder processing
- Positions that are difficult to reach for relamping — a maintenance-free body reduces access requirements
Need a quotation for the ZBD129?
Tell us your area classification, the wattage you need and how the light will be mounted, and our engineers will confirm the right body type and prepare the quotation for you.
Other luminaires in the range
Depending on the area classification and the light level you need, the ZBD124 maintenance-free light or the ZBD119 platform light may suit better. Send us the area classification drawing and we will confirm which luminaire fits.
Technical data is reproduced from the manufacturer’s product sheet for model ZBD129. Dimensions are given in millimetres. Two body types are drawn on the sheet; please confirm the final configuration with our engineers before ordering.
