ZFW6123 LED Mobile Work Light
The larger of the two ZFW612x mobile work lights: a 60 W LED head on a tripod mast reaching 2.6 m. DC 14.8 V, 15 Ah, IP66 — 4 h or more at full brightness, 6 h or less to recharge, 5 kg or less.
- 60 W LED
- DC 14.8 V
- 15 Ah
- IP66
- max height 2.6 m
- ≤5 kg
- Rated voltage — DC14.8V
- Rated capacity — 15Ah
- Light source — 60W LED
- Charging time — ≤6h
- Protection grade — IP66
- Dimensions — 98×135×1345mm (Folded)
Technical data
| Parameter | Value |
|---|---|
| Light source | 60W LED |
| Rated voltage | DC14.8V |
| Rated capacity | 15Ah |
| Continuous working time (full brightness) | ≥4h |
| Spot strong light | ≥8h |
| Spot working light | ≥16h |
| Flood strong light | ≥6h |
| Flood working light | ≥12h |
| Charging time | ≤6h |
| Protection grade | IP66 |
| Max height | 2.6m |
| Dimensions | 98×135×1345mm (Folded) |
| Product weight | ≤5Kg |
Features
- Light source: 60W LED.
- Rechargeable: 15Ah battery on a DC14.8V supply — ≤6h to recharge.
- Ingress protection IP66.
- Dimensions 98×135×1345mm (Folded).
- Tripod mast with a maximum height of 2.6 m; folds to 1 345 mm.
Where it is used
Temporary and portable lighting tasks in industrial plants: inspection rounds, shutdown and turnaround work, tank and vessel cleaning, cable and pipe routing, spill response, and any position where a fixed luminaire is not practical.
Need a quotation for the ZFW6123?
Tell us the area classification, how long the light has to run on one charge and how it will be mounted, and our engineers will confirm the configuration and prepare the quotation for you.
More in this series
Other models in the same range, so you can compare running times, mounting and protection grades side by side.

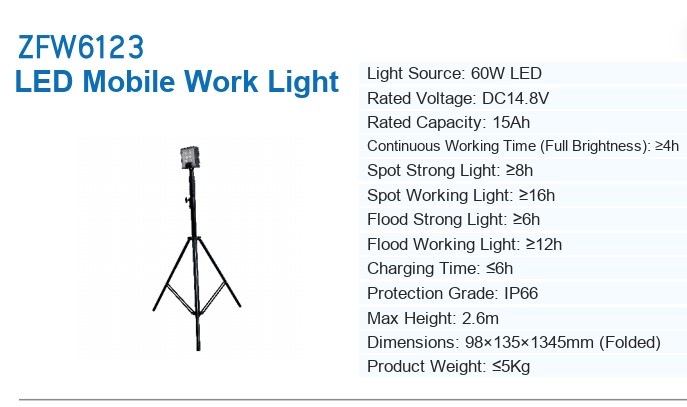

The manufacturer’s sheet for this model does not state an Ex marking. Portable work lights for hazardous areas are specified against the area classification on site — send us the zone, the gas or dust group and the temperature class you need, and our engineers will confirm the marking and the correct model before you order. Technical data is reproduced from the manufacturer’s sheet for model ZFW6123. Dimensions are given in millimetres unless stated otherwise.
