ZFW6105B Lightweight Portable Work Light
The 27 W strong / 9 W working work light on a folding mast: 300 × 238 × 1150 mm folded and 300 × 238 × 1750 mm extended. DC 14.8 V, 10 Ah, 8 h / 16 h — 8.5 kg.
- 27/9 W
- DC 14.8 V
- 10 Ah
- 8 h / 16 h
- folds to 1.15 m
- 8.5±0.1 kg
- Rated voltage — DC14.8V
- Rated power — 27/9W
- Rated capacity — 10Ah
- Discharge time — 8h (Strong) / 16h (Working)
- Charging time — ≤12h
- Dimensions — 300×238×1150mm (Folded)

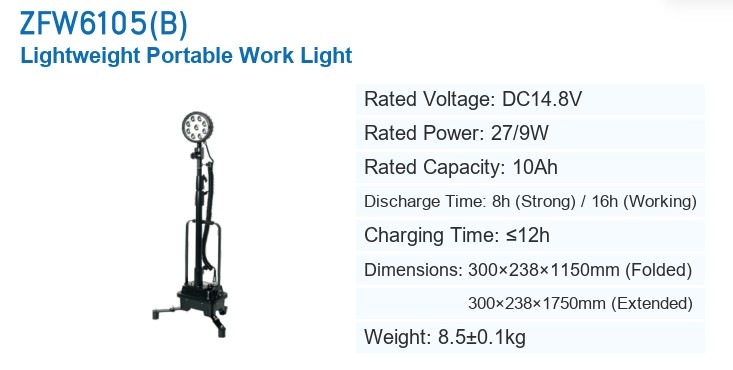

Technical data
| Parameter | Value |
|---|---|
| Rated voltage | DC14.8V |
| Rated power | 27/9W |
| Rated capacity | 10Ah |
| Discharge time | 8h (Strong) / 16h (Working) |
| Charging time | ≤12h |
| Dimensions | 300×238×1150mm (Folded) |
| 300×238×1750mm (Extended) | |
| Weight | 8.5±0.1kg |
Features
- Rated power 27/9W.
- Rechargeable: 10Ah battery on a DC14.8V supply — 8h (Strong) / 16h (Working) per charge, ≤12h to recharge.
- Dimensions 300×238×1150mm (Folded), 8.5±0.1kg.
- Folding mast: 1 150 mm folded, 1 750 mm extended, on a folding tripod foot.
Where it is used
Temporary and portable lighting tasks in industrial plants: inspection rounds, shutdown and turnaround work, tank and vessel cleaning, cable and pipe routing, spill response, and any position where a fixed luminaire is not practical.
Need a quotation for the ZFW6105B?
Tell us the area classification, how long the light has to run on one charge and how it will be mounted, and our engineers will confirm the configuration and prepare the quotation for you.
More in this series
Other models in the same range, so you can compare running times, mounting and protection grades side by side.
The manufacturer’s sheet for this model does not state an Ex marking. Portable work lights for hazardous areas are specified against the area classification on site — send us the zone, the gas or dust group and the temperature class you need, and our engineers will confirm the marking and the correct model before you order. The sheet for this model does not state a protection (IP) grade — please confirm the IP rating you need with our engineers. Technical data is reproduced from the manufacturer’s sheet for model ZFW6105B. Dimensions are given in millimetres unless stated otherwise.
