ZJW7400A Multifunctional Magnetic High-Intensity Work Light
A hand-held work light with a magnetic base, switchable between a single 3 W source and a dual 2 × 3 W source. DC 3.7 V, 4 400 mAh, IP66: 8 h on strong and 16 h on working light, recharged in 8 h or less — 409 ± 5 g.
- 3 W / 2×3 W
- DC 3.7 V
- 4 400 mAh
- 8 h / 16 h
- IP66
- 409 ± 5 g
- Rated voltage — DC3.7V
- Rated power — 3W (Single Source) / 2×3W (Dual Source)
- Rated capacity — 4400mAh
- Discharge time — 8h (Strong) / 16h (Working)
- Charging time — ≤8h
- Protection grade — IP66
Technical data
| Parameter | Value |
|---|---|
| Rated voltage | DC3.7V |
| Rated power | 3W (Single Source) / 2×3W (Dual Source) |
| Rated capacity | 4400mAh |
| Discharge time | 8h (Strong) / 16h (Working) |
| Charging time | ≤8h |
| Protection grade | IP66 |
| Dimensions | 237×93×76mm |
| Weight | 409±5g |
Features
- Rated power 3W (Single Source) / 2×3W (Dual Source).
- Rechargeable: 4400mAh battery on a DC3.7V supply — 8h (Strong) / 16h (Working) per charge, ≤8h to recharge.
- Ingress protection IP66.
- Dimensions 237×93×76mm, 409±5g.
- Hand-held body with a magnetic base for hands-free positioning.
- Switchable single or dual light source.
Where it is used
Temporary and portable lighting tasks in industrial plants: inspection rounds, shutdown and turnaround work, tank and vessel cleaning, cable and pipe routing, spill response, and any position where a fixed luminaire is not practical.
Need a quotation for the ZJW7400A?
Tell us the area classification, how long the light has to run on one charge and how it will be mounted, and our engineers will confirm the configuration and prepare the quotation for you.
More in this series
Other models in the same range, so you can compare running times, mounting and protection grades side by side.

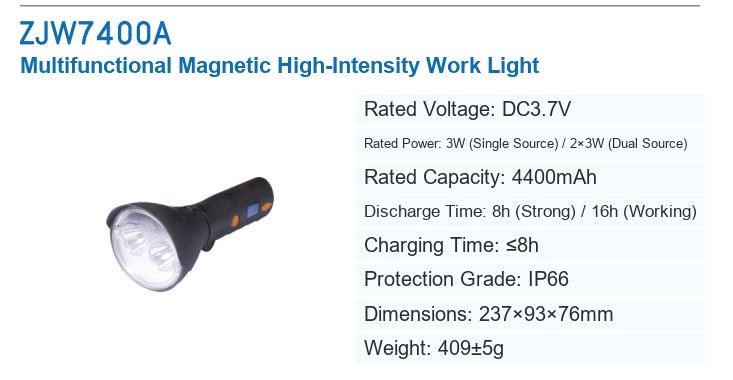

The manufacturer’s sheet for this model does not state an Ex marking. Portable work lights for hazardous areas are specified against the area classification on site — send us the zone, the gas or dust group and the temperature class you need, and our engineers will confirm the marking and the correct model before you order. Technical data is reproduced from the manufacturer’s sheet for model ZJW7400A. Dimensions are given in millimetres unless stated otherwise.
