Model ZBD154
ZBD154 Explosion-proof LED Floodlight
A 70–150 W LED floodlight with a hinged mounting bracket, for area lighting of plants and structures inside a classified area. Two sizes are built in the same series: 70 W in a 160.5 mm body and 150 W in a 278 mm body, both carrying the gas and the dust marking.
- 70 W / 150 W
- Ex db IIC T6 Gb
- Ex tb IIIC T80°C Db
- AC 220 V / 50 Hz
- G3/4" cable entry
- 4.3 kg / 6.5 kg

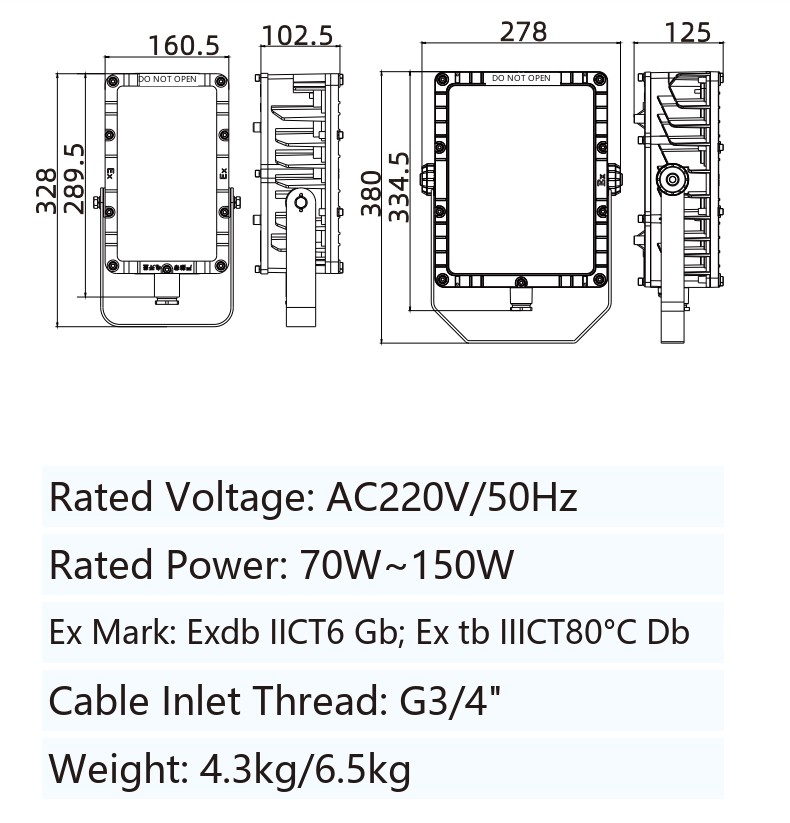

Technical data
| Parameter | Value |
|---|---|
| Model | ZBD154 |
| Rated voltage | AC 220 V / 50 Hz |
| Rated power | 70 W / 150 W |
| Ex marking | Ex db IIC T6 Gb; Ex tb IIIC T80°C Db |
| Cable inlet thread | G3/4" |
| Dimensions (70 W) | 160.5 × 102.5 × 328 (289.5) mm |
| Dimensions (150 W) | 278 × 125 × 380 (334.5) mm |
| Weight | 4.3 kg (70 W) / 6.5 kg (150 W) |
Features
- Two sizes in one series — a 70 W unit for local and perimeter lighting and a 150 W unit for larger areas, sharing the same marking and the same entry thread.
- Hinged mounting bracket — the bracket shown in the product photographs allows the floodlight to be aimed after it is fixed to the structure.
- Finned die-cast body — the fins give the LED module a larger surface for heat dissipation, which matters most on the higher power size.
- LED matrix behind a glass cover — the light engine is a matrix of individual emitters behind a framed glass cover, as shown in the drawing.
- Gas and dust marking — Ex db IIC T6 Gb and Ex tb IIIC T80°C Db on the same luminaire.
- G3/4" cable entry — a single entry, closed with the matching certified gland.
- AC 220 V / 50 Hz — standard single-phase supply.
Where the ZBD154 is used
- Area and perimeter lighting of process units, tank farms and loading areas
- Pipe racks, structures and skids where the luminaire has to be aimed after installation, using the hinged bracket
- Local lighting positions that need a focused beam rather than the spread of a dome luminaire
- Positions where the same luminaire family is wanted for both a low-power and a high-power duty
- Dust-rated areas, using the Ex tb IIIC T80°C Db marking
Not sure whether the 70 W or the 150 W fits?Tell us the mounting height, the area to be lit and the required light level, plus the zone and gas or dust group. We will confirm the size and the exact marking, together with the bracket and gland that complete the installation.
Part of the explosion-proof lighting range, alongside the ZBD113 square floodlight and the ZBD124 maintenance-free light.
