ZFW6128 Multifunctional Mobile Lighting System
A wheeled lighting system with two 30 W lamp heads, an 8 MP camera with 32 GB of storage on the same mast and a red/yellow warning light. DC 25.2 V, 22 Ah, IP65 lamp head and IP54 housing — 16.6 ± 0.1 kg.
- 2×30 W
- DC 25.2 V
- 22 Ah
- IP65 / IP54
- 8 MP camera
- 16.6±0.1 kg
- Rated voltage — DC25.2V
- Rated power — 2×30W
- Rated capacity — 22Ah
- Protection grade — IP65 (Lamp Head)
- Dimensions — 356×330×620mm
- Weight — 16.6±0.1kg
Technical data
| Parameter | Value |
|---|---|
| Rated voltage | DC25.2V |
| Rated capacity | 22Ah |
| Rated power | 2×30W |
| Camera pixel | 8MP |
| Memory | 32GB |
| Warning colour | Red/Yellow |
| Protection grade | IP65 (Lamp Head) |
| IP54 (Lamp Housing) | |
| Dimensions | 356×330×620mm |
| 356×330×1800mm | |
| Weight | 16.6±0.1kg |
Features
- Rated power 2×30W.
- Rechargeable: a 22Ah battery, a DC25.2V supply.
- Ingress protection IP65 (Lamp Head).
- Dimensions 356×330×620mm, 16.6±0.1kg.
- Mast-mounted 8 MP camera with 32 GB of storage, so the unit can record while it lights.
- Red/yellow warning light on the same mast.
Where it is used
Temporary and portable lighting tasks in industrial plants: inspection rounds, shutdown and turnaround work, tank and vessel cleaning, cable and pipe routing, spill response, and any position where a fixed luminaire is not practical.
Need a quotation for the ZFW6128?
Tell us the area classification, how long the light has to run on one charge and how it will be mounted, and our engineers will confirm the configuration and prepare the quotation for you.

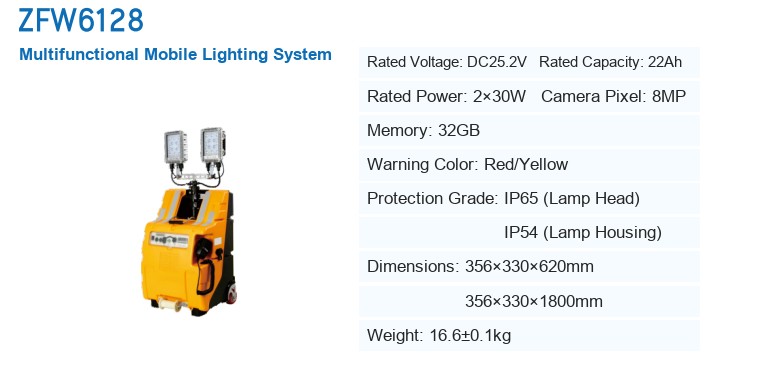

The manufacturer’s sheet for this model does not state an Ex marking. Portable work lights for hazardous areas are specified against the area classification on site — send us the zone, the gas or dust group and the temperature class you need, and our engineers will confirm the marking and the correct model before you order. The lamp head is IP65 and the lamp housing IP54, as stated on the sheet. Technical data is reproduced from the manufacturer’s sheet for model ZFW6128. Dimensions are given in millimetres unless stated otherwise.
