ZJW7102 Portable Explosion-Proof Searchlight
A hand-held searchlight with a carrying handle, published in two body lengths: ZJW7102A at φ69 × 150 mm (869 ± 5 g) and ZJW7102B at φ69 × 194 mm (994 ± 5 g). 3 × 3 W at DC 3.7 V, 4 400 mAh, eight hours strong and sixteen on working light, IP66.
- 3×3 W
- DC 3.7 V
- 4 400 mAh
- 8 h / 16 h
- IP66
- 869 / 994 g
- Rated voltage — DC3.7V
- Rated power — 3×3W
- Rated capacity — 4400mAh
- Discharge time — 8h (Strong Light) / 16h (Working Light)
- Charging time — ≤8h
- Protection grade — IP66
Technical data
| Parameter | Value |
|---|---|
| Rated voltage | DC3.7V |
| Rated power | 3×3W |
| Rated capacity | 4400mAh |
| Discharge time | 8h (Strong Light) / 16h (Working Light) |
| Charging time | ≤8h |
| Protection grade | IP66 |
| Dimensions | φ69×150mm / φ69×194mm |
| Weight | 869±5g / 994±5g |
Features
- Rated power 3×3W.
- Rechargeable: a 4400mAh battery, a DC3.7V supply, 8h (Strong Light) / 16h (Working Light) per charge and a recharge time of ≤8h.
- Ingress protection IP66.
- Dimensions φ69×150mm / φ69×194mm, 869±5g / 994±5g.
- Two body lengths are published on the same sheet: ZJW7102A (φ69 × 150 mm) and ZJW7102B (φ69 × 194 mm).
Where it is used
Temporary and portable lighting tasks in industrial plants: inspection rounds, shutdown and turnaround work, tank and vessel cleaning, cable and pipe routing, spill response, and any position where a fixed luminaire is not practical.
Need a quotation for the ZJW7102?
Tell us the area classification, how long the light has to run on one charge and how it will be mounted, and our engineers will confirm the configuration and prepare the quotation for you.

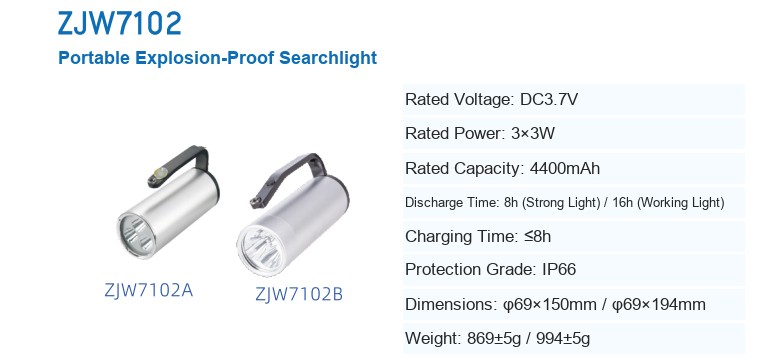

The manufacturer’s sheet for this model does not state an Ex marking. Portable work lights for hazardous areas are specified against the area classification on site — send us the zone, the gas or dust group and the temperature class you need, and our engineers will confirm the marking and the correct model before you order. Both sizes are drawn on one sheet; please confirm which length you need. Technical data is reproduced from the manufacturer’s sheet for model ZJW7102. Dimensions are given in millimetres unless stated otherwise.
