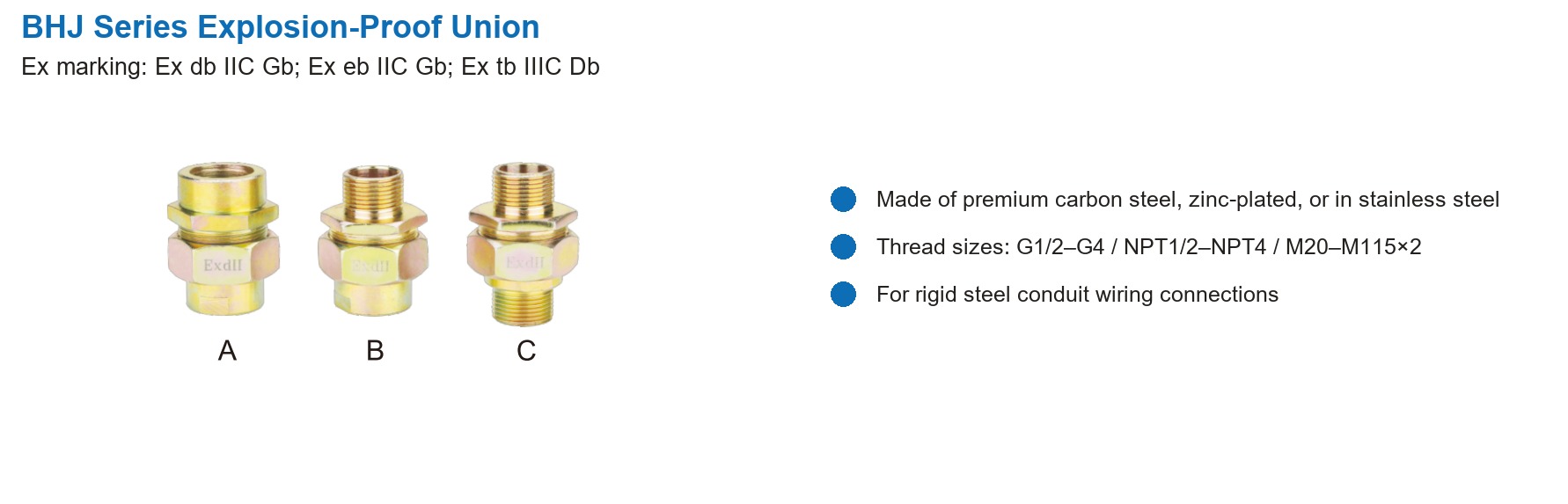

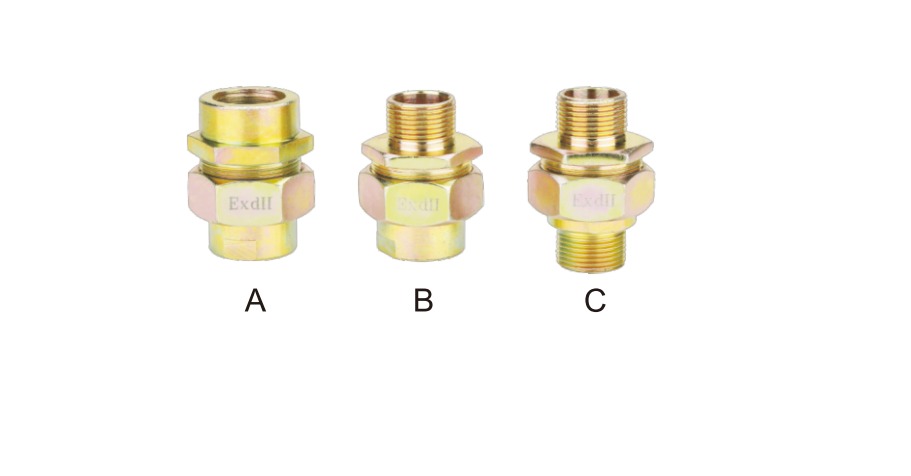

BHJ Series Explosion-Proof Union
The BHJ series explosion-proof union provides a demountable joint in rigid conduit runs, allowing enclosure connection and disassembly without rotating the conduit.
- Ex db IIC Gb
- Ex eb IIC Gb
- Ex tb IIIC Db
- Ex markingEx db IIC Gb; Ex eb IIC Gb; Ex tb IIIC Db
- MaterialsPremium carbon steel, zinc-plated, or stainless steel
- Thread sizesG1/2–G4 / NPT1/2–NPT4 / M20–M115×2
- ApplicationDemountable rigid steel conduit joints
Overview
The BHJ series explosion-proof union provides a demountable joint in rigid conduit runs, allowing enclosure connection and disassembly without rotating the conduit. It is available in zinc-plated premium carbon steel or stainless steel, with thread sizes from G1/2 to G4, NPT 1/2 to NPT 4 and M20 to M115×2.
Key features
- Made of premium carbon steel, zinc-plated, or in stainless steel
- Thread sizes: G1/2–G4 / NPT1/2–NPT4 / M20–M115×2
- For rigid steel conduit wiring connections
Indicative specification
| Ex marking | Ex db IIC Gb; Ex eb IIC Gb; Ex tb IIIC Db |
|---|---|
| Materials | Premium carbon steel, zinc-plated, or stainless steel |
| Thread sizes | G1/2–G4 / NPT1/2–NPT4 / M20–M115×2 |
| Application | Demountable rigid steel conduit joints |
Typical applications
- Demountable conduit joints in hazardous areas
- Enclosure connections without conduit rotation
- Zinc-plated carbon steel or stainless versions
- Thread sizes G1/2–G4, NPT 1/2–NPT 4 and metric
Need a quotation for the BHJ series? Send us your specification — model, ratings, entry threads and area classification — and our engineers will confirm the configuration and prepare the quotation.
Technical data is reproduced from the manufacturer’s product sheet for the BHJ series. Please confirm the final configuration with our engineers before ordering.
