DQM Series · CABLE GLAND

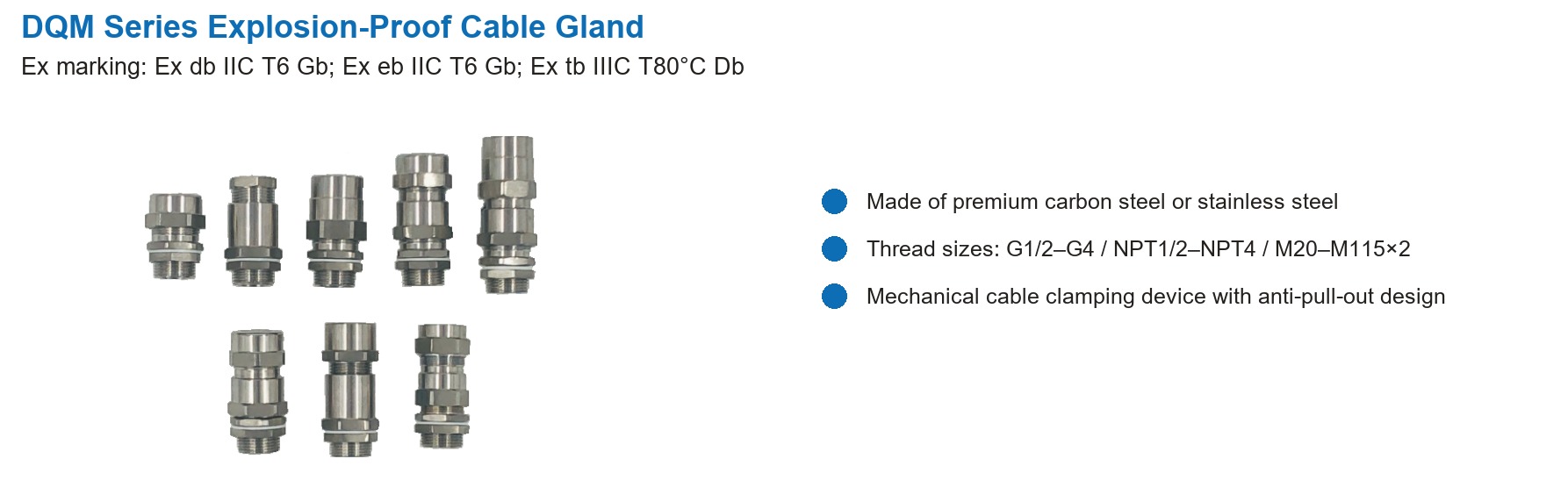

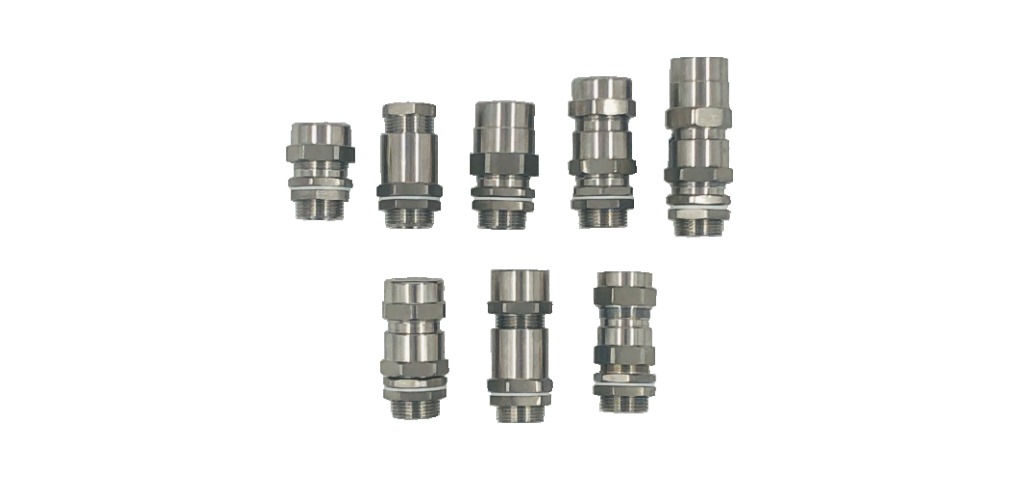

DQM Series Explosion-Proof Cable Gland
The DQM series explosion-proof cable gland secures and seals cable entries in hazardous-area equipment.
- Ex db IIC T6 Gb
- Ex eb IIC T6 Gb
- Ex tb IIIC T80°C Db
- Ex markingEx db IIC T6 Gb; Ex eb IIC T6 Gb; Ex tb IIIC T80°C Db
- MaterialsPremium carbon steel or stainless steel
- Thread sizesG1/2–G4 / NPT1/2–NPT4 / M20–M115×2
- ClampingMechanical cable clamping device
Overview
The DQM series explosion-proof cable gland secures and seals cable entries in hazardous-area equipment. Made from premium carbon steel or stainless steel, it combines a mechanical cable clamping device with an anti-pull-out design, with thread sizes from G1/2 to G4, NPT 1/2 to NPT 4 and M20 to M115×2.
Key features
- Made of premium carbon steel or stainless steel
- Thread sizes: G1/2–G4 / NPT1/2–NPT4 / M20–M115×2
- Mechanical cable clamping device with anti-pull-out design
Indicative specification
| Ex marking | Ex db IIC T6 Gb; Ex eb IIC T6 Gb; Ex tb IIIC T80°C Db |
|---|---|
| Materials | Premium carbon steel or stainless steel |
| Thread sizes | G1/2–G4 / NPT1/2–NPT4 / M20–M115×2 |
| Clamping | Mechanical cable clamping device |
| Retention | Anti-pull-out design |
Typical applications
- Cable entries for explosion-proof enclosures
- Zone 1 and Zone 2 gas and Zone 21/22 dust areas
- Carbon steel or stainless duty by environment
- Mechanical clamping with anti-pull-out retention
Need a quotation for the DQM series? Send us your specification — model, ratings, entry threads and area classification — and our engineers will confirm the configuration and prepare the quotation.
Technical data is reproduced from the manufacturer’s product sheet for the DQM series. Please confirm the final configuration with our engineers before ordering.
