AH Series Explosion-Proof Junction Box
The AH series explosion-proof junction box is die-cast from aluminium alloy with a high-pressure electrostatic powder-coated surface and stainless steel exposed fasteners for hazardous-area cable termination.
- Ex db IIC T6 Gb
- Ex tb IIIC T80°C Db
- Die-cast aluminium housing
- G1/2–G2 / M20–M63×1.5
- Ex markingEx db IIC T6 Gb; Ex tb IIIC T80°C Db
- HousingDie-cast aluminium alloy, high-pressure electrostatic powder coating
- FastenersStainless steel exposed fasteners
- Entry threadsG1/2–G2 / M20–M63×1.5
Overview

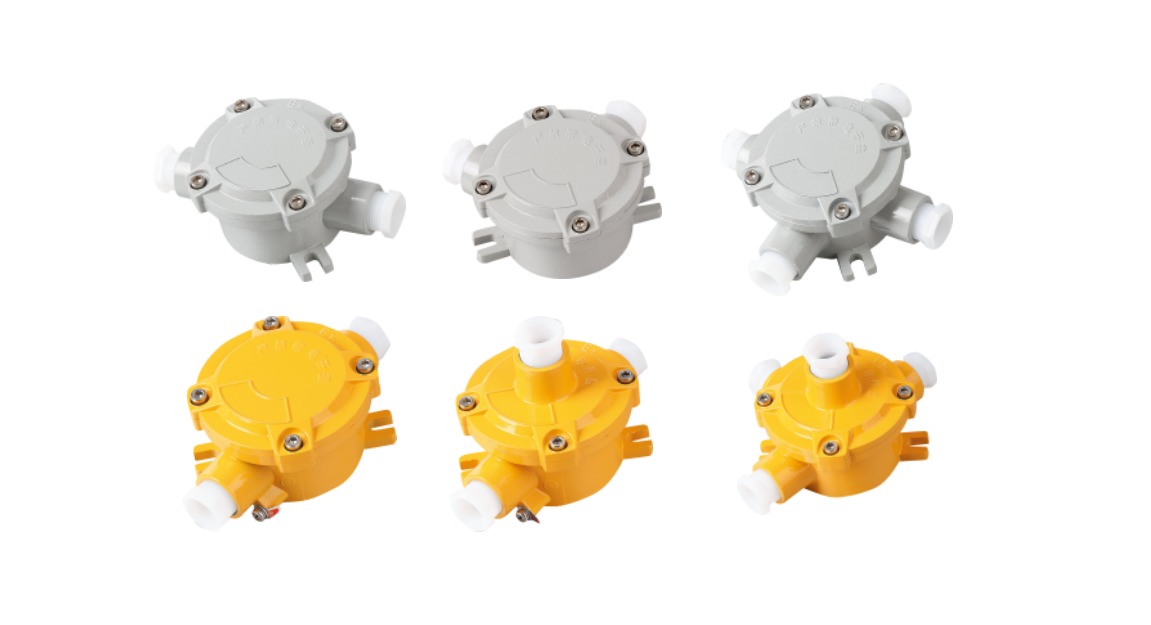

The AH series explosion-proof junction box is die-cast from aluminium alloy and finished with a high-pressure electrostatic powder coating, with stainless steel exposed fasteners throughout. Cable entries are G1/2–G2 or M20–M63×1.5, rated AC 220/380 V at 20 A. The range covers 1-way, 2-way, 3-way, 4-way, angle and pendant lamp box configurations, so lighting and power circuits in classified areas can be terminated and looped from a single enclosure family.
Key features
- Die-cast aluminium alloy housing with high-pressure electrostatic powder-coated surface
- Stainless steel exposed fasteners for corrosion resistance
- Entry threads: G1/2–G2 / M20–M63×1.5
- Rated voltage (V): AC 220/380; rated current (A): 20
- Configurations: 1-way, 2-way, 3-way, 4-way, angle and pendant lamp box

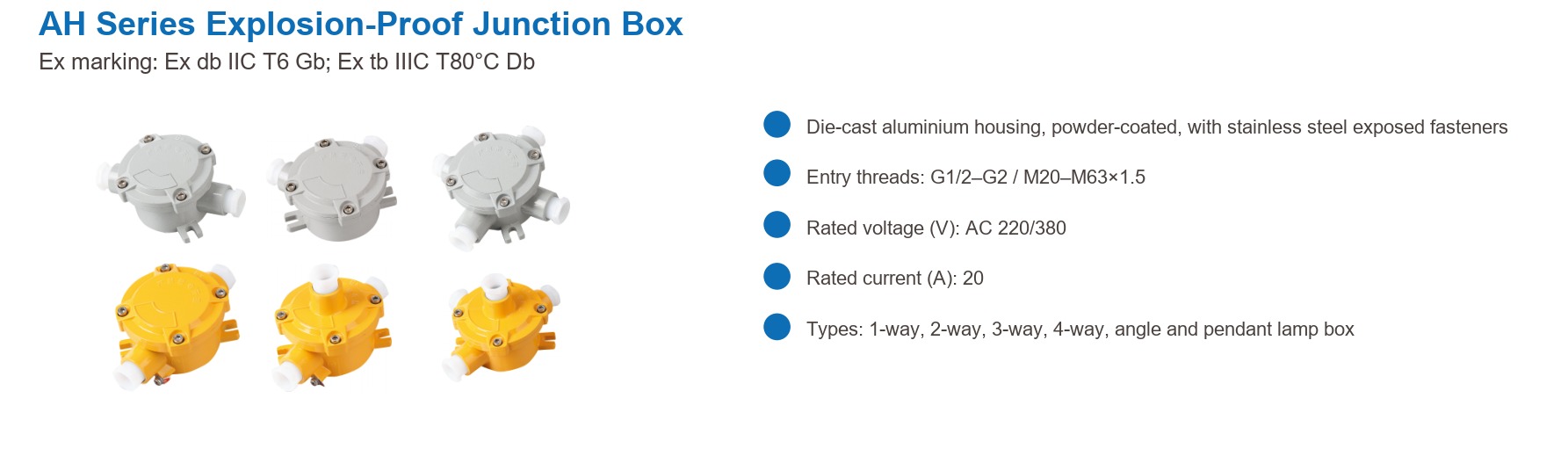

Indicative specification
| Ex marking | Ex db IIC T6 Gb; Ex tb IIIC T80°C Db |
|---|---|
| Housing | Die-cast aluminium alloy, high-pressure electrostatic powder coating |
| Fasteners | Stainless steel exposed fasteners |
| Entry threads | G1/2–G2 / M20–M63×1.5 |
| Rated voltage | AC 220/380 V |
| Rated current | 20 A |
| Configurations | 1-way, 2-way, 3-way, 4-way, angle, pendant lamp box |
Typical applications
- Cable termination and looping in Zone 1 and Zone 2
- Pendant lighting distribution in hazardous areas
- Indoor and outdoor installations with sealed enclosures
- Custom entry configurations to drawing
Technical data is reproduced from the manufacturer’s product sheet for the AH series. Please confirm the final configuration with our engineers before ordering.
