eJX Series · JUNCTION BOX

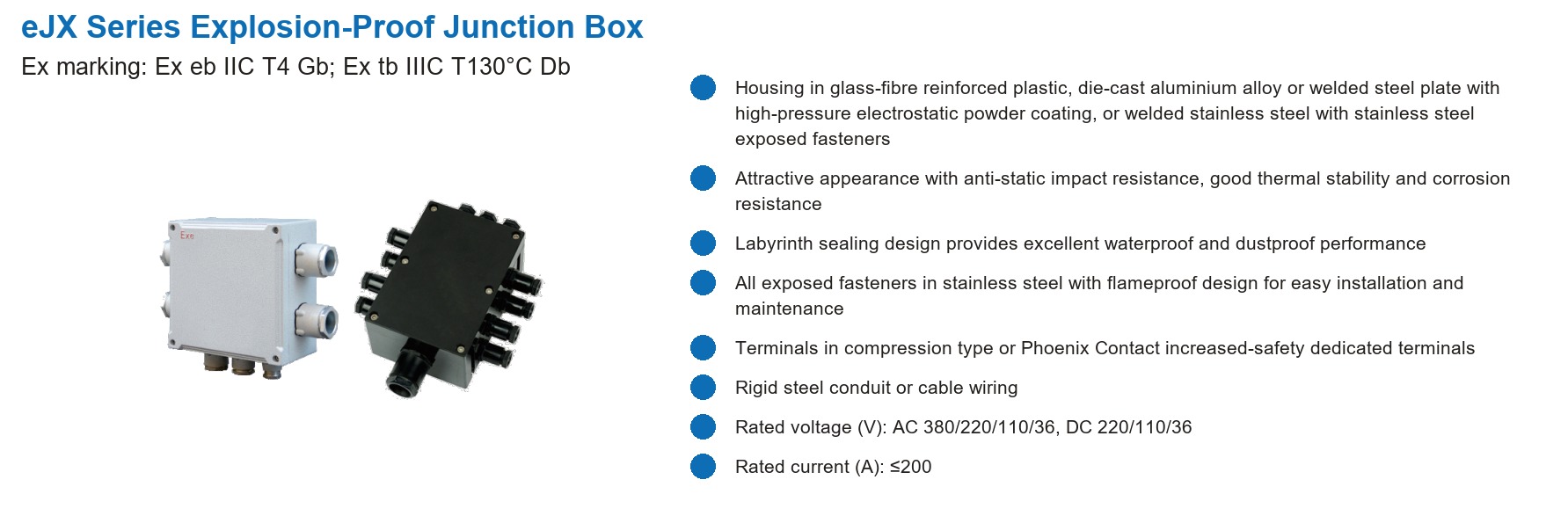

eJX Series Explosion-Proof Junction Box
The eJX series explosion-proof junction box is built for corrosive and outdoor service.
- Ex eb IIC T4 Gb
- Ex tb IIIC T130°C Db
- Ex markingEx eb IIC T4 Gb; Ex tb IIIC T130°C Db
- Housing materialsGRP, die-cast aluminium alloy, welded steel plate or stainless steel
- SealingLabyrinth design, waterproof and dustproof
- FastenersStainless steel, flameproof design
Overview

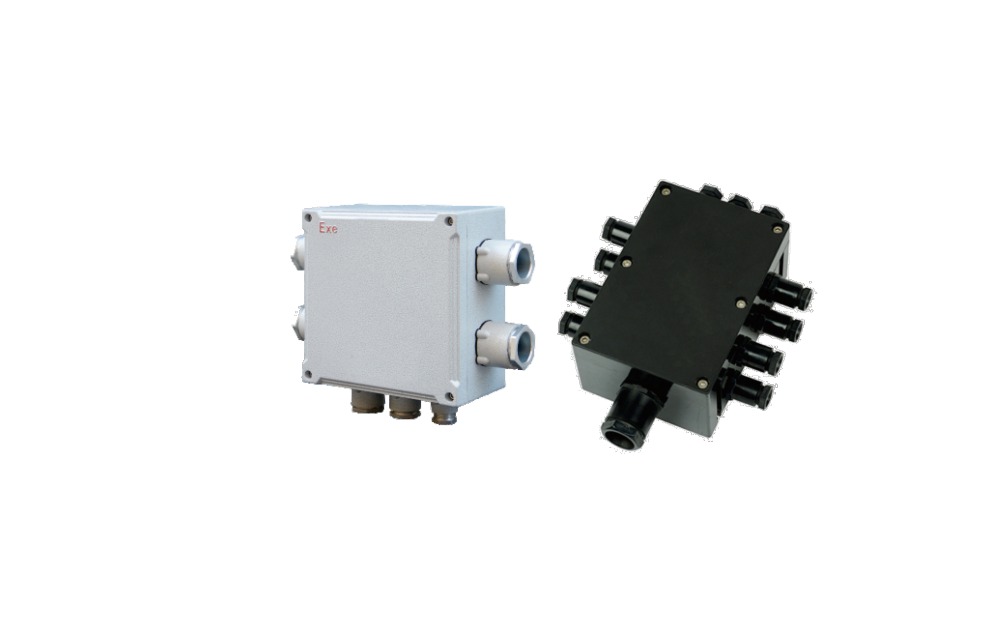

The eJX series explosion-proof junction box is built for corrosive and outdoor service. Housings come in glass-fibre reinforced plastic, die-cast aluminium alloy or welded steel plate with stainless steel exposed fasteners, a labyrinth sealing design provides excellent water and dust resistance, and the materials offer anti-static impact resistance, good thermal stability and corrosion resistance. Terminals are compression type or Phoenix Contact increased-safety dedicated terminals.
Key features
- Housing in glass-fibre reinforced plastic, die-cast aluminium alloy or welded steel plate with high-pressure electrostatic powder coating, or welded stainless steel with stainless steel exposed fasteners
- Attractive appearance with anti-static impact resistance, good thermal stability and corrosion resistance
- Labyrinth sealing design provides excellent waterproof and dustproof performance
- All exposed fasteners in stainless steel with flameproof design for easy installation and maintenance
- Terminals in compression type or Phoenix Contact increased-safety dedicated terminals
- Rigid steel conduit or cable wiring
- Rated voltage (V): AC 380/220/110/36, DC 220/110/36
- Rated current (A): ≤200
Indicative specification
| Ex marking | Ex eb IIC T4 Gb; Ex tb IIIC T130°C Db |
|---|---|
| Housing materials | GRP, die-cast aluminium alloy, welded steel plate or stainless steel |
| Sealing | Labyrinth design, waterproof and dustproof |
| Fasteners | Stainless steel, flameproof design |
| Terminals | Compression type or Phoenix Contact increased-safety terminals |
| Rated voltage | AC 380/220/110/36 V, DC 220/110/36 V |
| Rated current | ≤200 A |
Typical applications
- Junction and looping duties in corrosive atmospheres
- Outdoor installations requiring sealed enclosures
- Chemical, coastal and wastewater plants
- Zone 1 and Zone 2 gas atmospheres
Need a quotation for the eJX series? Send us your specification — model, ratings, entry threads and area classification — and our engineers will confirm the configuration and prepare the quotation.
Technical data is reproduced from the manufacturer’s product sheet for the eJX series. Please confirm the final configuration with our engineers before ordering.
