BZC Series Explosion-Proof (Anti-Corrosion) Control Station

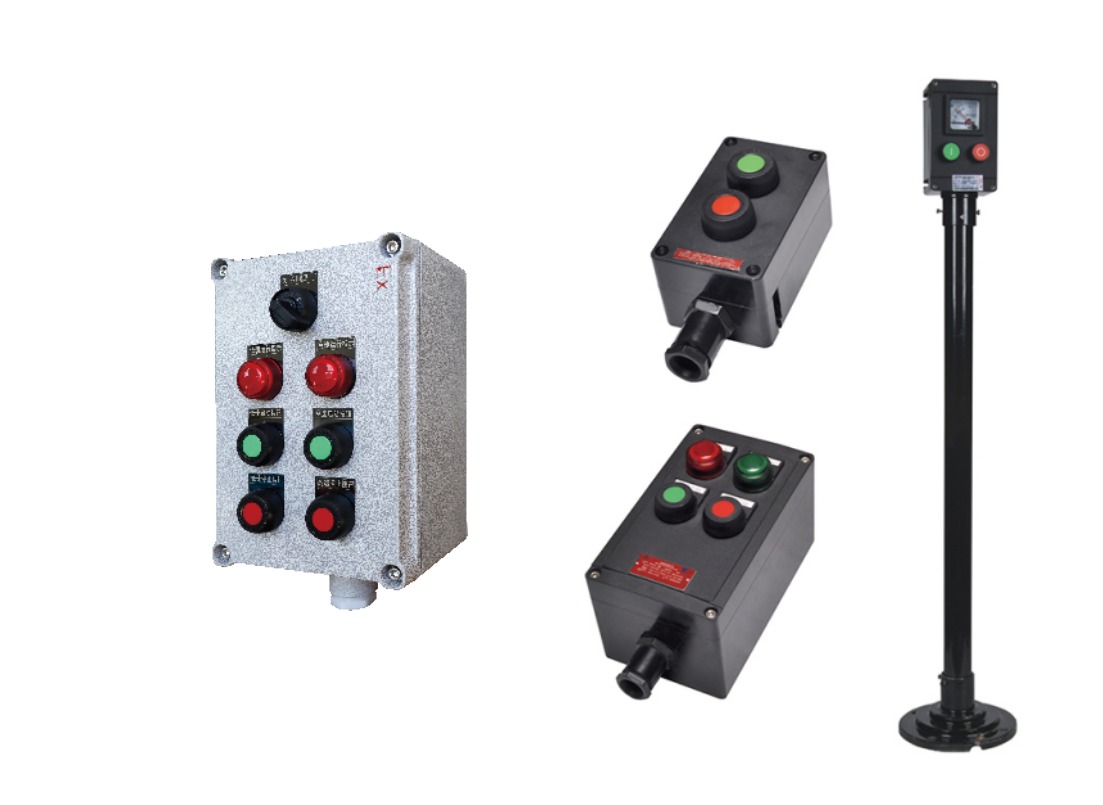

Explosion-proof and anti-corrosion control stations for hazardous industrial environments. Each station houses push buttons, pilot lights, ammeters, voltmeters and universal changeover switches behind an increased-safety or flameproof enclosure, and is supplied box-mounted, wall-mounted or pole-mounted to match the installation.
- Ex db eb IIC T6 Gb
- Ex tb IIIC T80°C Db
- Anti-corrosion design
- Ex markingEx db eb IIC T6 Gb; Ex tb IIIC T80°C Db
- Rated voltageAC 220 / 380 V
- Rated current5 A, 10 A
- Cable entriesG1/2–G2 · M16–M50×1.5
Overview
The BZC series control station is a local operator station for motors, valves, pumps and process equipment installed in hazardous gas and combustible dust atmospheres. Housings are formed from glass-fibre reinforced plastic, pressed die-cast aluminium alloy or welded steel plate, finished with a high-pressure electrostatic powder coating; a fully welded stainless steel version with stainless steel exposed fasteners is available for strongly corrosive plants such as coastal, offshore and chemical installations.
The enclosure concept follows the increased-safety or flameproof requirements of IEC 60079, and all switching and indicating components inside are explosion-proof types. Stations are built to order: the number of push buttons, pilot lights and instruments, the entry thread standard and the mounting arrangement are confirmed with our engineers before production. The series complements our wider explosion-proof push button switches range within the explosion-proof electrical apparatus line.
Key features
- Housing in fiberglass (GRP), die-cast aluminium alloy or welded steel plate, finished with high-pressure electrostatic powder coating, or welded stainless steel with stainless steel exposed fasteners
- Increased-safety or flameproof enclosure fitted with explosion-proof components
- Fitted with pilot lights, push buttons, universal changeover switches, ammeters and voltmeters; other instruments can be equipped to customer requirements
- Cable entry threads: G1/2–G2 or M16–M50×1.5
- Rated voltage AC 220/380 V; rated current 5 A or 10 A

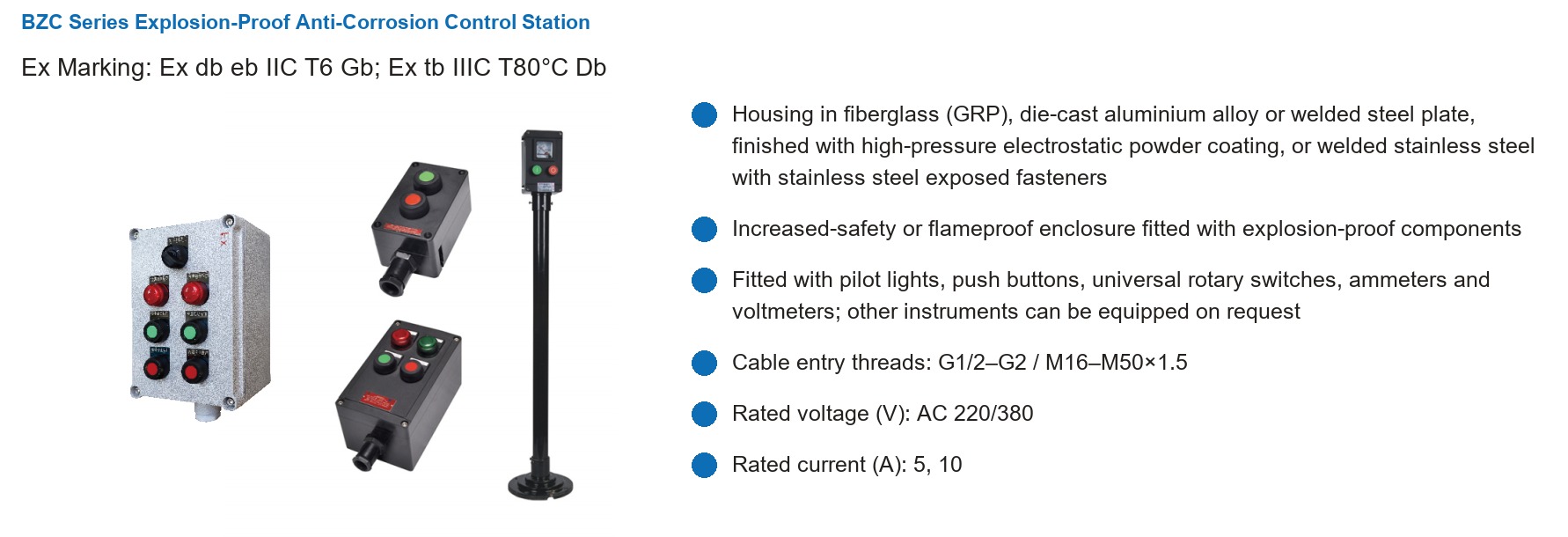

Indicative specification
| Ex marking | Ex db eb IIC T6 Gb; Ex tb IIIC T80°C Db |
|---|---|
| Protection concept | Increased safety (Ex e) or flameproof (Ex d) enclosure with explosion-proof internal components |
| Housing materials | Glass-fibre reinforced plastic, die-cast aluminium alloy, welded steel plate or welded stainless steel |
| Surface finish | High-pressure electrostatic powder coating |
| Internal instruments | Pilot lights, push buttons, universal changeover switches, ammeters, voltmeters; other instruments on request |
| Cable entry threads | G1/2–G2 / M16–M50×1.5 |
| Rated voltage | AC 220 / 380 V |
| Rated current | 5 A, 10 A |
| Mounting | Box-mounted, wall-mounted or pole-mounted station |
Typical applications
- Local control of motors, valves and pumps in Zone 1 and Zone 2 gas atmospheres
- Emergency stop and start/stop stations next to driven equipment
- Chemical, petrochemical and pharmaceutical plants where corrosive media are present
- Coastal, offshore and wastewater installations requiring stainless steel housings
- Outdoor process areas: tank farms, loading bays and utility blocks in classified zones
Technical data is reproduced from the manufacturer’s product sheet for the BZC series. Please confirm the final configuration with our engineers before ordering.
