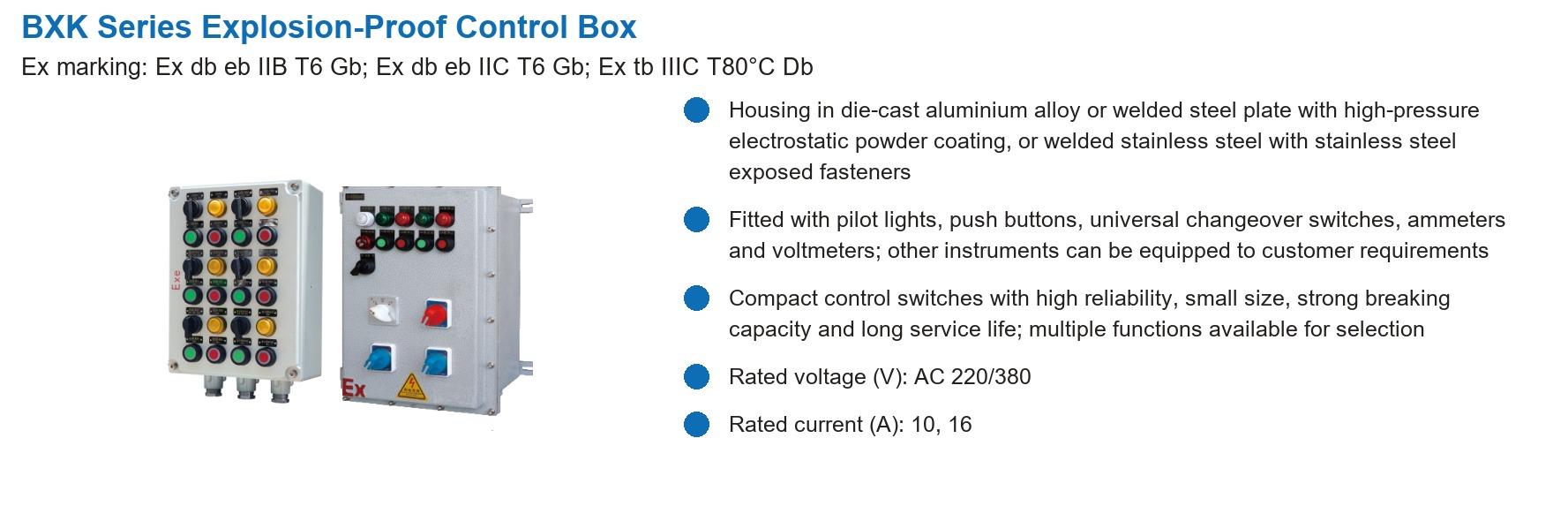

BXK Series Explosion-Proof Control Box

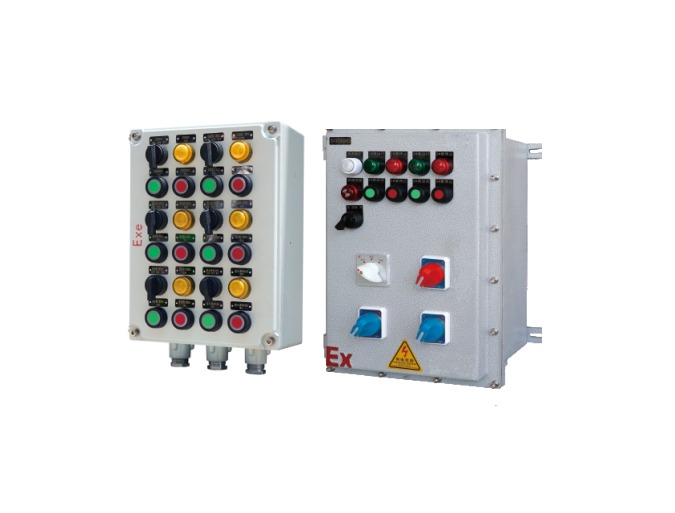

The BXK series explosion-proof control box concentrates push buttons, selector switches, pilot lights and measuring instruments in a single flameproof or increased-safety enclosure for local control of motors, valves and process equipment in hazardous areas.
- Ex db eb IIB T6 Gb
- Ex db eb IIC T6 Gb
- Ex tb IIIC T80°C Db
- Ex markingEx db eb IIB T6 Gb; Ex db eb IIC T6 Gb; Ex tb IIIC T80°C Db
- Housing materialsDie-cast aluminium alloy, welded steel plate or stainless steel
- Surface finishHigh-pressure electrostatic powder coating
- Internal instrumentsPilot lights, push buttons, universal changeover switches, ammeters, voltmeters
Overview
The BXK series explosion-proof control box concentrates push buttons, selector switches, pilot lights and measuring instruments in a single flameproof or increased-safety enclosure for local control of motors, valves and process equipment in hazardous areas. Housings are available in die-cast aluminium alloy, welded steel plate or welded stainless steel, finished with high-pressure electrostatic powder coating, with stainless steel exposed fasteners throughout.
Key features
- Housing in die-cast aluminium alloy or welded steel plate with high-pressure electrostatic powder coating, or welded stainless steel with stainless steel exposed fasteners
- Fitted with pilot lights, push buttons, universal changeover switches, ammeters and voltmeters; other instruments can be equipped to customer requirements
- Compact control switches with high reliability, small size, strong breaking capacity and long service life; multiple functions available for selection
- Rated voltage (V): AC 220/380
- Rated current (A): 10, 16
Indicative specification
| Ex marking | Ex db eb IIB T6 Gb; Ex db eb IIC T6 Gb; Ex tb IIIC T80°C Db |
|---|---|
| Housing materials | Die-cast aluminium alloy, welded steel plate or stainless steel |
| Surface finish | High-pressure electrostatic powder coating |
| Internal instruments | Pilot lights, push buttons, universal changeover switches, ammeters, voltmeters |
| Rated voltage | AC 220/380 V |
| Rated current | 10 A, 16 A |
Typical applications
- Local start/stop and indication for pumps, fans and mixers
- Process control stations in Zone 1 and Zone 2 areas
- Chemical, pharmaceutical and paint industry plants
- Indoor and outdoor installations in classified areas
Technical data is reproduced from the manufacturer’s product sheet for the BXK series. Please confirm the final configuration with our engineers before ordering.
