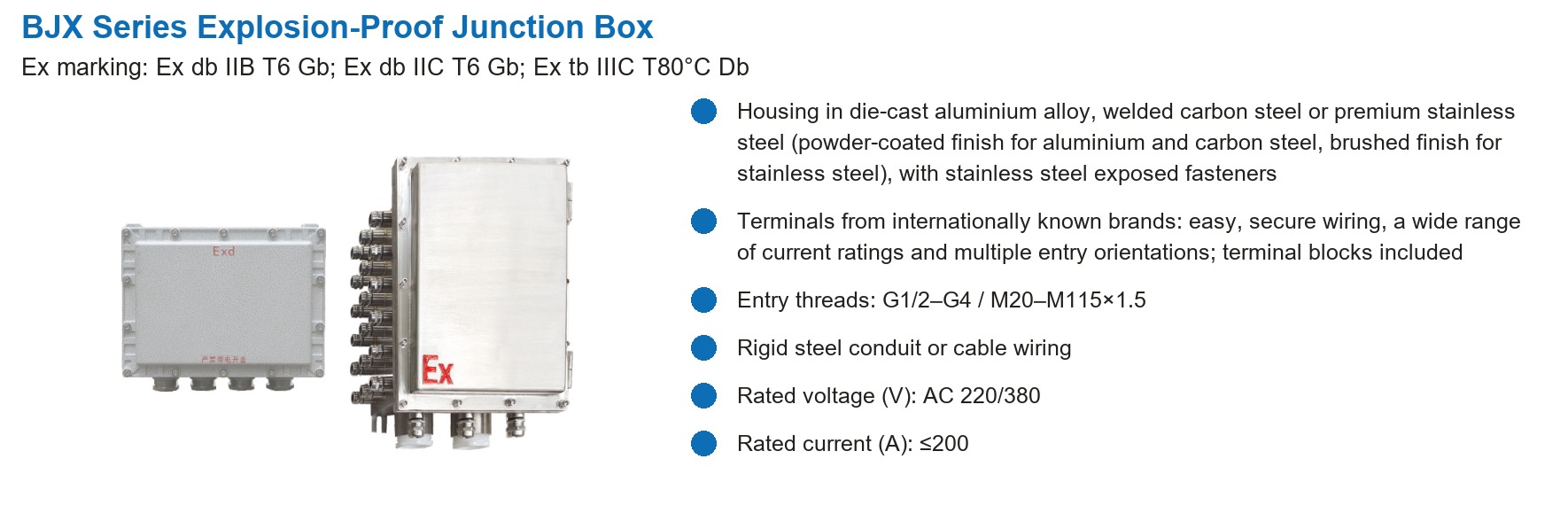

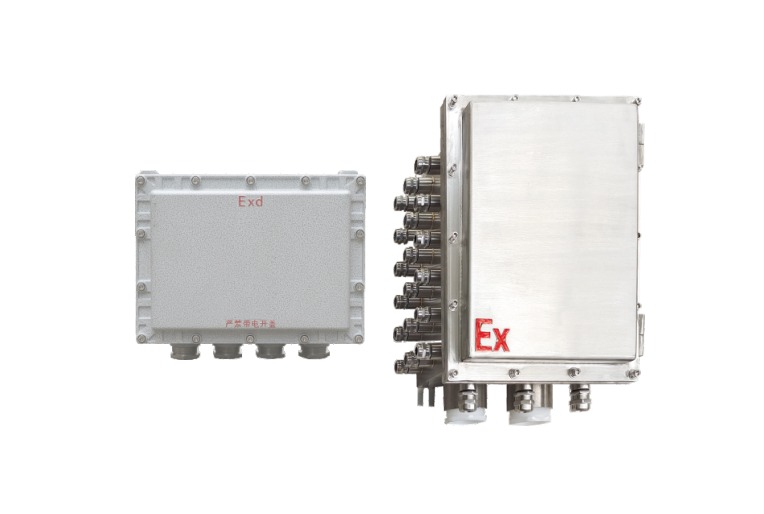

BJX Series Explosion-Proof Junction Box
The BJX series explosion-proof junction box terminates and distributes cable runs in hazardous areas.
- Ex db IIB T6 Gb
- Ex db IIC T6 Gb
- Ex tb IIIC T80°C Db
- Ex markingEx db IIB T6 Gb; Ex db IIC T6 Gb; Ex tb IIIC T80°C Db
- Housing materialsDie-cast aluminium alloy, welded carbon steel or stainless steel
- TerminalsInternationally known brands, multiple current ratings
- Entry threadsG1/2–G4 / M20–M115×1.5
Overview
The BJX series explosion-proof junction box terminates and distributes cable runs in hazardous areas. Housings are made from die-cast aluminium alloy, welded carbon steel or premium stainless steel — powder-coated for aluminium and carbon steel, brushed for stainless steel — with stainless steel exposed fasteners. Terminals from internationally known brands keep wiring easy and secure, with a wide choice of current ratings and multiple entry orientations.
Key features
- Housing in die-cast aluminium alloy, welded carbon steel or premium stainless steel (powder-coated finish for aluminium and carbon steel, brushed finish for stainless steel), with stainless steel exposed fasteners
- Terminals from internationally known brands: easy, secure wiring, a wide range of current ratings and multiple entry orientations; terminal blocks included
- Entry threads: G1/2–G4 / M20–M115×1.5
- Rigid steel conduit or cable wiring
- Rated voltage (V): AC 220/380
- Rated current (A): ≤200
Indicative specification
| Ex marking | Ex db IIB T6 Gb; Ex db IIC T6 Gb; Ex tb IIIC T80°C Db |
|---|---|
| Housing materials | Die-cast aluminium alloy, welded carbon steel or stainless steel |
| Terminals | Internationally known brands, multiple current ratings |
| Entry threads | G1/2–G4 / M20–M115×1.5 |
| Wiring method | Rigid steel conduit or cable |
| Rated voltage | AC 220/380 V |
| Rated current | ≤200 A |
Typical applications
- Cable termination and looping in Zone 1 and Zone 2
- Power distribution splices in process plants
- Indoor and outdoor installations with sealed enclosures
- Custom entry configurations to drawing
Need a quotation for the BJX series? Send us your specification — model, ratings, entry threads and area classification — and our engineers will confirm the configuration and prepare the quotation.
Technical data is reproduced from the manufacturer’s product sheet for the BJX series. Please confirm the final configuration with our engineers before ordering.
