BKG Series · LIGHTING SWITCH

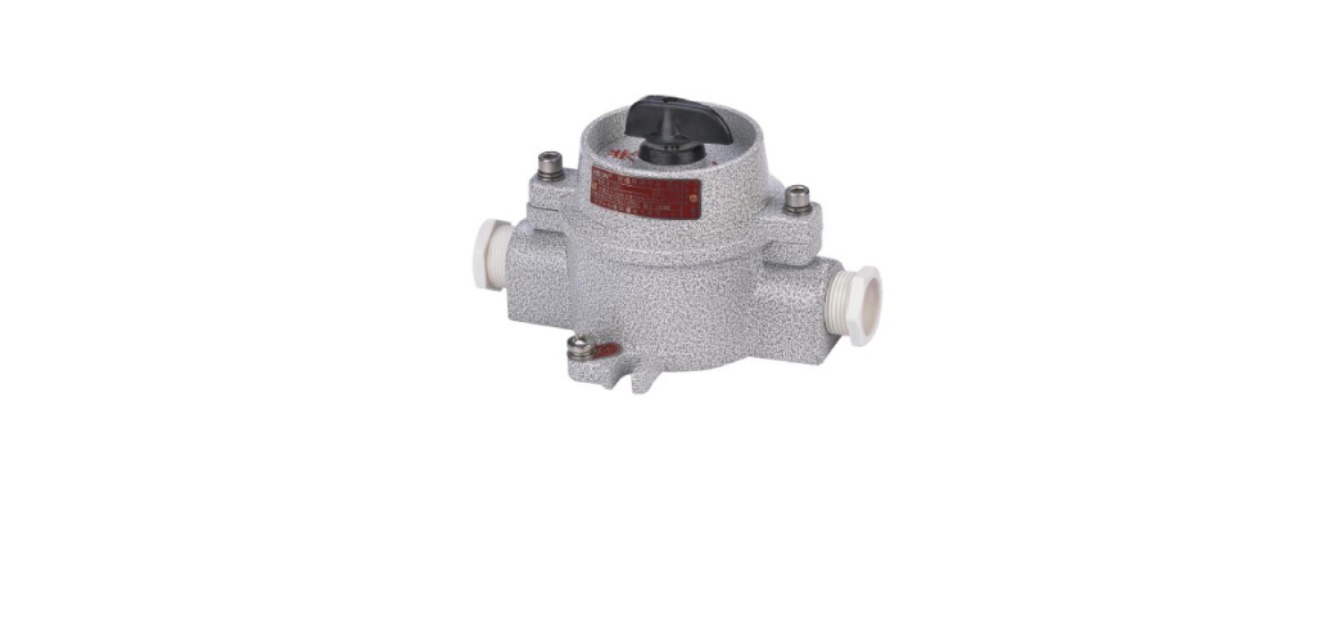

BKG Series Explosion-Proof Lighting Switch
The BKG series explosion-proof lighting switch provides switched power for lighting and small loads in hazardous areas.
- Ex db eb IIB T6 Gb
- Ex tb IIIB T80°C Db
- Ex markingEx db eb IIB T6 Gb; Ex tb IIIB T80°C Db
- EnclosureDie-cast aluminium alloy, powder-coated
- InterlockPlug insert/withdraw only when de-energized
- IndicationOn/off indication on the socket
Overview
The BKG series explosion-proof lighting switch provides switched power for lighting and small loads in hazardous areas. The die-cast aluminium enclosure carries an interlocked socket: the plug can only be inserted or withdrawn when the circuit is de-energized, and the socket gives a clear on/off indication. Ratings cover 16 A to 63 A in 1P+N+PE, 3P+PE and 3P+N+PE configurations.
Key features
- Die-cast aluminium alloy enclosure with high-pressure electrostatic powder coating and stainless steel exposed fasteners
- On/off indication on the socket
- Interlock between socket and plug: the plug can only be inserted or withdrawn when de-energized
- Entry/exit threads: G3/4 / G1 1/4
- Rated voltage (V): 220–250, 380–415
- Rated current (A): 16, 32, 63
- Poles: 1P+N+PE, 3P+PE, 3P+N+PE (32 A)

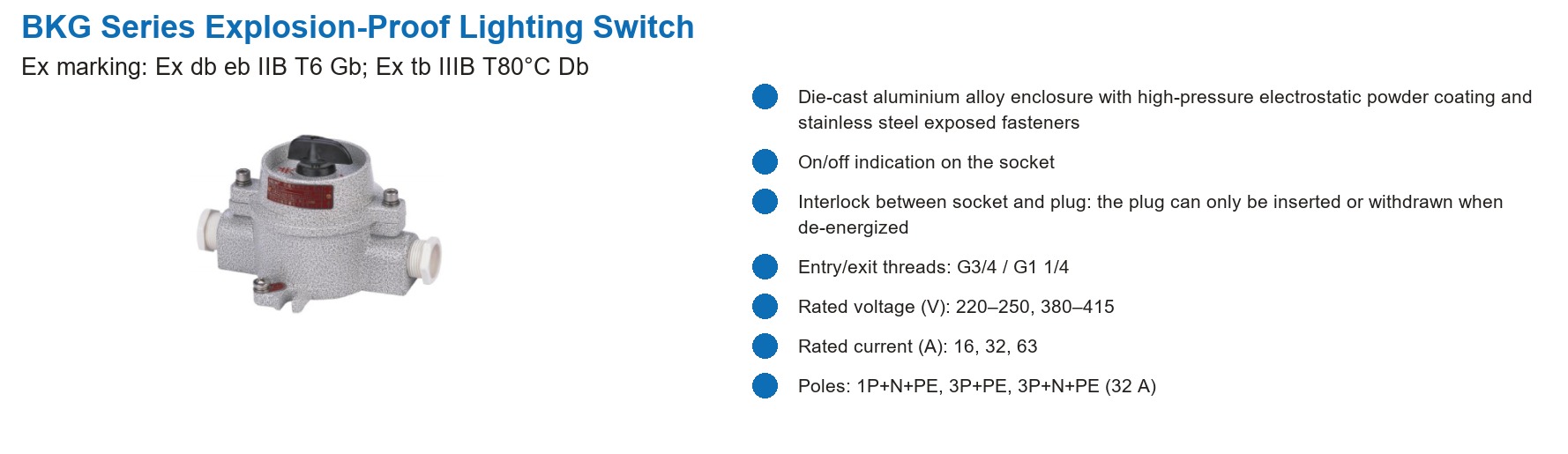

Indicative specification
| Ex marking | Ex db eb IIB T6 Gb; Ex tb IIIB T80°C Db |
|---|---|
| Enclosure | Die-cast aluminium alloy, powder-coated |
| Interlock | Plug insert/withdraw only when de-energized |
| Indication | On/off indication on the socket |
| Entry/exit threads | G3/4 / G1 1/4 |
| Rated voltage | 220–250 V, 380–415 V |
| Rated current | 16 A, 32 A, 63 A |
| Poles | 1P+N+PE, 3P+PE, 3P+N+PE (32 A) |
Typical applications
- Lighting circuits in Zone 1 and Zone 2
- Switched power for portable loads
- Interlocked socket duty with on/off indication
- Indoor and outdoor process areas
Need a quotation for the BKG series? Send us your specification — model, ratings, entry threads and area classification — and our engineers will confirm the configuration and prepare the quotation.
Technical data is reproduced from the manufacturer’s product sheet for the BKG series. Please confirm the final configuration with our engineers before ordering.
